6
Connector SFP/LC
Interface standard 802.3, 802.3u, and 802.3ab
Operating mode 100 Mbps, full duplex
Interface LEDs

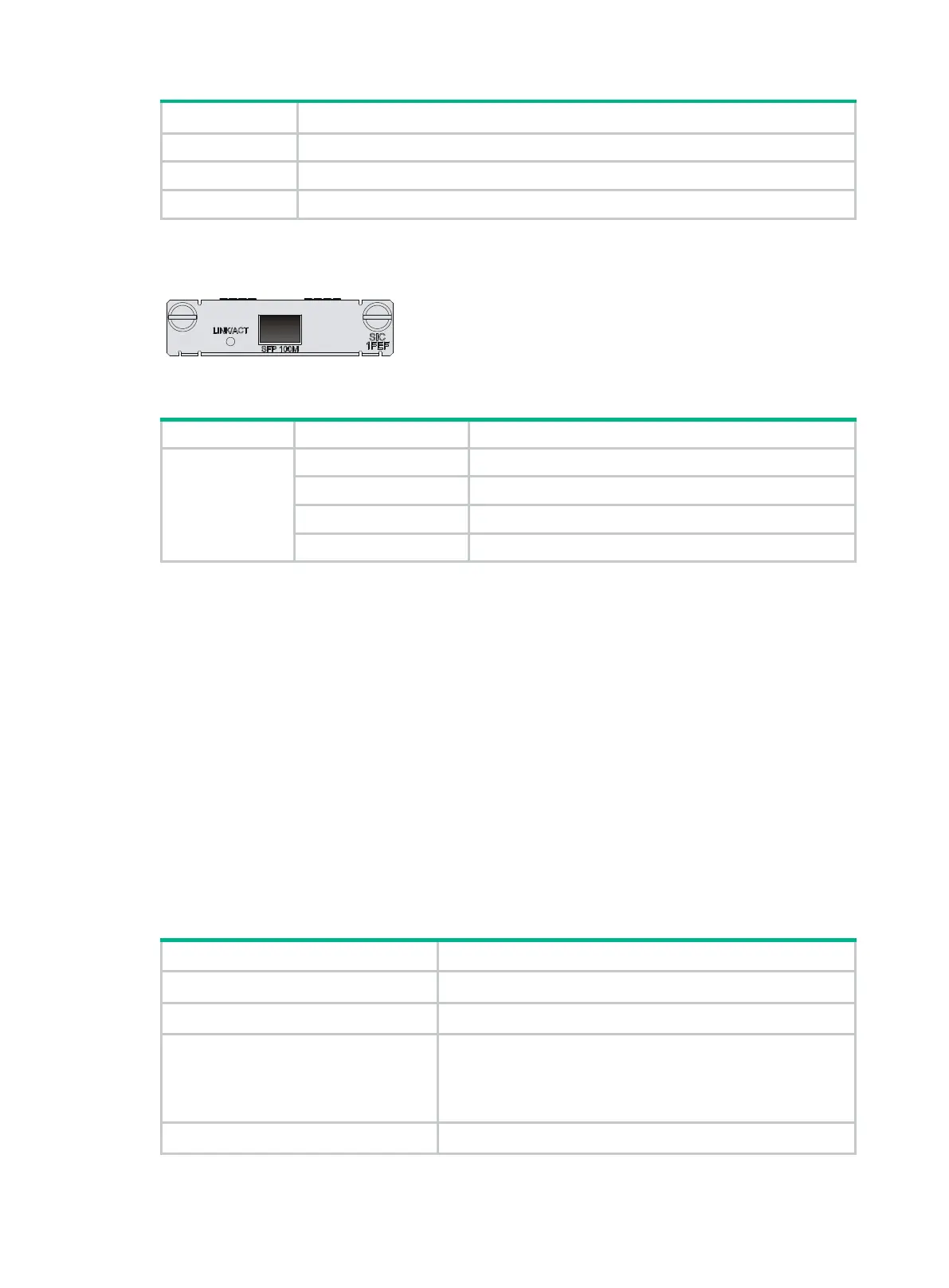

Figure 9 SIC-1FEF panel
Table 11 LED description
LINK/ACT
Off No link is present.
Steady green A link is present.
Flashing green Data is being received and transmitted at 100 Mbps.
Steady yellow Information detection failed.
Fiber ports, optical fibers, and the connection methods
For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."
SIC-1GEC-V2/SIC-1GEC-H3
Introduction
The 1-port 10/100/1000 Mbps copper and fiber Ethernet interface module
SIC-1GEC-V2/SIC-1GEC-H3 provides the following features:
• Receipt, transmission and processing of GE data stream.
• CE copper and fiber interface access.
• 1000/100/10 Mbps on the copper interface.
• 1000 Mbps on the fiber interface.
Interface specifications
Table 12 Interface specifications
Connector RJ-45
Interface type MDI
Frame format
• Ethernet_II
• Ethernet_SNAP
• IEEE 802.2
• IEEE 802.3
Operating mode 10/100/1000 Mbps autosensing, full/half duplex
