Item
Specification
MIM-8ASE module
MIM-16ASE module
Cable
• AUX cable
• Ethernet straight-through cable
• MIM-8ASE/MIM-16ASE dumb terminal cable
Minimum baud rate (bps) 300
Maximum baud rate (bps) 115.2 k
Supported services
• Dialup through Modem
• Backup
• Terminal access service
• Asynchronous leased line service
Interface LEDs

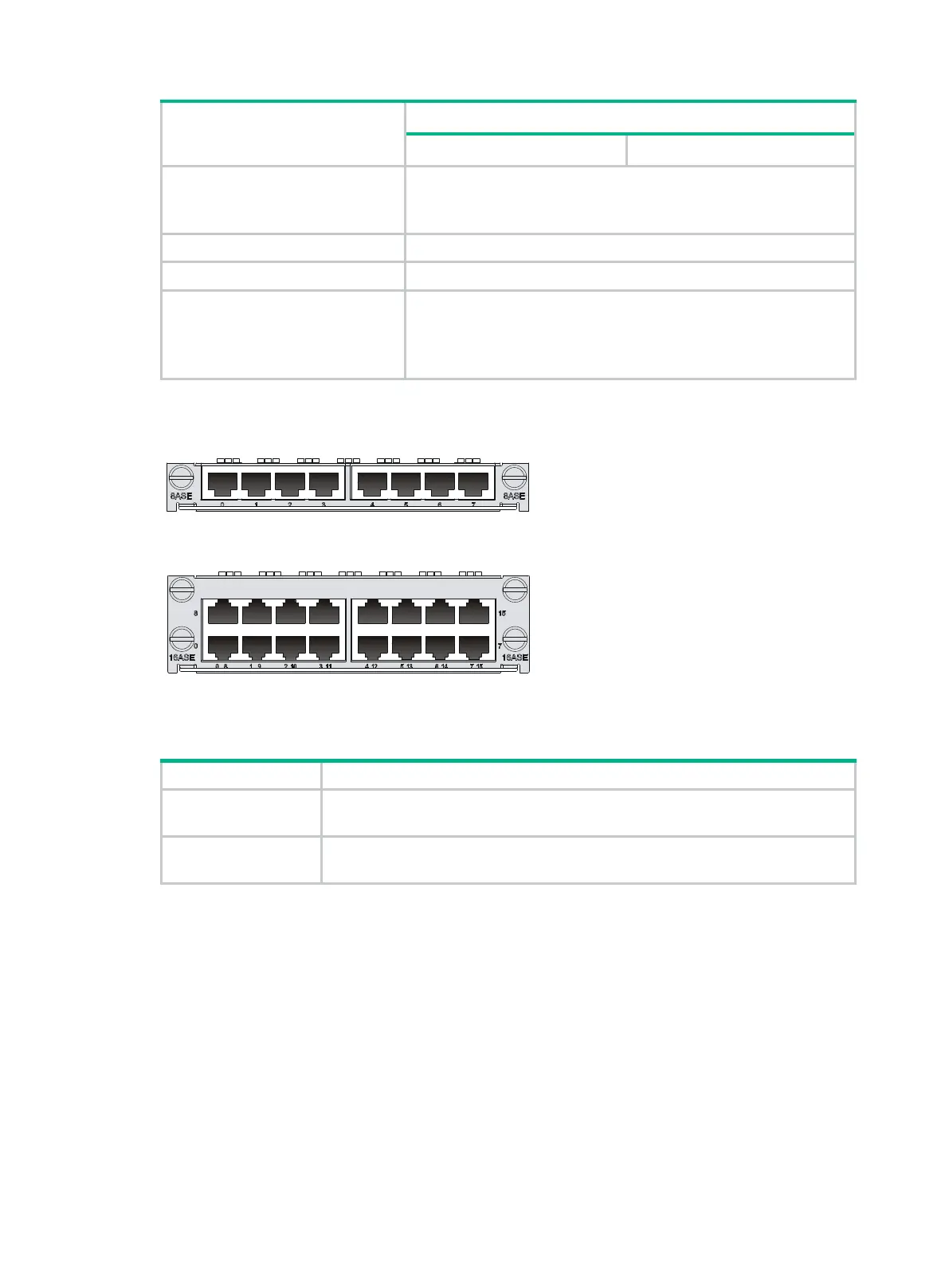

Figure 74 MIM-8ASE panel
Figure 75 MIM-16ASE panel
Each channel on the MIM-8ASE/MIM-16ASE has only one LED.
Table 106 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACTIVE
• Off means no data is being transmitted or received.
• Flashing means data is being transmitted or received.
Interface cables and connection methods
For more information about asynchronous serial port cables, see "Asynchronous serial ports."
Voice interface module
• MIM-2FXO
• MIM-4FXS
• MIM-4FXO
• MIM-16FXS
• MIM-4E&M
• MIM-4BSV
