HPE FlexNetwork MSR Series Guide

14
Item
Specification
Interface standard RS232
Minimum baud rate 300 bps
Maximum baud rate 115.2 Kbps
Supported services
• Modem dial-up
• Backup
• Terminal access service
• Asynchronous dedicated line
Interface LEDs

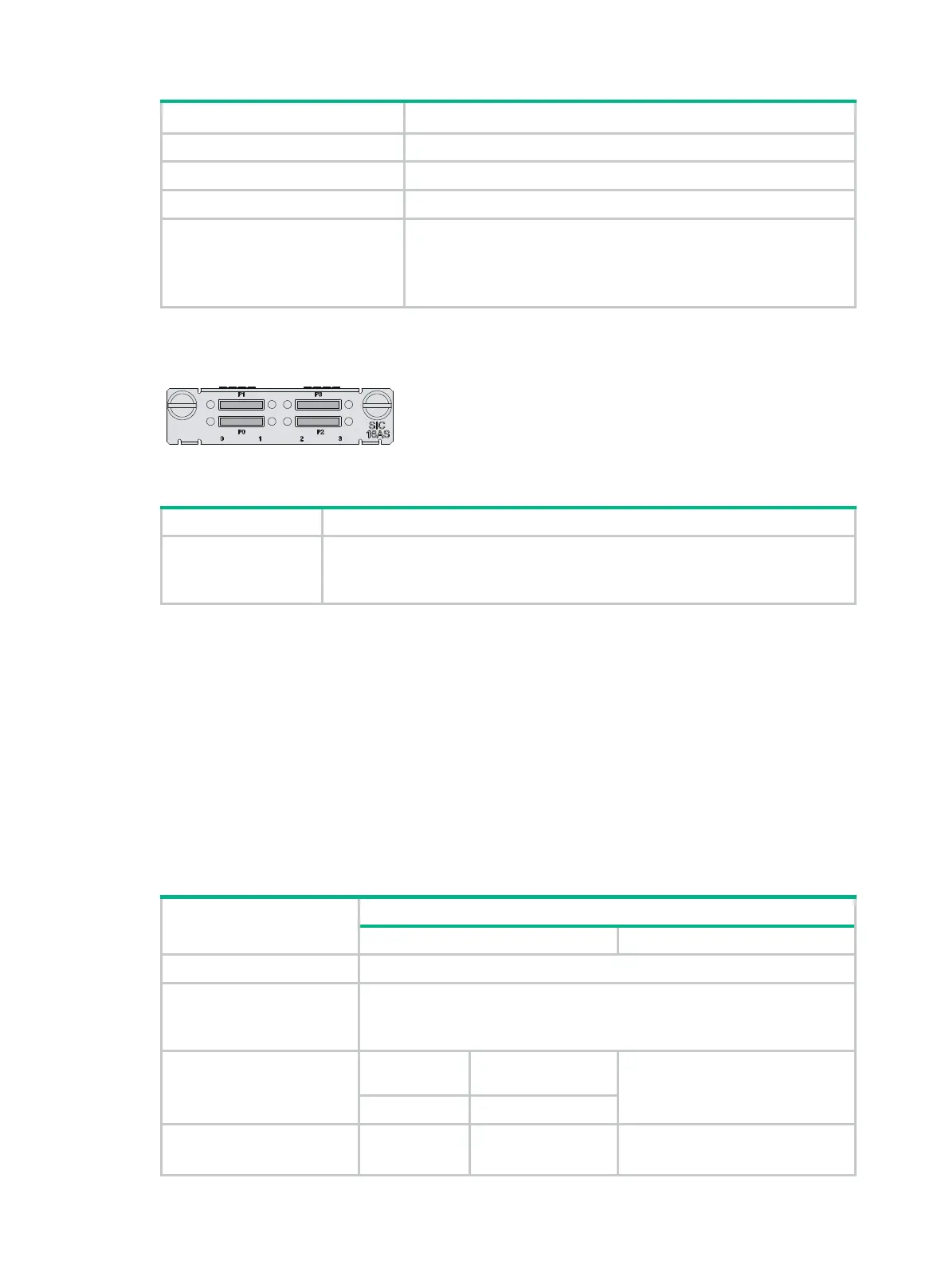

Figure 17 SIC-16AS panel
Table 26 LED description
LED
Description
LINK/ACT
• Off means no link is present;
• On means a link is present.
• Flashing means data is being received or/and transmitted.
Interface cables and connection methods
For more information about asynchronous serial port cables, see "Asynchronous serial ports."
SIC-1SAE/SIC-2SAE/SIC-4SAE
Introduction
The 1-port/2-port/4-port enhanced high-speed synchronous/asynchronous serial interface module
(SIC-1SAE/SIC-2SAE/SIC-4SAE) provides features similar to SA, but its serial interfaces support
additional protocols, such as RS449, X.21, and RS530.
Interface specifications
Table 27 Interface specifications
Item
Specification
Synchronous
Asynchronous
Connector D28
Number of connectors
• 1 (SIC-1SAE)
• 2 (SIC-2SAE)
• 4 (SIC-4SAE)
Interface standard and
operating mode
V.24
V.35, RS449, X.21,
RS530
RS232
DTE, DCE DTE, DCE
Minimum baud rate
(bps)
1200 1200 300
