HPE FlexNetwork MSR Series Guide

85
• HMIM-4T1-F
• HMIM-8E1T1
• HMIM-8E1T1-F
HMIM-2E1/HMIM-4E1/HMIM-4E1-F
Introduction
The 2-port channelized E1/PRI interface module (HMIM-2E1) and 4-port channelized E1/PRI
interface module (HMIM-4E1) transmit, receive, and process E1 data traffic. In addition, you can use
these modules for CE1 access and ISDN PRI.
The HMIM-4E1-F module is different from the HMIM-4E1 module in the following ways:
• The FE1 operating mode supported by the E1-F module allows only one n × 64 Kbps bundle to
be formed on each interface, where the value range of n is 1 to 31. However, an E1 module
allows arbitrary grouping of 31 channels and multiple bundles.
• The E1-F modules do not support the PRI mode.
Interface specifications
Table 135 Interface specifications
Item
HMIM-2E1/HMIM-2E1-F
HMIM-4E1/HMIM-4E1-F
Connector type DB15 DB25
Number of
connectors
2 1
Interface
standard
G.703 and G.704
Interface rate 2.048 Mbps
Cable type
• E1 75-ohm unbalanced coaxial cable
• E1 120-ohm balanced twisted pair cable
• 120-ohm 4E1 conversion cable (only supported by the HMIM-4E1/HMIM-4E1-F)
• 75-ohm 4E1 conversion cable (only supported by the HMIM-4E1/HMIM-4E1-F)
• Coaxial connector, network interface connector, and 75-ohm to 120-ohm adapter
(with BNC connector)
Operating mode
• E1, CE1, ISDN PRI (only supported by the HMIM-2E1/HMIM-4E1)
• FE1 (only supported by the HMIM-4E1-F)
Supported
services
• Backup
• Terminal access service
• ISDN PRI (only supported by the HMIM-2E1/HMIM-4E1)
Interface LEDs

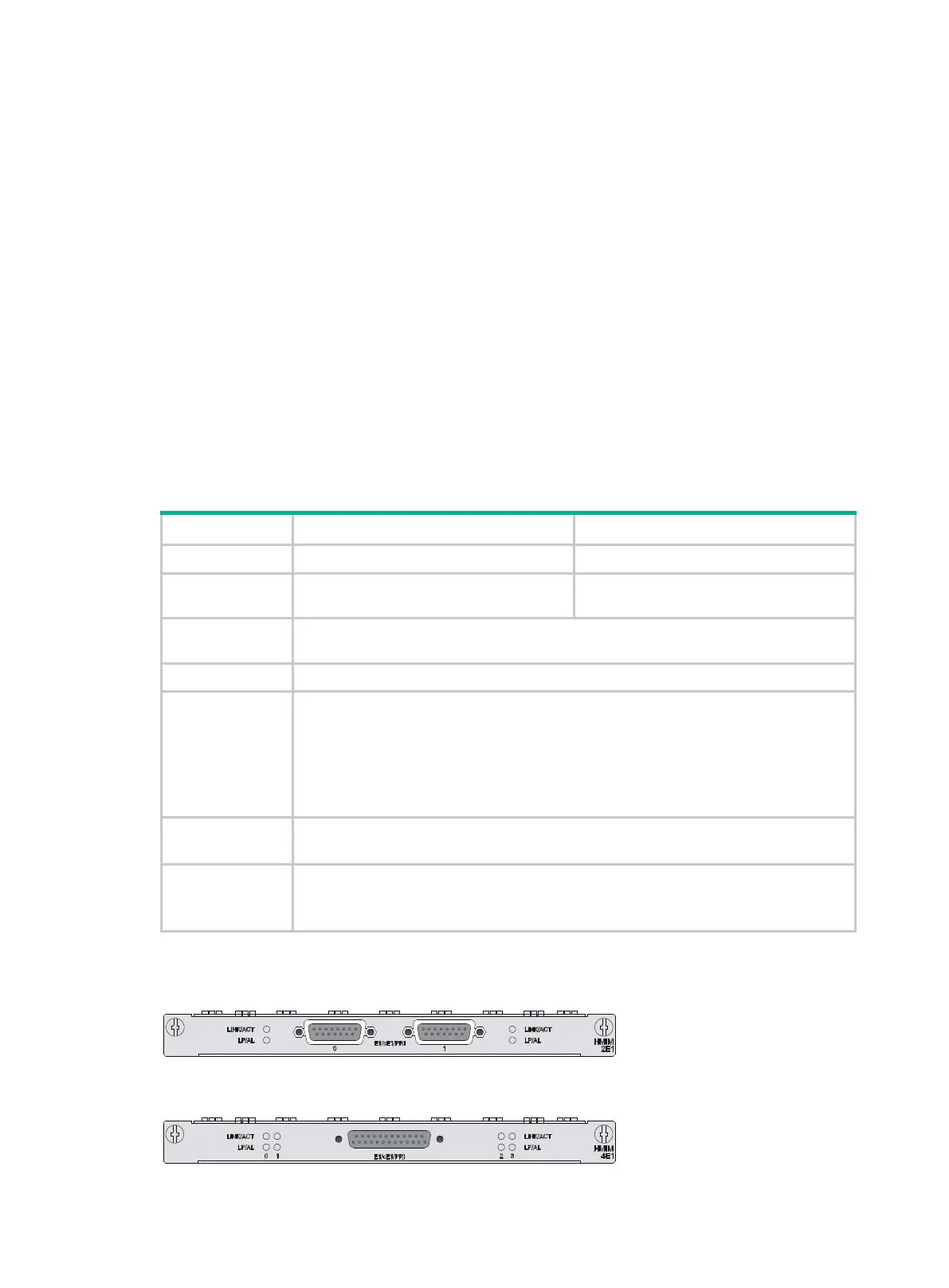

Figure 98 HMIM-2E1 panel
Figure 99 HMIM-4E1 panel
