HPE FlexNetwork MSR Series Guide

132
FIC-24FXS
Introduction
The 24-port voice subscriber circuit interface module (FIC-24FXS) processes and transmits voice
signals over data communications networks for 24 regular analog phones, faxes, or AT0 loop trunks
of telephone exchanges.
Interface specifications
Table 212 Interface specifications
Item
Description
Connector 50-pin D-type female connector
Interface standard FXS interface
Interface rate 24 × FXS interface rate
Interface LEDs
Table 213 LED description
LED
Description
LINK
• Off means no link is present.
• On means a link is present.
ACT
• Off means the channel is idle.
• On means there is call activity.

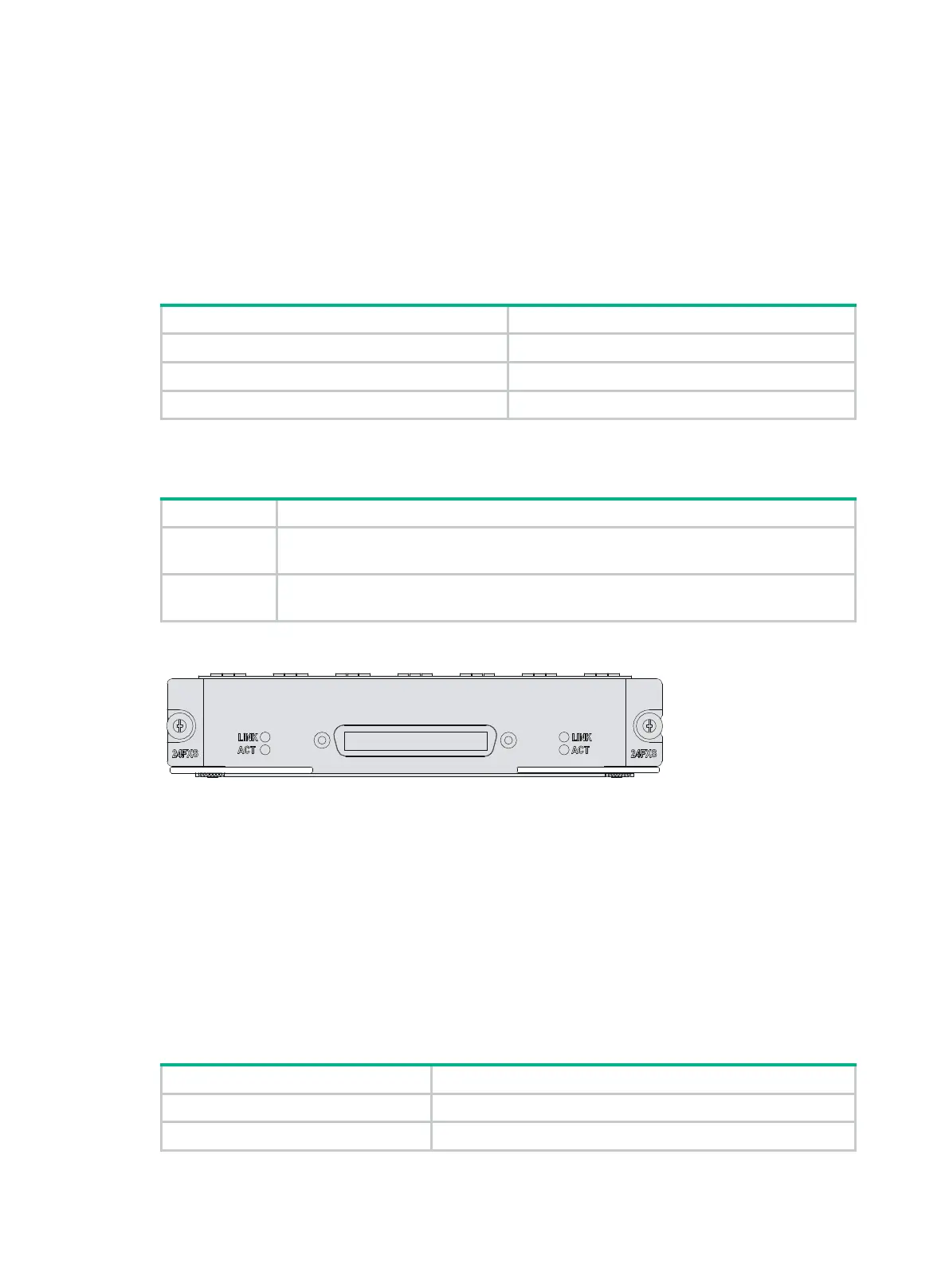

Figure 156 FIC-24FXS front panel
Interface cables and connection methods
For more information about 24FXS interface cables and connection methods, see "24FXS interface."
FIC-2VE1
Introduction
The 2-port E1 voice interface module (FIC-2VE1) handles dense voice signals in a VoIP system. It
provides two CE1/PRI/R2 ports that provide access for a maximum of 60 channels of voice signals.
Interface specifications
Table 214 Interface specifications
Item
Specification
Connector D15
Number of connectors 2
