HPE FlexNetwork MSR Series Guide

48

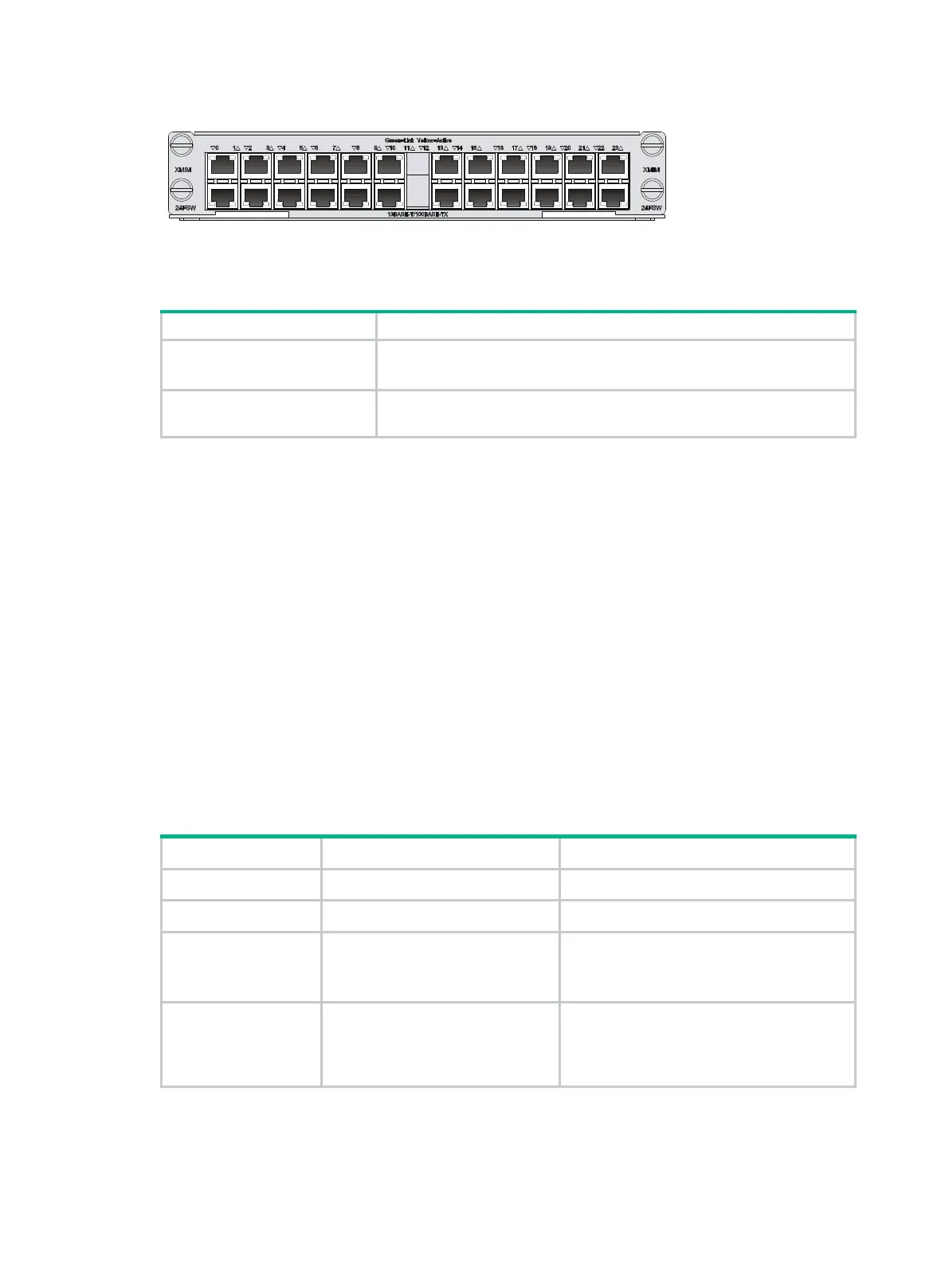

Figure 47 XMIM-24FSW panel
Each 10/100 Mbps Ethernet interface on the panel has two LEDs.
Table 72 LED description
LED status
Description
Green LED (LINK)
• On: A link is present.
• Off: No link is present.
Yellow LED (ACT)
• Flashing: Data is being received and sent on the port.
• Off: No data is being received or sent on the port.
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see "Ethernet
interface."
MIM-16FSW/MIM-16FSW-PoE/DMIM-24FSW/DMIM-24FS
W-PoE
Introduction
The 16/24-port 10/100 Mbps Ethernet Layer 2 switching MIM interface modules
(MIM-16FSW/MIM-16FSW-PoE and DMIM-24FSW/DMIM-24FSW-PoE) are applicable to MSR30
series routers. A router installed with MIM-16FSW or DMIM-24FSW can work as a switching and
routing integrated device on a small-sized enterprise network to connect PCs and network devices
inside the network. The MIM-16FSW-PoE/DMIM-24FSW-PoE can supply power to PDs through
PoE.
Interface specifications
Table 73 Interface specifications
Item
MIM-16FSW/MIM-16FSW-PoE
DMIM-24FSW/DMIM-24FSW-PoE
Connector RJ-45 RJ-45 + SFP fiber port
Interface type MDI/MDIX MDI/MDIX + SFP fiber port
Number of connectors 16 × 100 Mbps RJ-45 connector
• 24 × 100 Mbps RJ-45 connector
• 2 × 1000 Mbps RJ-45 connector
• 2 × SFP connectors
Transmission distance
100 m (328.08 ft) over category-5
twisted pair cables (both crossover
and straight-through)
100 m (328.08 ft) over category-5 twisted
pair cables (both crossover and
straight-through)
Fiber interface supports SFP fiber module
