HPE FlexNetwork MSR Series - Page 55

49
Item
MIM-16FSW/MIM-16FSW-PoE
DMIM-24FSW/DMIM-24FSW-PoE
Operating mode
10/100 Mbps autosensing, full/half
duplex
• 24 × 100 Mbps copper port: 10/100
Mbps autosensing
• 2 × GE copper port: 10/100/1000 Mbps
autosensing
• 2 × GE fiber port: GE SFP fiber port
Interface LEDs

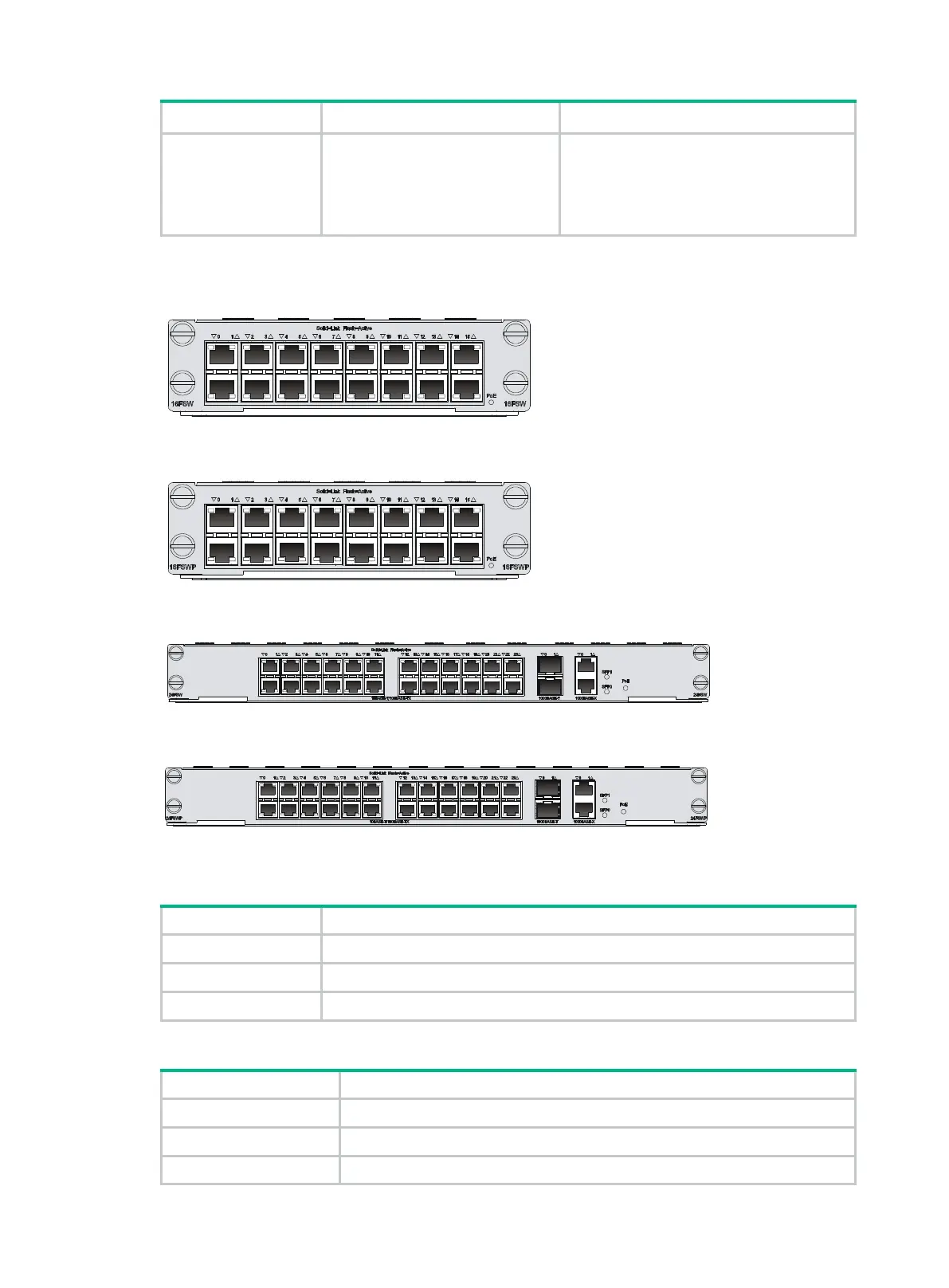

Figure 48 MIM-16FSW panel
Figure 49 MIM-16FSW-PoE panel
Figure 50 DMIM-24FSW panel
Figure 51 DMIM-24FSW-PoE panel
Table 74 Description for the MIM-16FSW/MIM-16FSW-PoE/DMIM-24FSW/DMIM-24FSW-PoE
FE LEDs
LED status
Description
Steady green A link is present, but no data is being transmitted and received.
Off No link is present.
Flashing green A link is present and data is being transmitted and received (ACT).
Table 75 Description for the DMIM-24FSW/DMIM-24FSW-PoE GE interface LEDs
LED status
Description
Off No link is present.
Steady green A gigabit link is present, but no data is being transmitted and received.
Flashing green A gigabit link is present and data is being transmitted and received (ACT).
