LED
Description
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or transmitted.
Interface cables and connection methods
For more information about T1 interface cables and connection methods, see "T1 interface."
FIC-1AE3
Introduction
The 1-port 34 Mbps ATM-E3 interface module (FIC-1AE3) provides the following features:
• Two ATM cell mapping modes: ATM direct mapping (ADM) and physical layer convergence
protocol (PLCP).
• Scrambling in data transmission.
• Line clock (when working as DTE interface) and internal clock (when working as DCE
interface).
• Four types of test measures: local cell loopback, local loopback, remote payload loopback, and
remote line loopback.
Interface specifications
Table 181 Interface specifications
Item
Specification
Connector SMB
Number of connectors 2
Interface standard G.703, G.751, G.832, G.823
Interface rate 34.368 Mbps
Interface cable E3/T3 cable (75-ohm coaxial cables)
Supported services
ATM traffic CBR (constant bit rate), rt_VBR (variable bit rate-real time),
nrt_VBR (variable bit rate-non real time), UBR (unspecified bit rate)
Interface LEDs

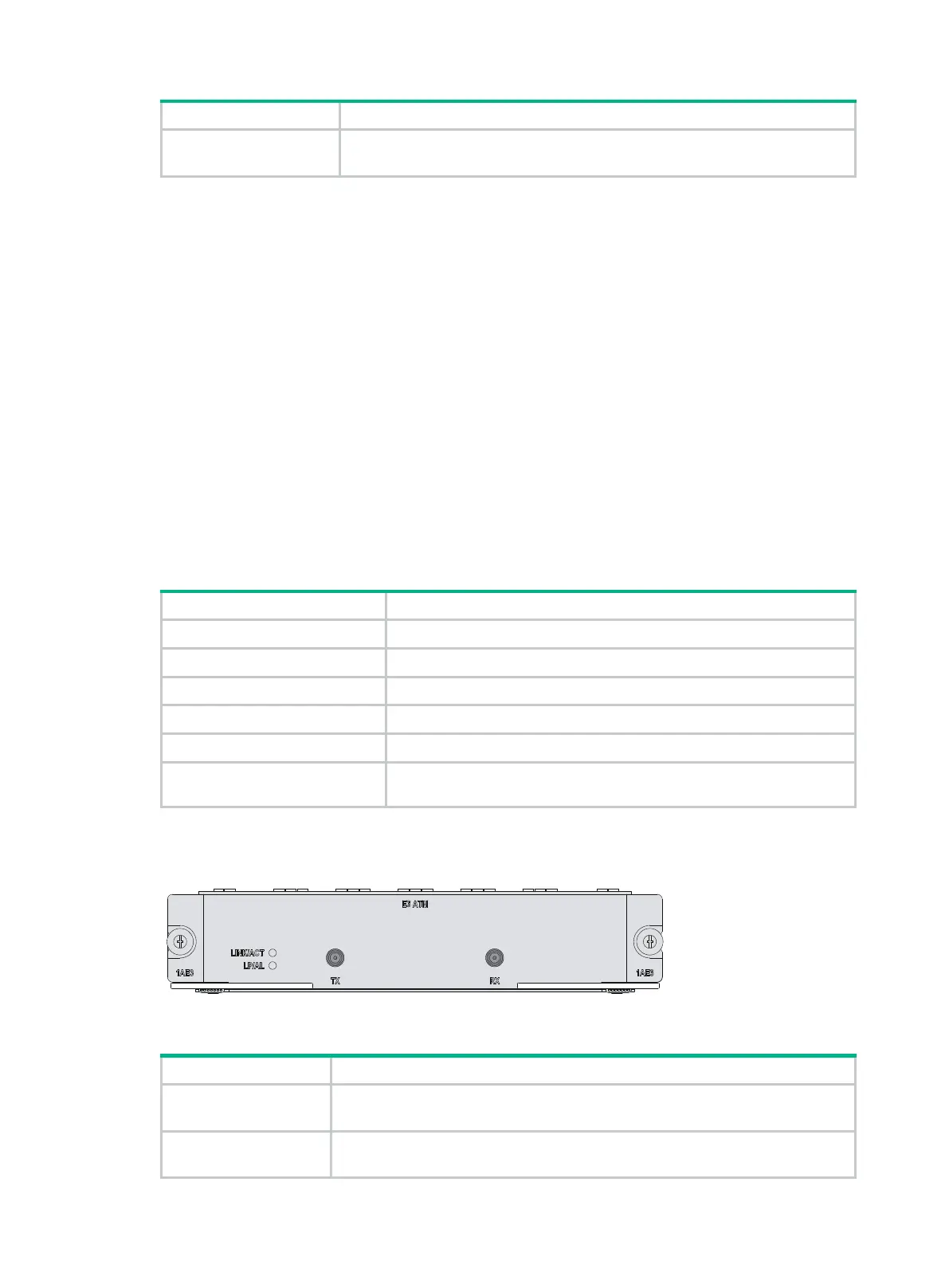

Figure 135 FIC-1AE3 panel
Table 182 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or/and transmitted.
