HPE FlexNetwork MSR Series Guide

94
Item
Specification
Supported services T3 leased line
Interface LEDs

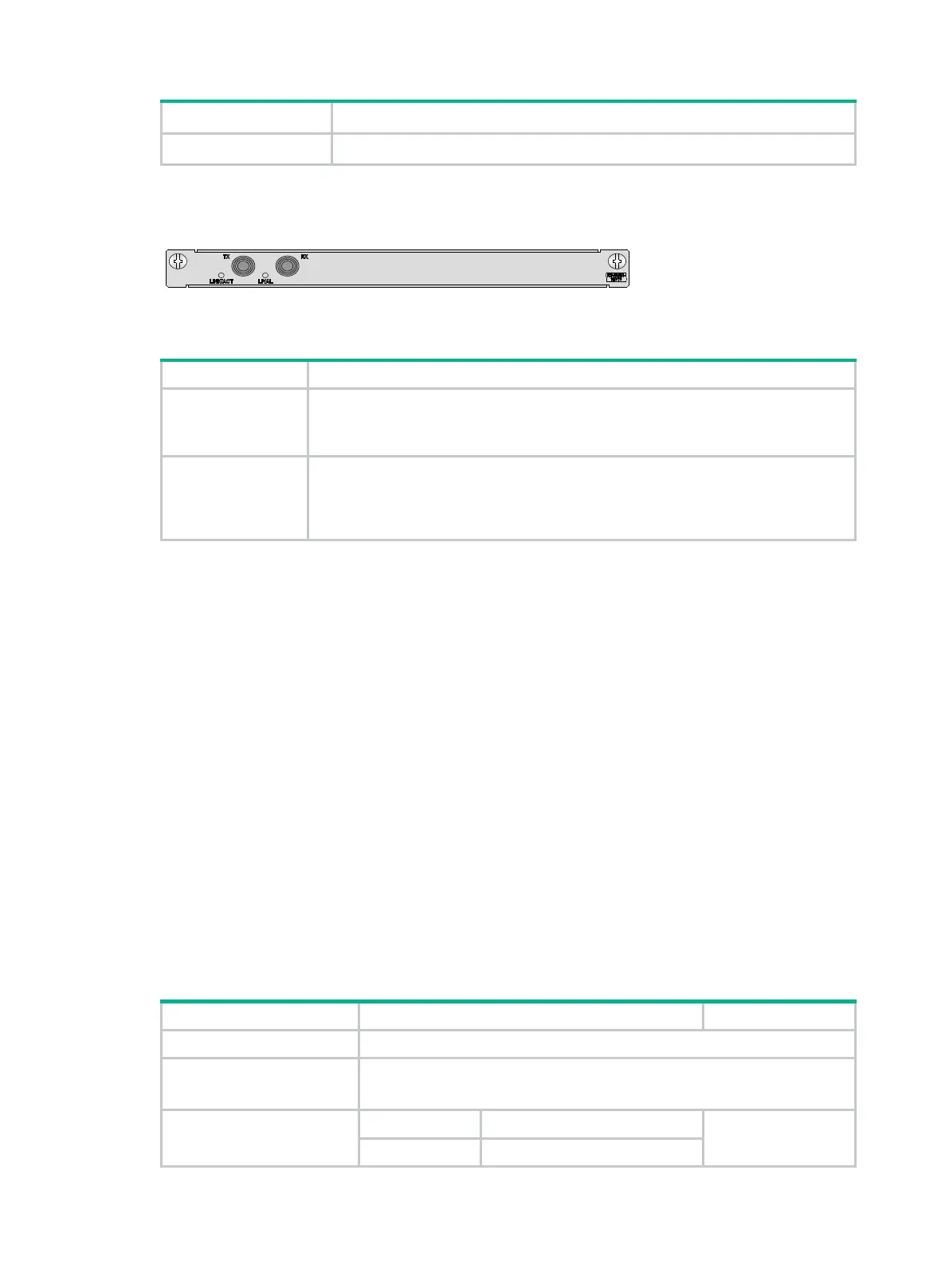

Figure 110 HMIM-1E3T3 panel
Table 147 LED description
LED
Description
LINK/ACT
• On: Carrier signal has been received.
• Flashing: Data is being received or/and transmitted.
• Off: No carrier signal has been received.
LP/AL
• On: The interface is in a loopback.
• Off: No loopback or alarm is present.
• Flashing: An alarm indication signal (AIS), loss of frame alignment (LFA) signal,
or remote alarm indication (RAI) alarm is present.
Interface cables and connection methods
For information about T3 interface cables and connection methods, see "E3/T3 interface."
Serial interface module
• HMIM-4SAE
• HMIM-8SAE
• HMIM-16ASE
HMIM-4SAE/HMIM-8SAE
Introduction
The 4-port SAE module (HMIM-4SAE) and 8-port SAE module (HMIM-8SAE) are enhanced
high-speed synchronous/asynchronous serial interface modules. The SAE modules are the same as
the SA modules except that the SAE modules support additional protocols, for example, RS449,
X.21, and RS530.
Interface specifications
Table 148 Interface specifications
Item
Synchronous
Asynchronous
Connector type D28
Number of connectors
4 (HMIM-4SAE)
8 (HMIM-8SAE)
Interface standard and
operating mode
V.24 V.35, RS449, X.21, and RS530
RS232
DTE and DCE DTE and DCE
