HPE FlexNetwork MSR Series Guide

10
LED
Description
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about E1 interface cables, see "E1 interface."
SIC-EPRI/SIC-1EPRI
Introduction
The 1-port E1/CE1/PRI SIC interface module (SIC-EPRI/SIC-1EPRI) provides the following
features:
• Transmission/Receiving and handling of E1 data streams.
• CE1 (channelized E1) access.
• ISDN PRI.
• Remote loopback and local loopback functions, facilitating fault test and location.
Interface specifications
Table 19 Interface specifications
Item
Specification
Connector type D15
Number of connectors 1
Interface standard G.703, G.704
Interface rate 2.048 Mbps
Cable type
75-ohm unbalanced coaxial cable (D15 to BNC)
Coaxial connector, network interface connector, and 75-to-120-ohm
adaptor (with BNC connector)
Operating modes
E1
CE1
ISDN PRI
Supported services
Backup
Terminal access
ISDN
Interface LEDs

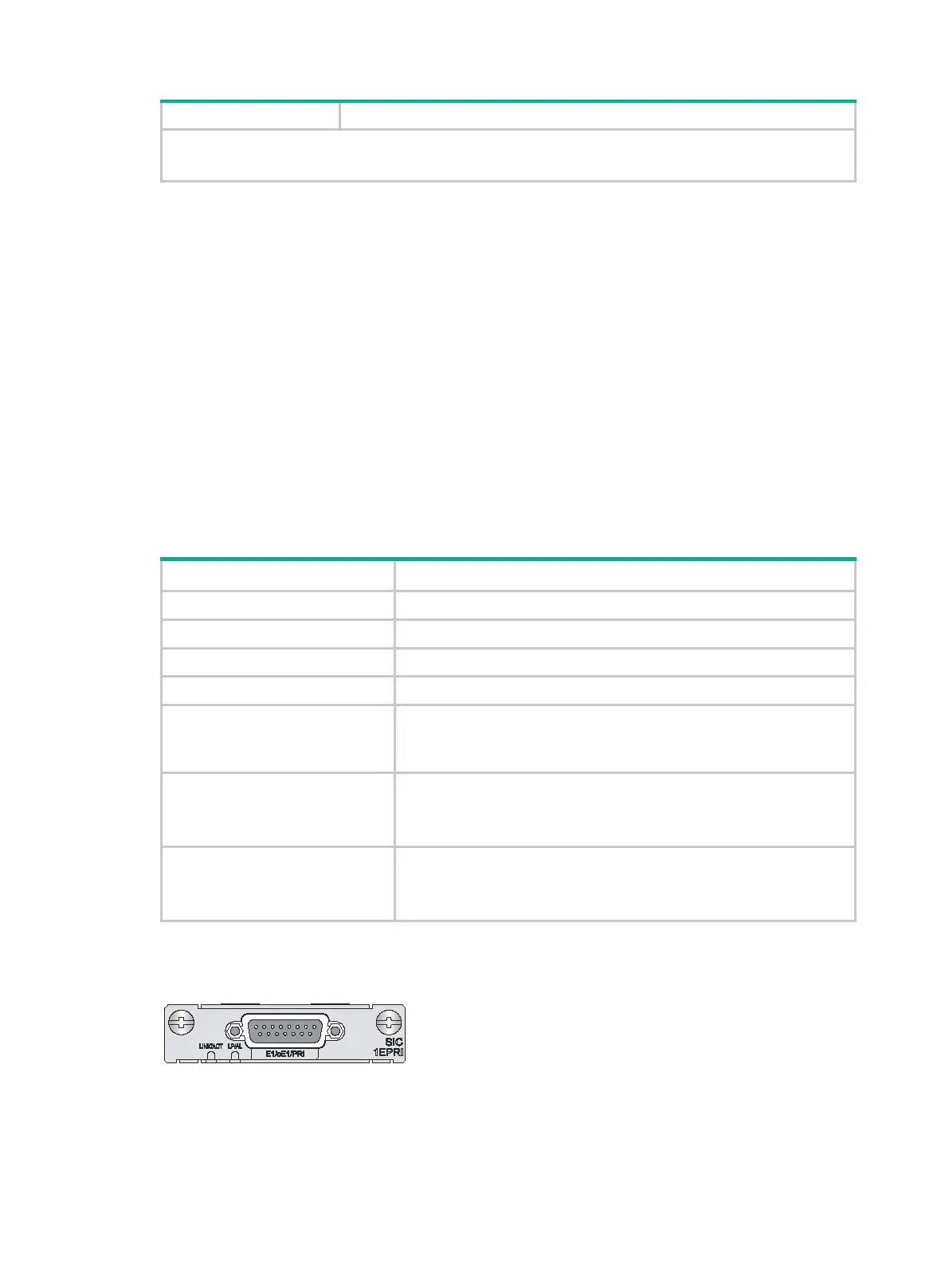

Figure 14 SIC-EPRI/SIC-1EPRI panel
