Table 110 LED description
LED
Description
LINK
• Off means no link is present.
• On means a link is present.
ACT
• Slowly flashing means data is being transmitted or received on B1 channel.
• Fast flashing means data is being transmitted or received on B2 channel.
• Steady On means data is being transmitted or received on both B1 and B2
channels.
• Steady Off means no data is being transmitted or received.
Interface cables and connection methods
For more information about BSV interface cables and connection methods, see "BSV/BSE
interface."
MIM-2FXO and MIM-4FXS/MIM-4FXO
Introduction
The MIM-2FXO and MIM-4FXS/MIM-4FXO modules transfer voice signals over data communication
networks.
• The 4-port voice subscriber circuit interface module (MIM-4FXS) can provide access for and
process 2/4 channels of ordinary analog phone, fax, or AT0 loop trunk of telephone exchange.
• The 2/4-port voice AT0 analog trunk interface module (MIM-2FXO/MIM-4FXO) can provide
access for and process 2/4 channels of common user lines of telephone exchange.
Interface specifications
Table 111 Interface specifications
Item
Specification
Connector RJ-45
Number of connectors
• 2 (MIM-2FXO module)
• 4 (MIM-4FXS/MIM-4FXO module)
Cable
• Telephone cable with ferrite core
• E&M trunk (for E&M module, which should be made by users
depending on the actual needs at the site.)
Interface standard
• ITU Q.512-compliant subscriber circuit interface (MIM-4FXS)
• ITU Q.552-compliant loop trunk interface (MIM-2FXO/MIM-4FXO)
• ITU K.20-compliant overcurrent and overvoltage protection
Dial-up mode DTMF (Dual-Tone Multi-Frequency) but not pulse dial-up
Bandwidth 300 Hz to 3400 Hz
Interface LEDs

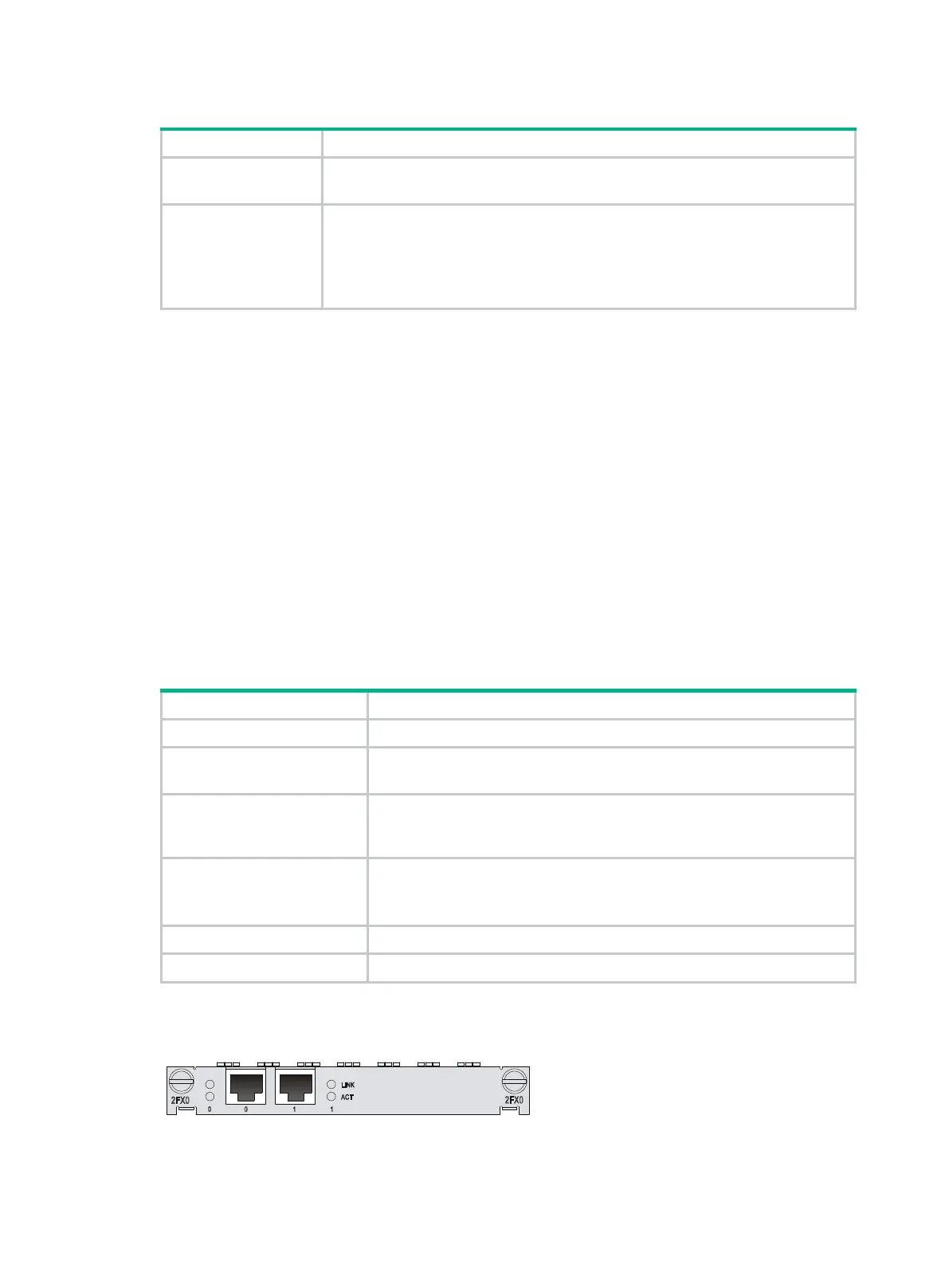

Figure 78 MIM-2FXO panel
