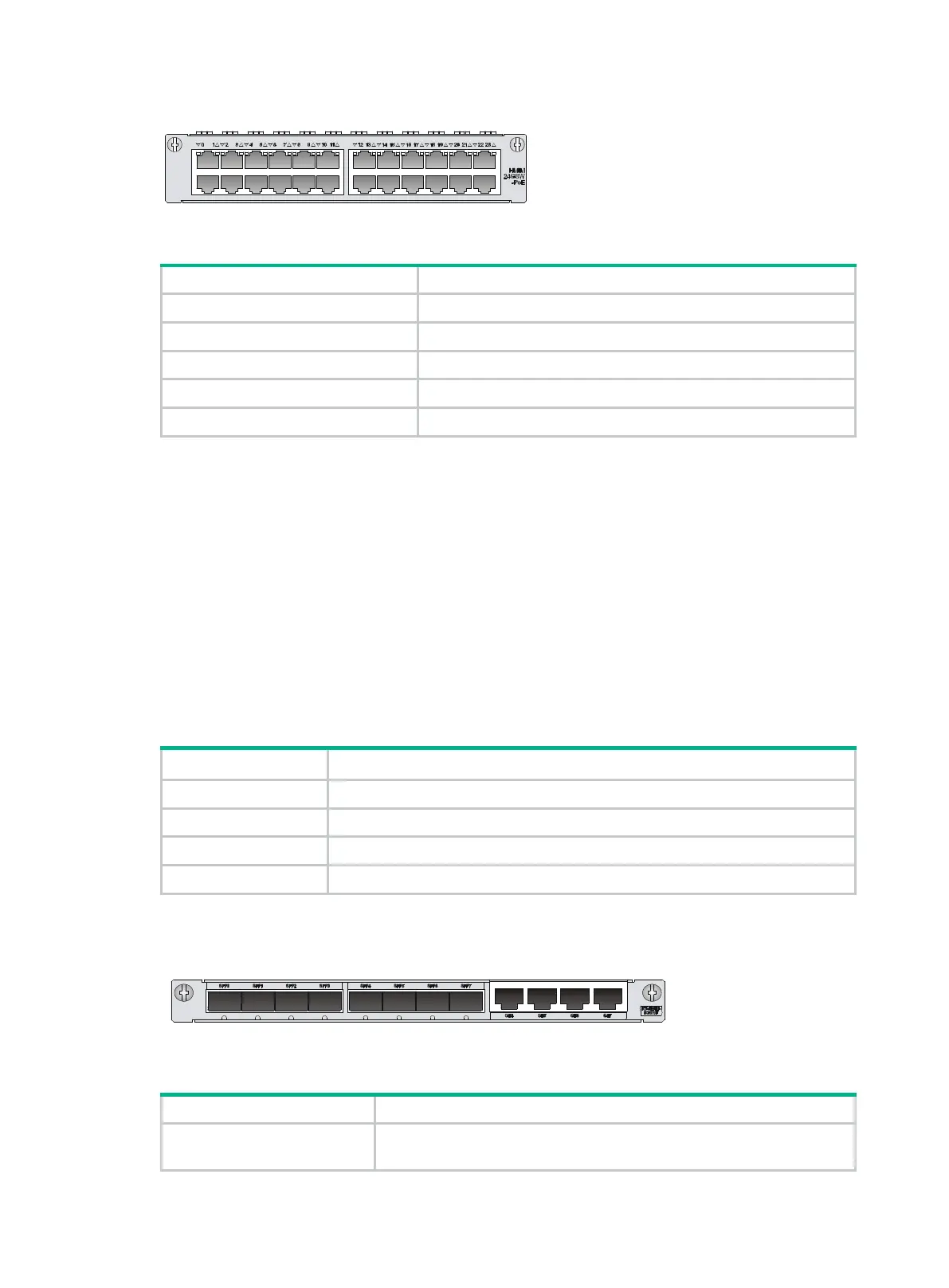

Figure 88 HMIM-24GSW-PoE panel
Table 124 LED description
Off No link is present.
Steady green A 1000 Mbps link is present.
Flashing green The interface is sending or receiving data at 1000 Mbps.
Steady yellow A 10/100 Mbps link is present.
Flashing yellow The interface is sending or receiving data at 10/100 Mbps.
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see "Ethernet
interface."
HMIM-8GSWF
Introduction
The 8-port (four fiber ports and four combo interfaces) 100M/1000M Layer 2/Layer 3 Ethernet
interface module (HMIM-8GSWF) is suitable for a small enterprise network to act as a switching &
routing device. It can be directly connected to PCs and network devices of the enterprise.
Interface specifications
Table 125 Interface specifications
Number of connectors 8
Connector type SFP/LC
Interface standard 802.3/802.3u/802.3ab
Operating mode 100/1000 Mbps, full duplex
Interface LEDs
Figure 89 HMIM-8GSWF panel
Table 126 LED description
LINK
• Off means no link is present.
• On means a link is present.
