Number of connectors 2
Interface standard
• G.703
• G.704
• G.752
• AT&T TR 54014
• AT&T TR 62415
• ANSI T1.107
Interface rate 44.736 Mbps
Interface cable type E3/T3 cable (75-ohm coaxial cable)
Operating mode
T3
CT3
Supported service T3 leased line
Interface LEDs

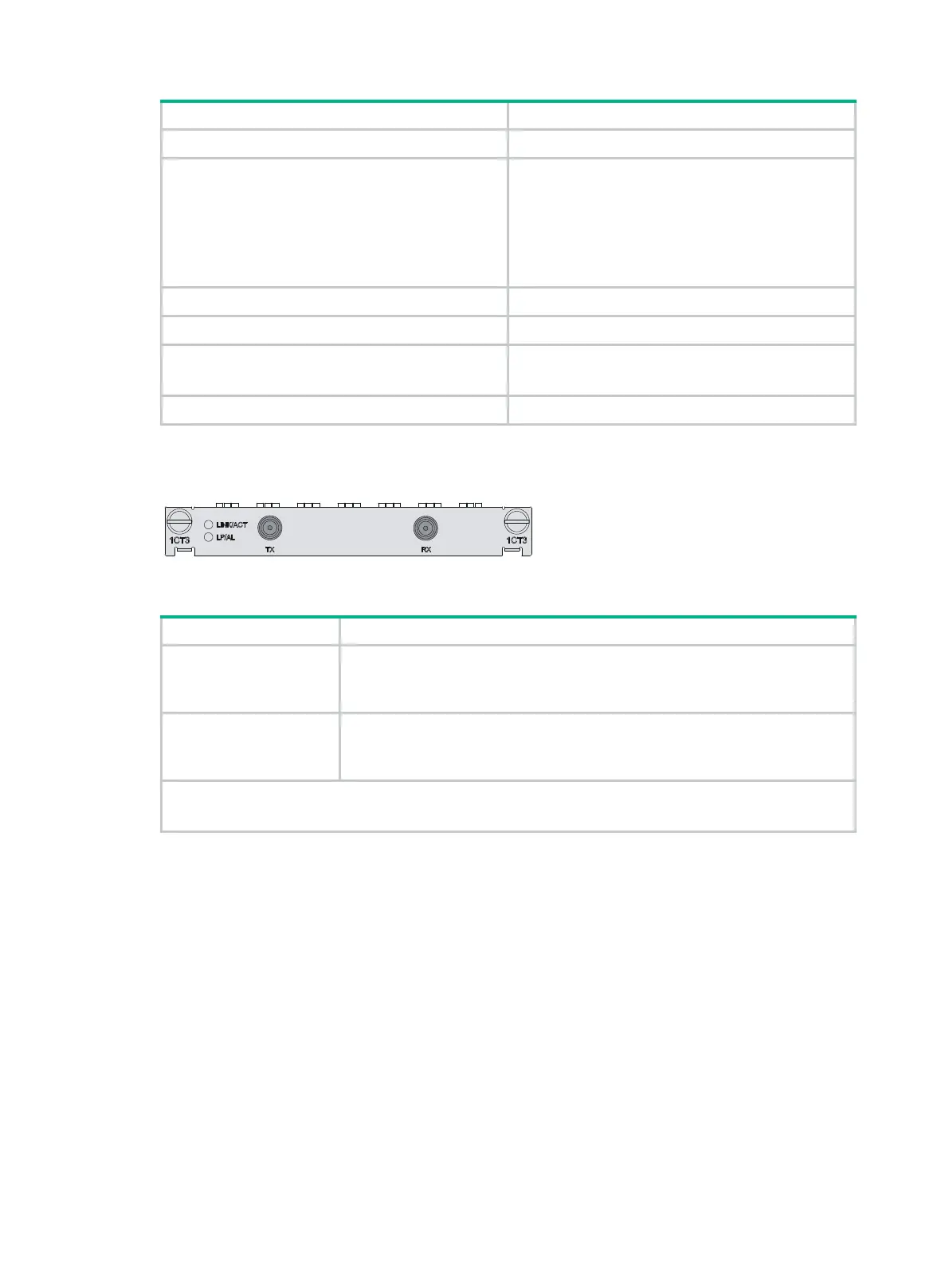

Figure 69 MIM-1CT3 panel
Table 100 LED description
LINK/ACT
• On means the carrier signal has been received.
• Off means no carrier signal has been received.
• Flashing means data is being transmitted or/and received.
LP/AL
• On means the interface is in a loopback.
• Flashing means an AIS, LFA, or RAI alarm signal is present.
• Off means no loopback or alarm is present.
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about T3 interface cables and connection methods, see "E3/T3 interface."
xDSL interface module
• MIM-1SHL-4W
MIM-1SHL-4W
Introduction
The 1-port dual-pair G.SHDSL interface module (MIM-1SHL-4W) uses trellis coded pulse amplitude
modulation (TCPAM) coding and provides symmetric rates up to 4.624 Mbps. The transmission rate
of the interface can automatically adapt to line distances and conditions.
