MIM-16FXS
Introduction
The 16-port loop trunk interface module (MIM-16FXS) provides access for 16 channels of analog
voice signals over data communication networks. The module provides 16 FXS interfaces. FXS
interfaces are analog subscriber line interfaces that provide analog telephone and fax access and
also can connect AT0 loop trunks of exchanges.
Interface specifications
Table 107 Interface specifications
Connector type RJ-11
Number of connectors 16 (FXS interfaces)
Interface standard
Subscriber circuit interface (FXS) compliant with ITU Q.512.
Over-current and over-voltage protection compliant with ITU K.20.
Cable type Telephone cable with ferrite core
Dial-up mode DTMF, compliant with GB3378 (Pulse dial-up is not available.)
Bandwidth 300 to 3400 Hz
Interface LEDs

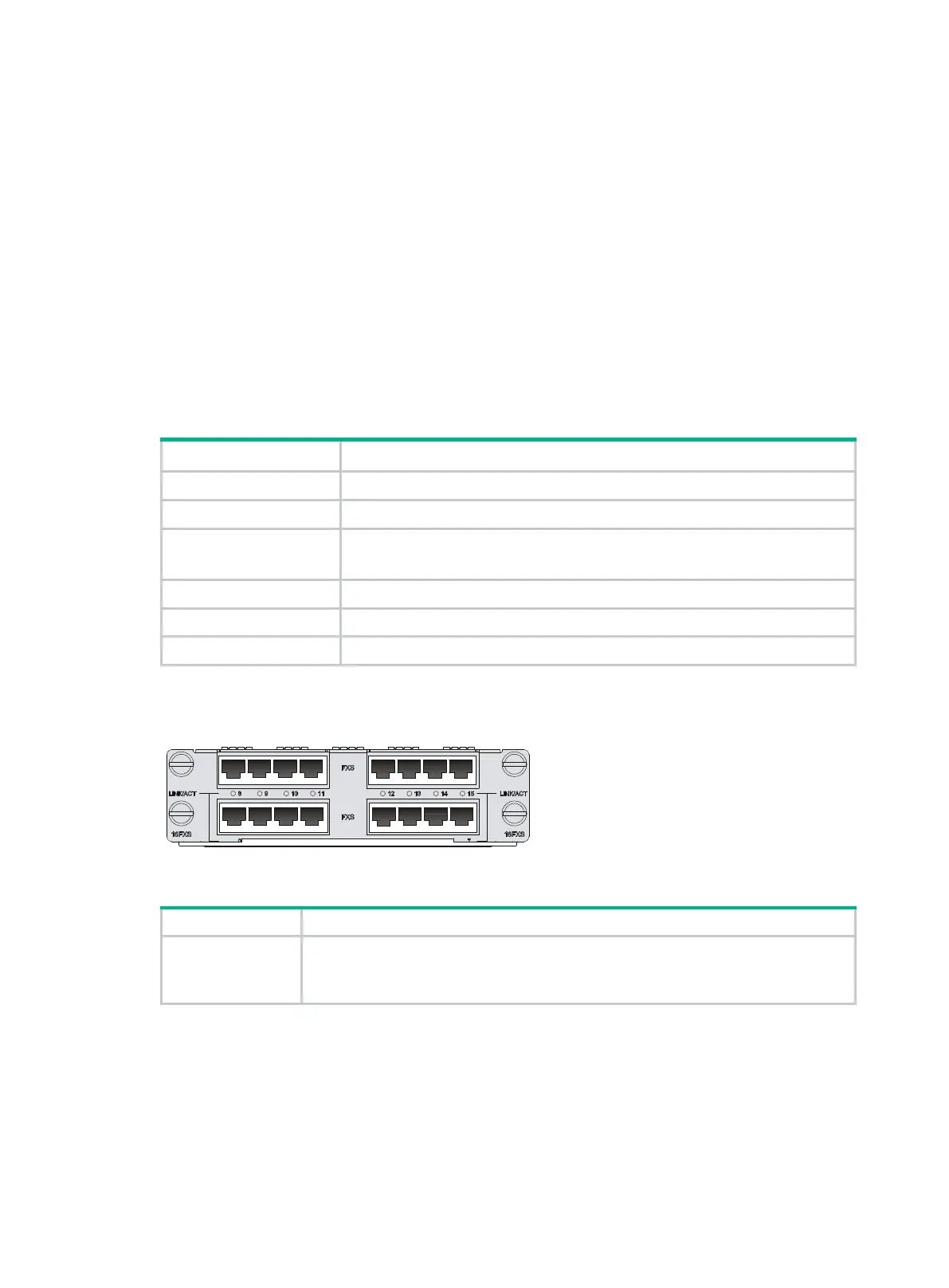

Figure 76 MIM-16FXS panel
Table 108 LED description
LINK/ACT
• Off means no link is present.
• Steady green means a link is present and a call connection is being established.
• Flashing yellow means a link is present and there is a call activity.
Interface cables and connection methods
For more information about FXS interface cables and connection methods, see
"ADSL/BS/FXS/FXO/AM/FCM interface."
