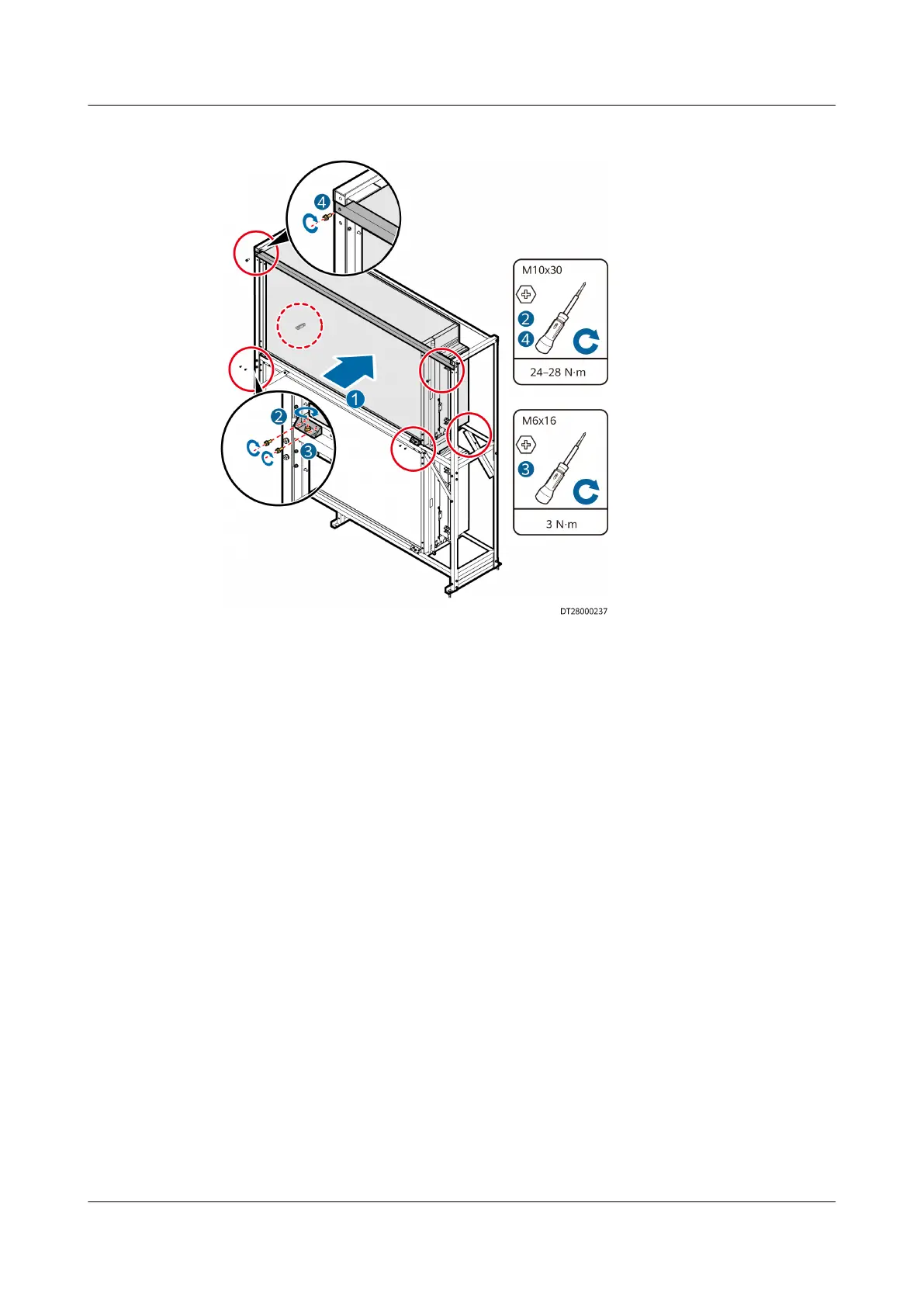

Figure 4-46 Securing an outdoor unit onto the second-layer base
1. Lift the outdoor unit from the front onto the second-layer base, as shown by
(1) in Figure 4-46.
2. Secure the outdoor unit to the base using four corner
ttings on the side
panel. One M10x30 stainless steel bolt is used on the base side, and two
M6x16 stainless steel bolts are used on the outdoor unit side, as shown in
Figure 4-46.
3. Secure the last beam on the top to the base using two M10x30 stainless steel
bolts, as shown by (4) in Figure 4-46.
----End
4.5.3.4 Vertical Installation (NetCol500-A120)
Step 1 Secure the bottom of the outdoor unit.
