Huawei NetCol8000-A045D - Indoor Unit

2.3.1.1 Indoor Unit
Components

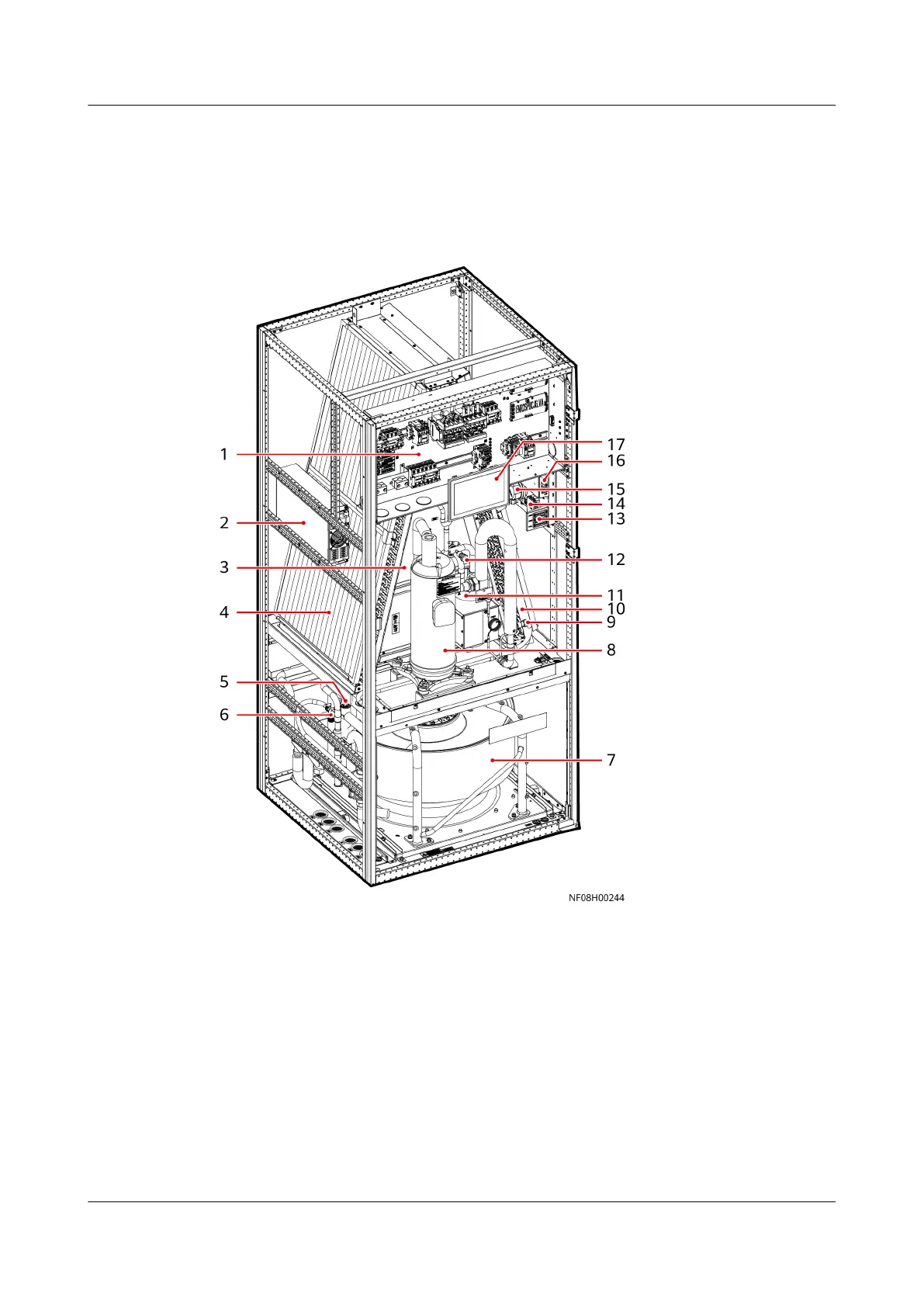

Figure 2-9 NetCol8000-A045D components
(1) Electric control box (2) Integrated
variable-frequency
drive
(3) Evaporator (4) Air lter
(5) Electronic
expansion valve (EEV)
(6) Water inlet
solenoid valve
(optional)
(7) Fan (8) Compressor
(9) Suction pressure
sensor
(10) Wet lm
humidier (optional)
(11) Oil separator (12) Discharge
pressure sensor
(13) User wiring
terminal
(14) Temperature and
humidity (T/H) sensor
(15) Dierential
pressure switch
(16) Main control
module
(17) Display module
