NO TE
● For underoor airow, ensure that the net height of the raised oor under the device is
greater than 550 mm. Otherwise, the fan cannot be lowered. The fan rotation area
cannot be occupied by pipes or cables.
● The raised
oor is optional for upow units.
● W indicates the distance between smart cooling products, and the minimum W is 600
mm.
● L indicates the front maintenance distance for the device. The minimum maintenance
distance is 900 mm for the NetCol8000-A045, NetCol8000-A055, and NetCol8000-A090,
or 1100 mm for the NetCol8000-A060 and NetCol8000-A120. If the front distance
cannot meet the requirements, remove the front door for maintenance. The minimum
distance is 800 mm.
4.1.4 Outdoor Unit Installation Requirements
Precautions
● Ensure that air smoothly ows into and out of the condenser. Install an
outdoor unit in clean areas that are away from residential areas.
● Take thermal insulation measures for pipes connecting indoor and outdoor
units.
● Do not use the copper pipe or electric control box as a weight-bearing point
when moving the outdoor unit, and keep the
ns intact.
● When routing pipes for the condenser, ensure that the pipes are routed in
from the top and out from the bottom.
● The horizontal or vertical error should be no more than ±5° when an outdoor
unit is installed horizontally or vertically. When the unit is installed vertically,
the unit can be turned to either side but the electric control box cannot be
placed upward. The installation method is as follows.

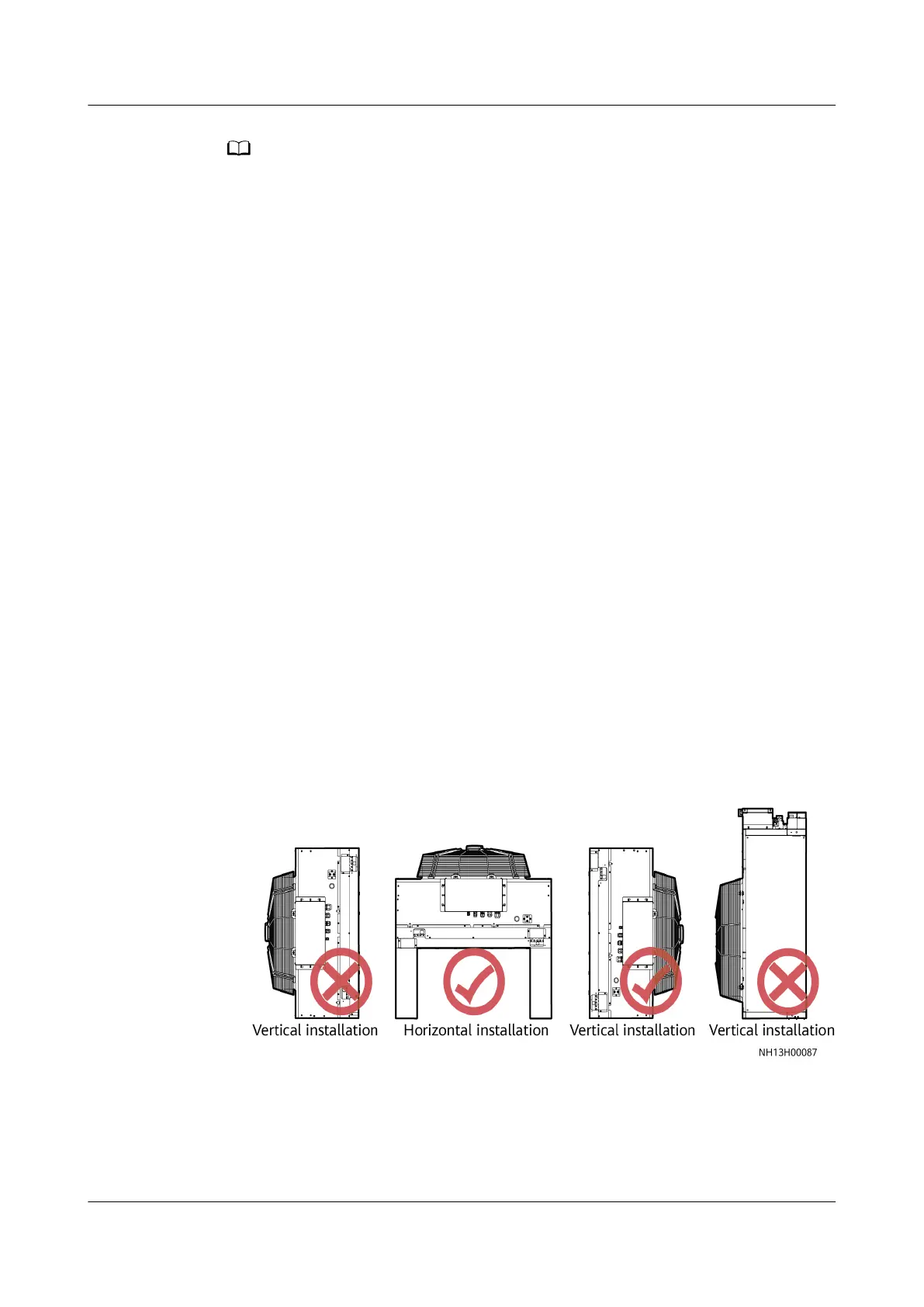

Figure 4-6 Installation modes (using the NetCol500-A060 as an example)
