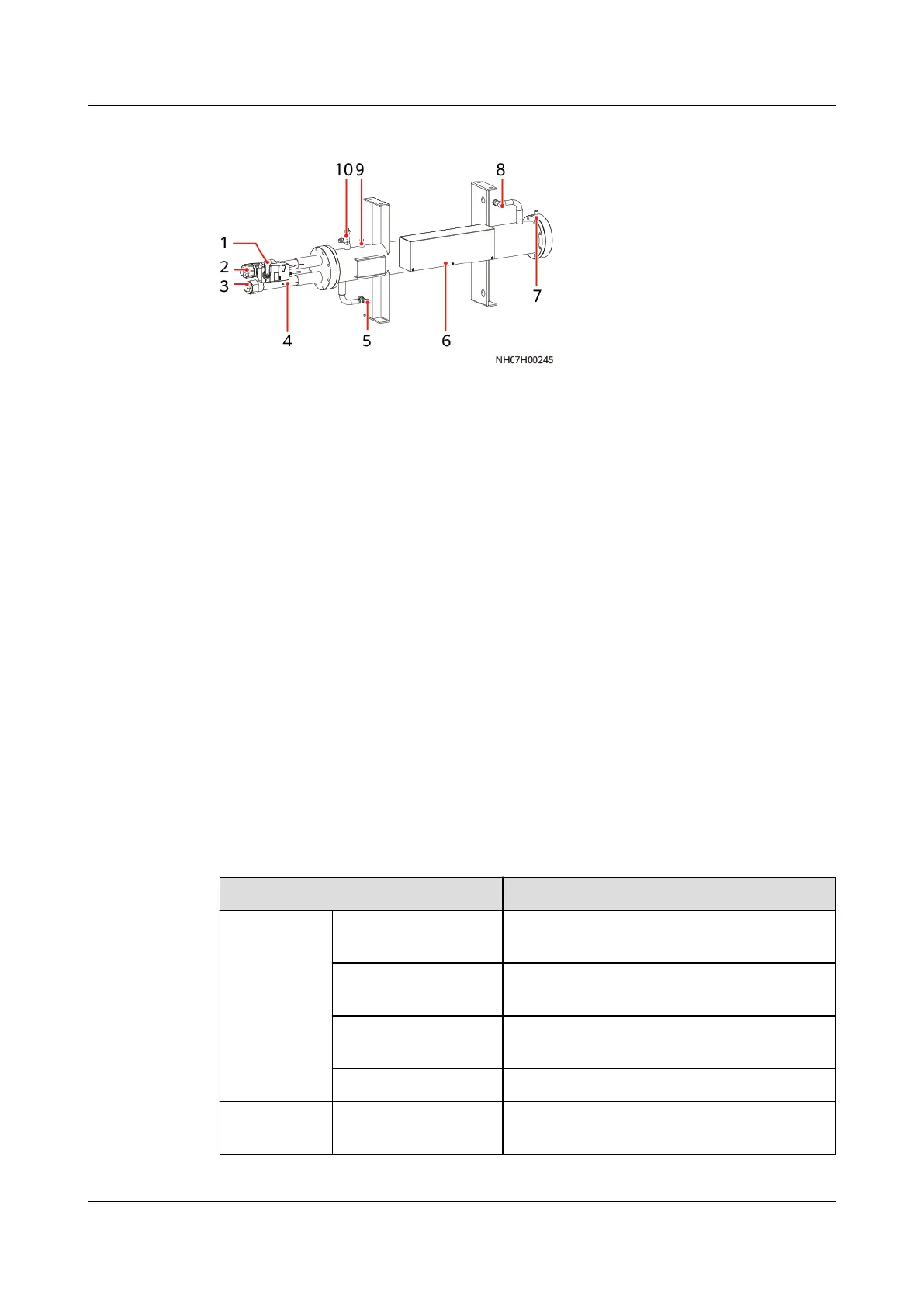

Figure 2-20 Water-cooled module components
(1) Water valve actuator (2) Water return pipe
(3) Water supply pipe (4) Negative temperature coecient (NTC)
sensor
(5) Liquid pipe (6) Electric control box
(7) Cooling water side needle valve (8) Gas pipe
(9) Refrigerant side needle valve (10) Safety valve
Features
● The water valve is pre-integrated to save onsite installation time.
● The water-cooled module can be installed in stack mode to maximize the
installation space and reduce the footprint.
● The water-cooled module uses cooling water for heat exchange to improve
the heat exchange
eciency and improve the energy eciency of the entire
system to 4.0 COP.
2.4 Physical Ports
Table 2-5 Physical ports
Item
Specications
Indoor unit Refrigerant liquid
pipe port
Outer diameter of 5/8 inch (15.88 mm),
welding
Refrigerant gas pipe
port
Outer diameter of 7/8 inch (22.22 mm),
welding
Humidier water
inlet pipe port
G 3/4 inch outer screw thread
Drainpipe port BSPP 3/4 inch, inner screw thread
Outdoor
unit
Refrigerant liquid
pipe port
Outer diameter of 5/8 inch (15.88 mm),
welding
