Step 4 Check the nitrogen pressure at each needle valve.
● If the pressure displayed on the pressure gauge is greater than or equal to 0.2
MPa, the unit is in good condition.
● If the pressure gauge reading is less than 0.2 MPa, pipes have leakage points.
Contact technical support.

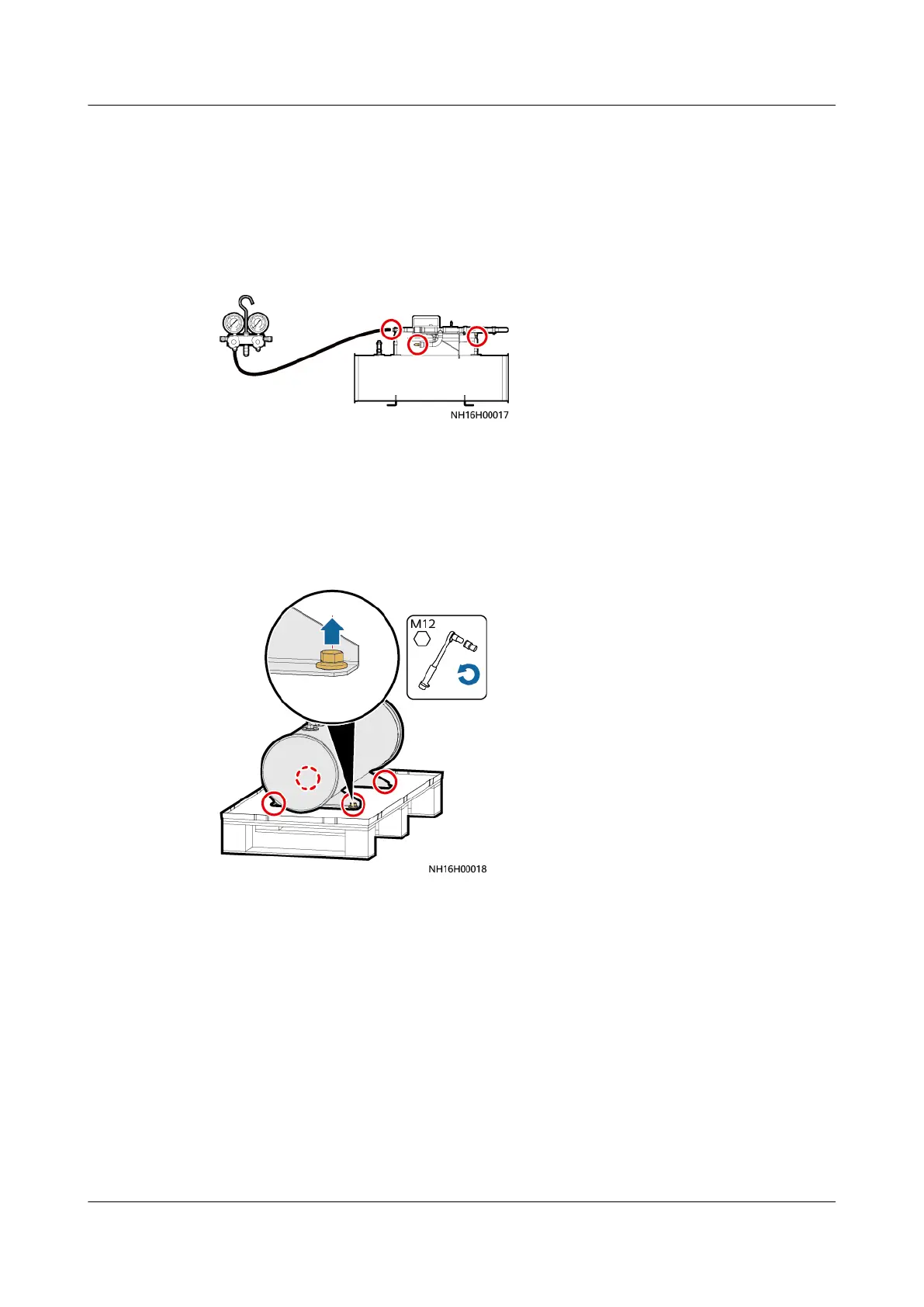

Figure 4-52 Checking the nitrogen pressure
----End
4.7.2 Removing Transport Fasteners
Step 1 Remove the screws from the pallet and move the device o the pallet.
Figure 4-53 Removing the screws from the pallet
----End
4.7.3 Securing the Low Temperature Component
Step 1 Secure the device to the base.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 95
