E.2.2 NetCol500-A080

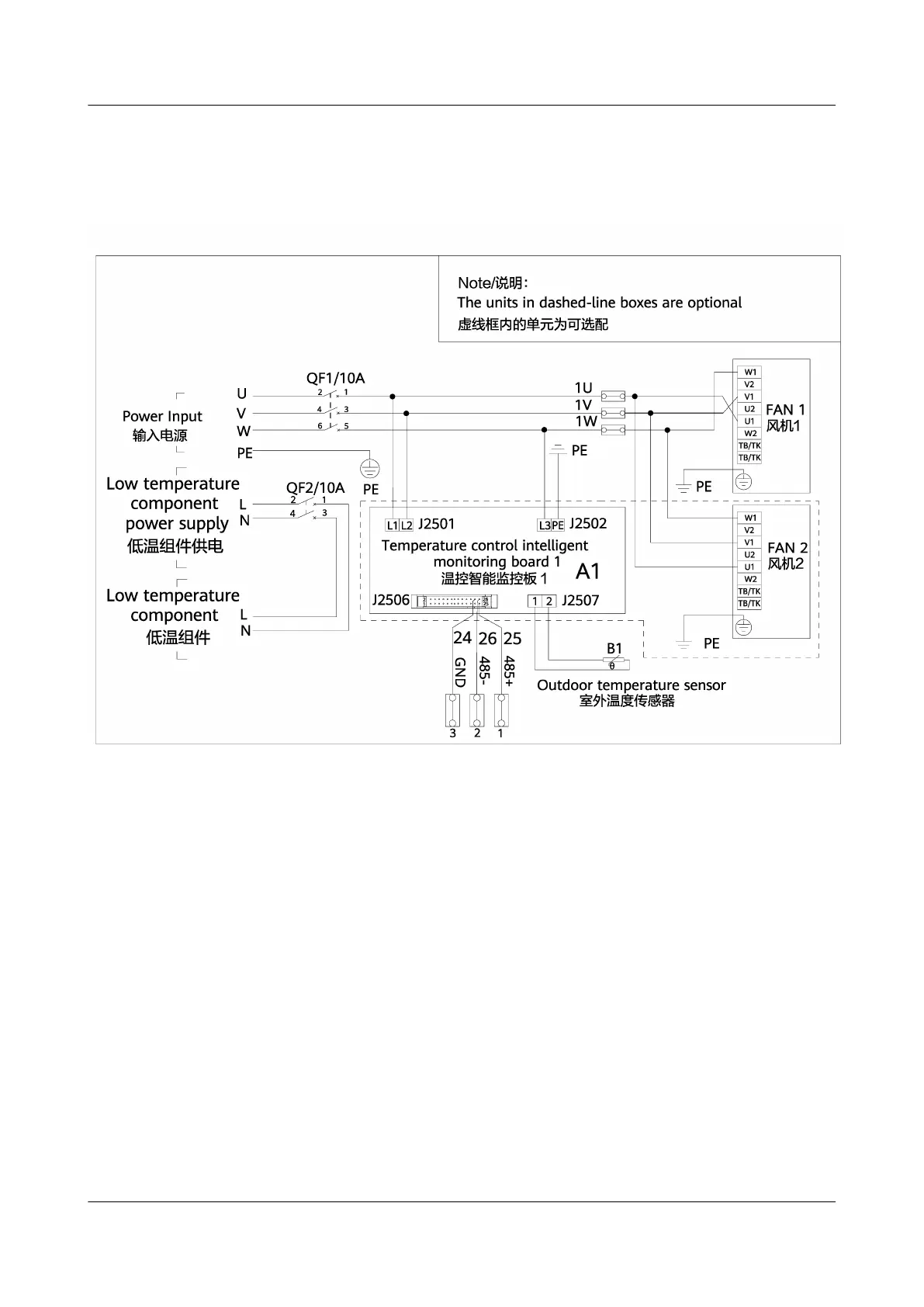

Figure E-12
NetCol500-A080 electrical diagr
am
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual
E Electrical Diagrams
Issue 05 (2020-10-10)
Copyright © Huawei T
echnologies Co., Ltd.
