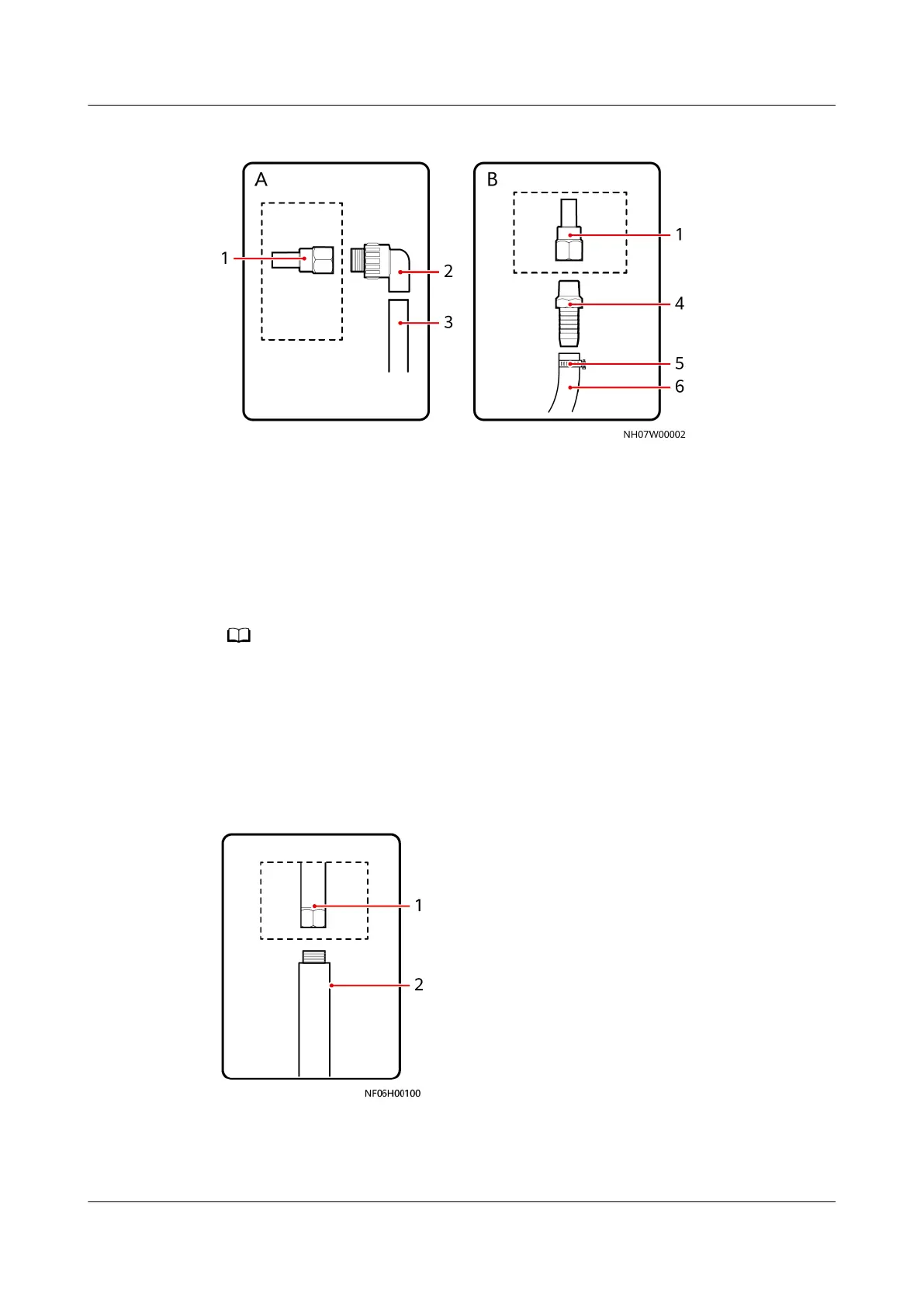

Figure 4-24 Connecting a drainpipe
(1) Inner thread connector: BSPP 3/4 inch,
inner thread connector delivered with the
smart cooling product
(2) Adapter: BSPT 3/4 inch, connected to a
rigid pipe with external threads
(3) Rigid pipe: made of PP-R (4) Pagoda connector
(5) Hose clamp (6) Hose: inner diameter of 3/4 inch; made of
EPDM or other materials
NO TE
The object shown in the dotted line box is the drainpipe connector with inner screw threads
delivered with smart cooling products. The hose clamp as shown by (5) in the preceding
gure is provided in standard conguration. Other parts are not provided and need to be
purchased.
4.2.2.6 Water Inlet and Outlet Pipes for the Water-Cooled Module
Figure 4-25 Water pipe connection diagram
(1) Internal thread connector: G1–1/2 inch,
internal thread connector delivered with the
smart cooling product
(2) Rigid pipe: made of PP-R
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 71
