Huawei NetCol8000-A045D - E Electrical Diagrams; Indoor Unit; Netcol8000-A045

E Electrical Diagrams
E.1 Indoor Unit
E.1.1 NetCol8000-A045

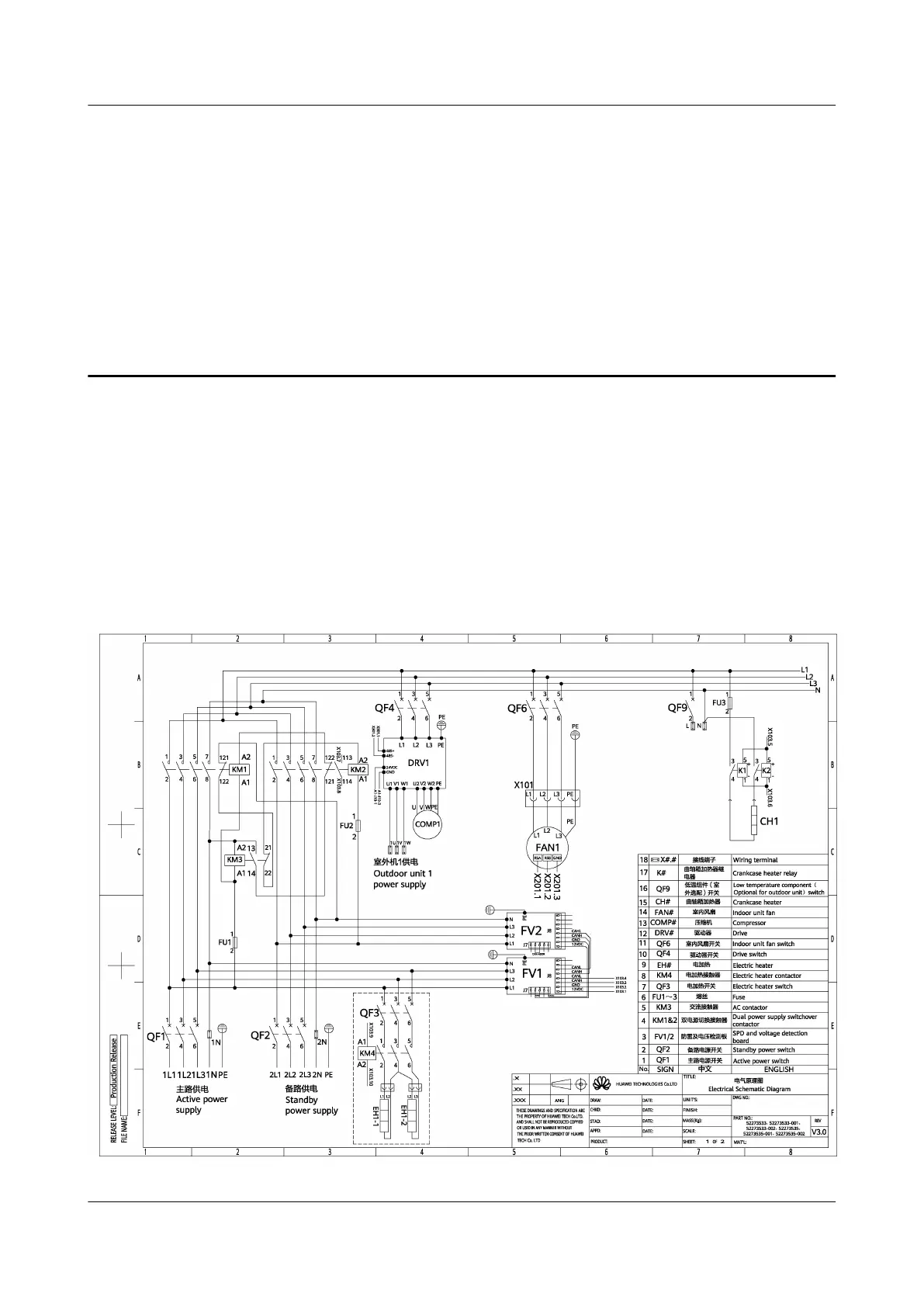

Figure E-1 Electric diagram 1
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual E Electrical Diagrams
