4.2.2.7 Pipe Support

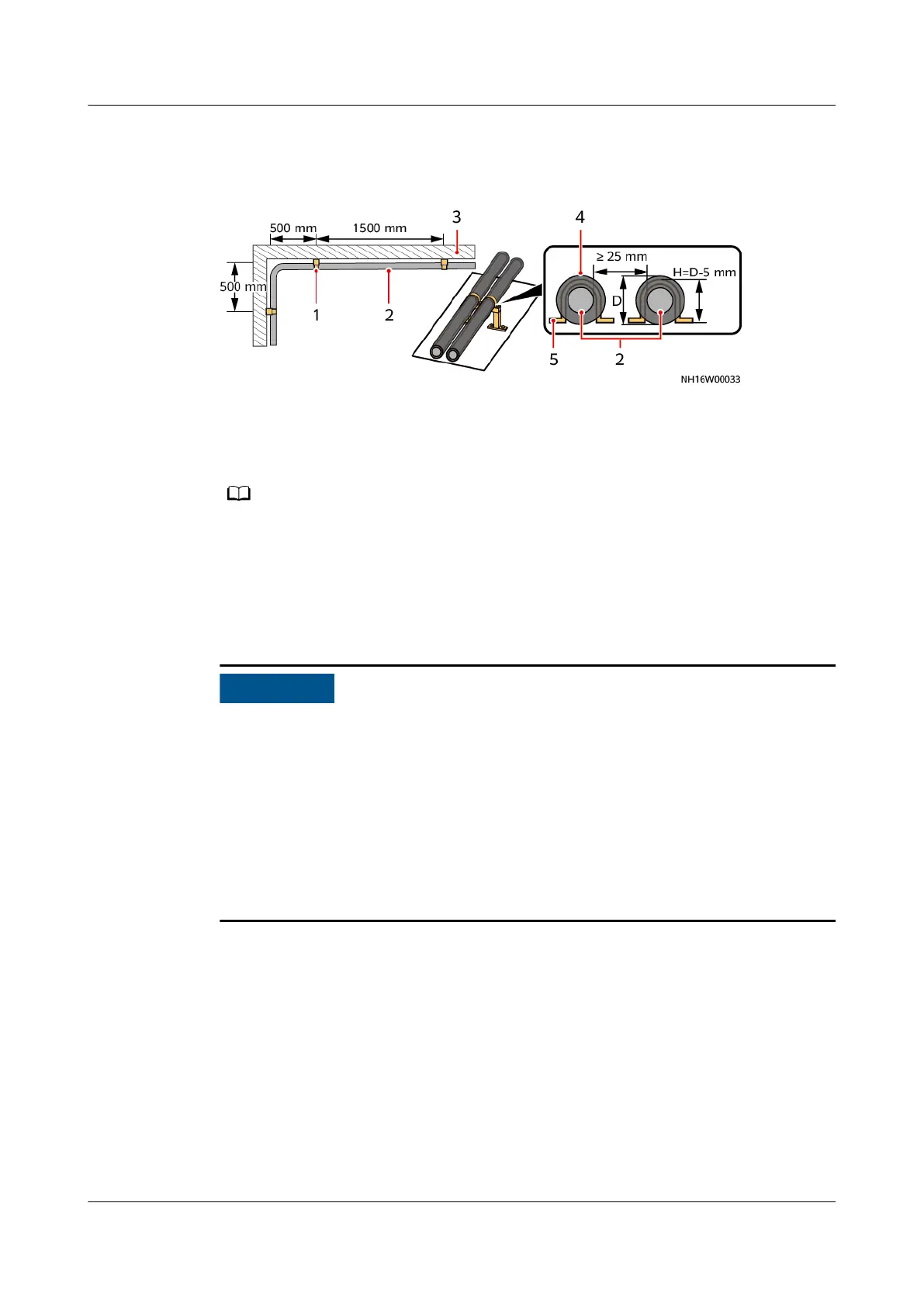

Figure 4-26 Pipe support
(1) Pipe support (2) Pipe (3) Mounting surface
(4) Thermal insulation foam (5) U-shaped pipe clamp
● 304 stainless steel is the recommended material for pipe supports and clamps.
● Install a support every 1500 mm in the straight sections of pipes, and 500 mm away
from each bending point in turning sections.
4.2.2.8 Cable
● The onsite grounding resistance must comply with related standards.
● When the NetCol8000-A045/A055/A060 indoor unit is used, prepare one group
of outdoor unit cables for each indoor unit (if two indoor units are used,
prepare two groups of outdoor unit cables). When the NetCol8000-A090/120
indoor unit is used, prepare two groups of outdoor unit cables for each indoor
unit.
● Shielded cables cannot be used as power cables for outdoor units.
● The signal cable is a shielded cable, and the shield layer must be reliably
grounded. Otherwise, device communication is
aected.
The cable diameter must comply with local cable standards. The factors that
aect cable selection include the rated current, cable type, routing mode, ambient
temperature, and maximum expected line loss. Signal cables must be routed
through protective tubes for protection.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 72
