● When the outdoor condensing pressure is lower than the designed opening
pressure of the condensing pressure regulator valve, the regulator valve closes
and the dierential pressure valve opens. The refrigerant at the compressor
outlet is bypassed to the liquid storage unit of the low temperature
component through the dierential pressure valve, ensuring that the
condensing pressure stays within a safe and reliable operating range.
● When the condensing pressure is higher than the designed opening pressure
of the condensing pressure regulator valve, the regulator valve opens and the
dierential pressure valve closes. The refrigerant at the compressor outlet
ows to the liquid storage unit of the low temperature component through
the condenser, and the system runs properly.
Appearance

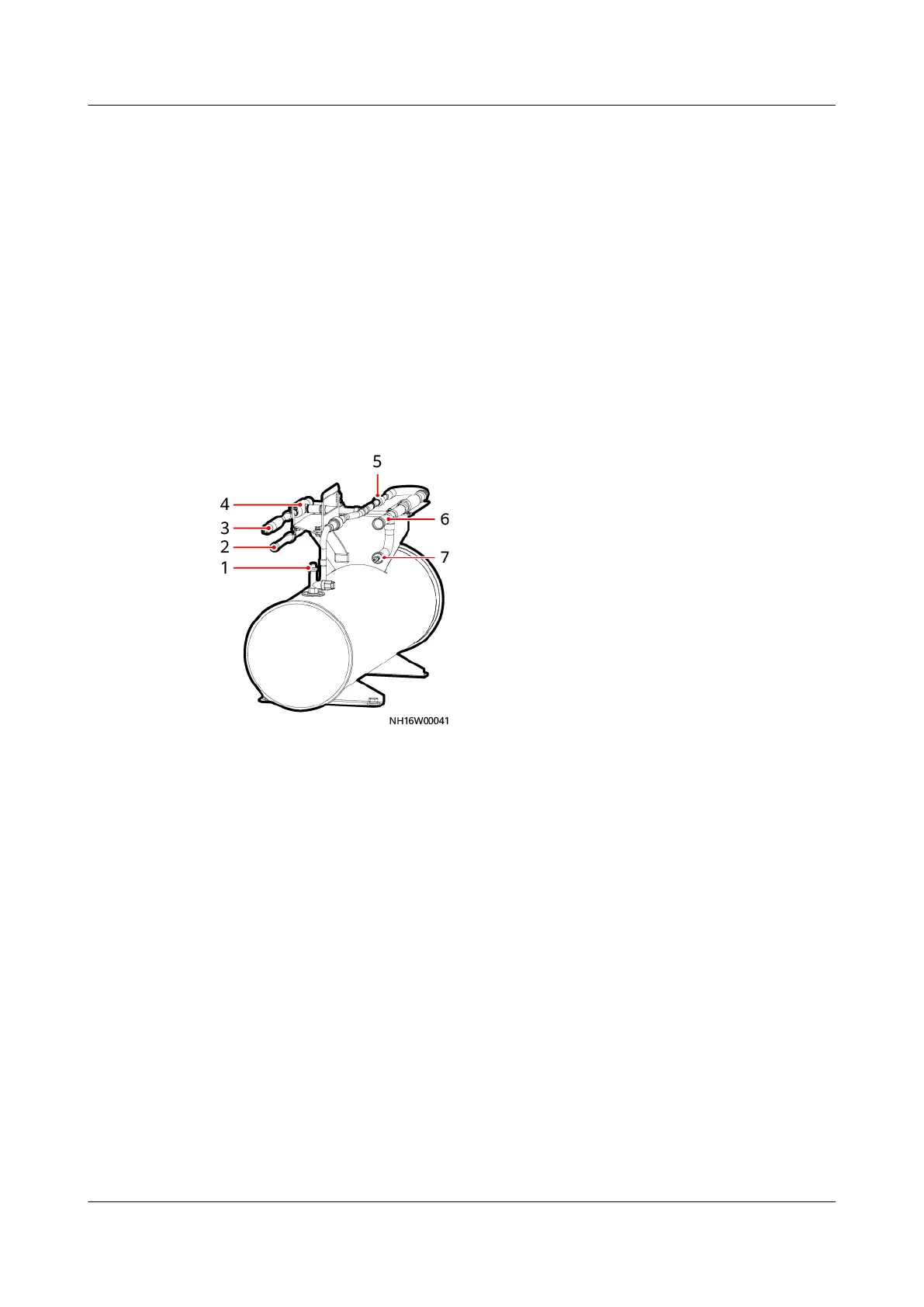

Figure 2-19 Low temperature component
(1) Safety valve
(2) Port for the indoor unit
liquid pipe
(3) Port for the outdoor unit
liquid pipe
(4) Condensing pressure
regulator valve
(5) Dierential pressure valve (6) Port for the outdoor unit
gas pipe
(7) Port for the indoor unit gas
pipe
2.3.4 Water-Cooled Module
Components
The NetCol500 water-cooled module consists of an electric control box, an water
valve actuator, and a rack. The following describes the components and
conguration.
