A.2.2 NetCol500-A080

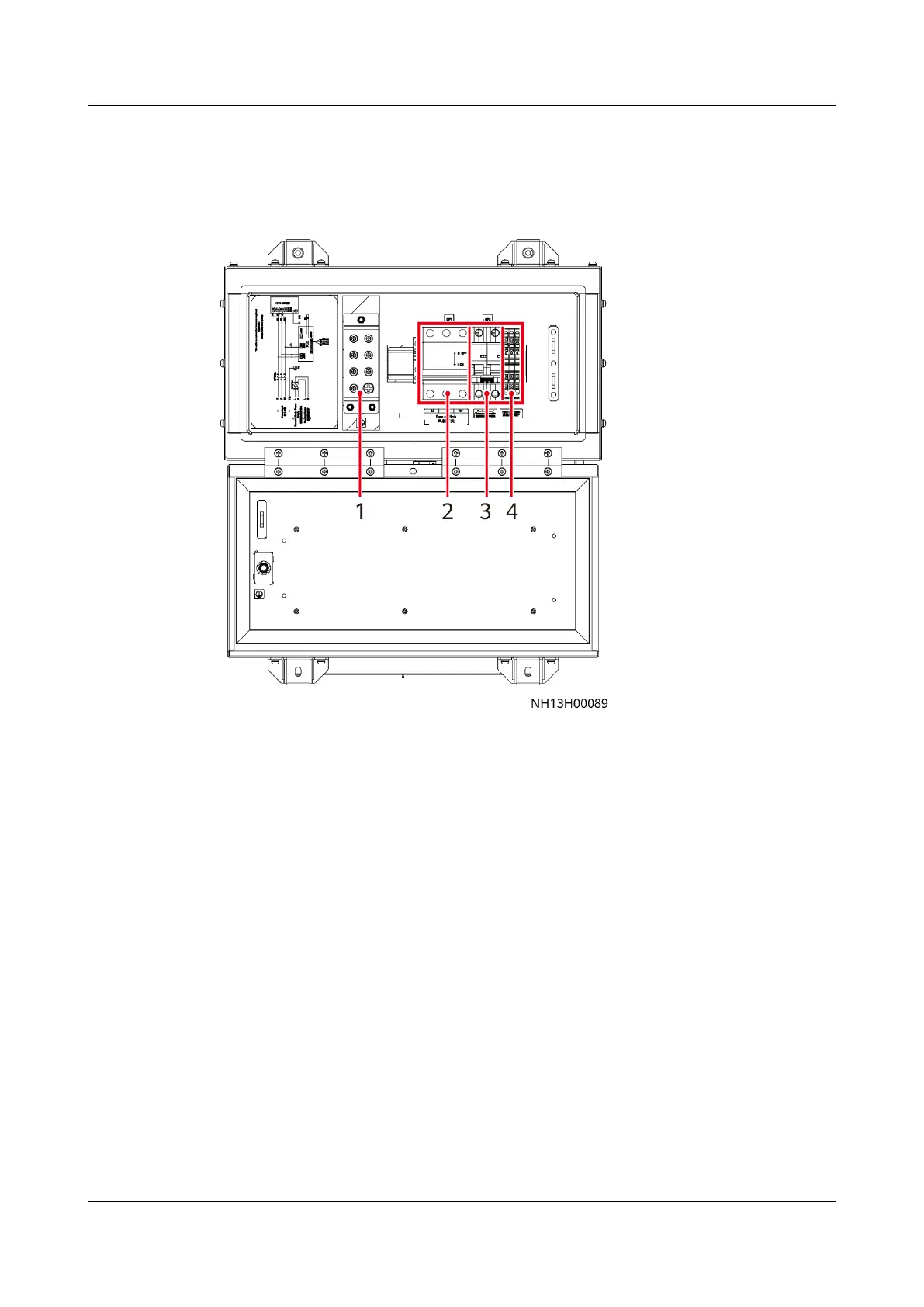

Figure A-7 NetCol500-A080 electric control box (without a temperature control
intelligent monitoring board)
(1) PE bar (2) Fan switch (QF1)
(3) Low temperature component switch (QF2) (4) Fan terminal
