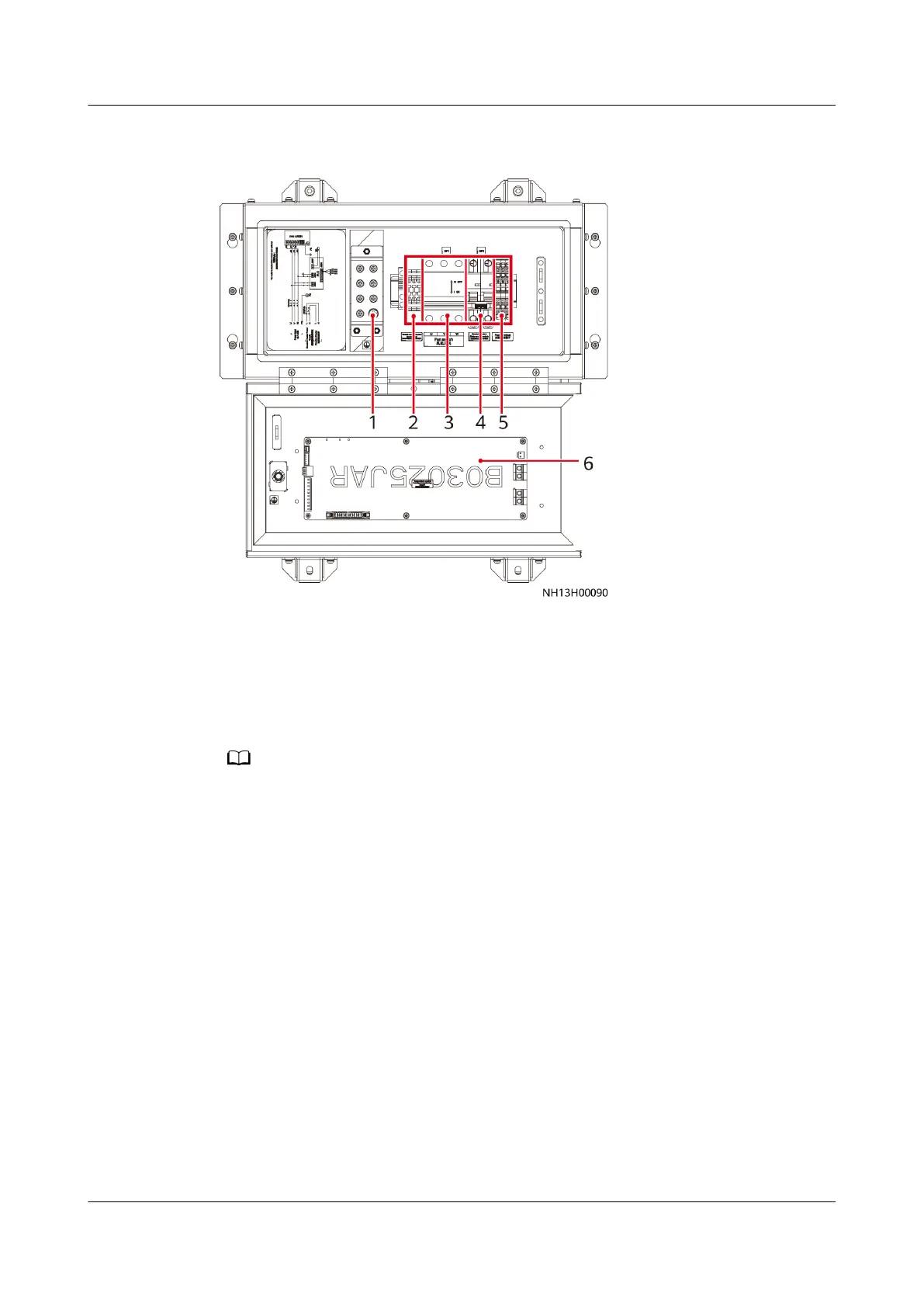

Figure A-6 NetCol500-A060 electric control box (with a temperature control
intelligent monitoring board)
(1) PE bar (2) RS485 communication line
terminal (RS485+, RS485–,
GND)
(3) Fan switch (QF1)
(4) Low temperature
component switch (QF2)
(5) Fan terminal (6) Temperature control
intelligent monitoring board
The temperature control intelligent monitoring board is located on the inner cover of the
electronic control box.
