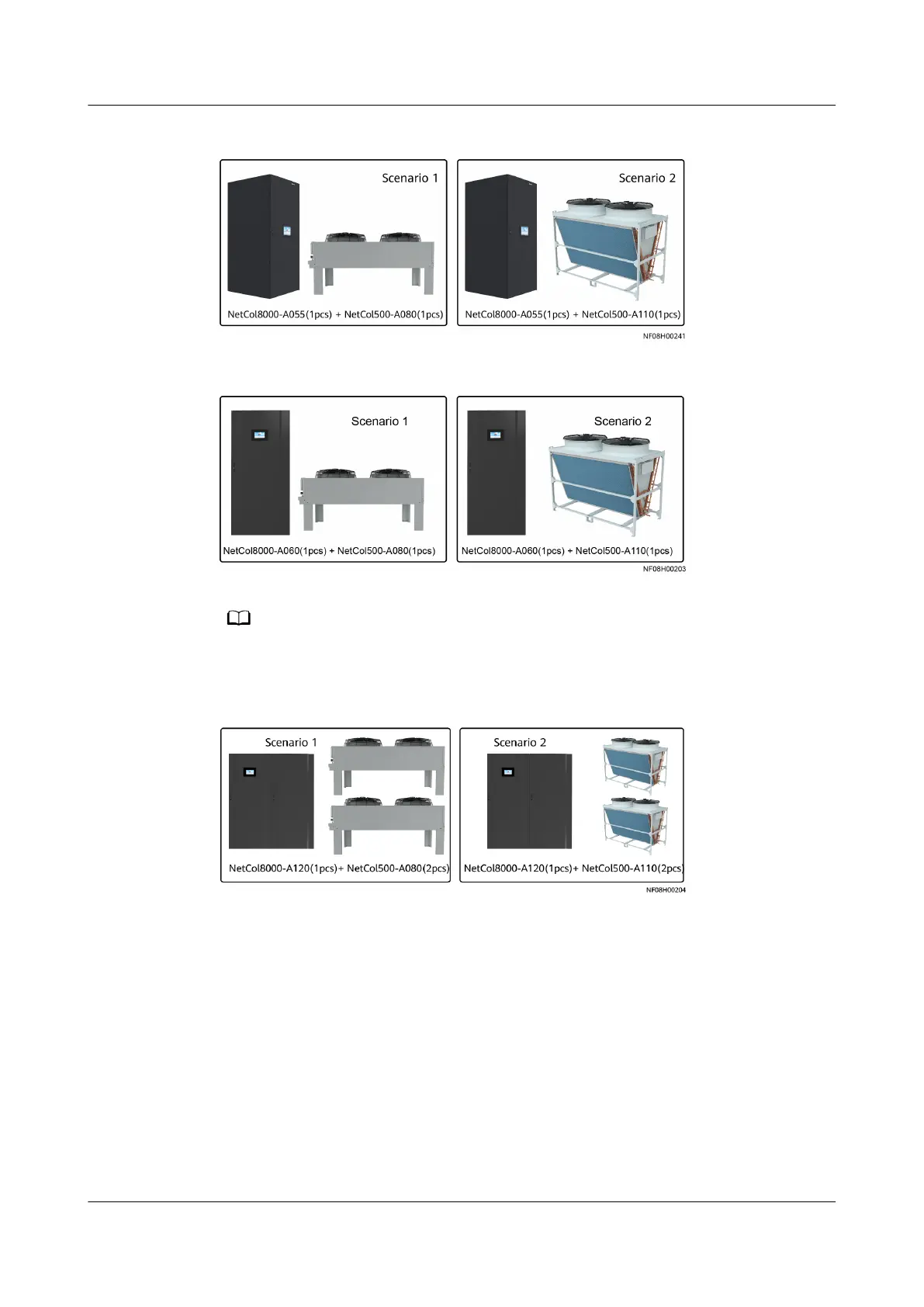

Figure 2-6 NetCol8000-A055 conguration
Figure 2-7 NetCol8000-A060 conguration
NO TE
The upow and downow devices use the same outdoor unit. The following uses a
downow device as an example.
Figure 2-8 NetCol8000-A120 conguration
2.3 Component Description
2.3.1 Indoor Unit
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 2 Product Description
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 18
