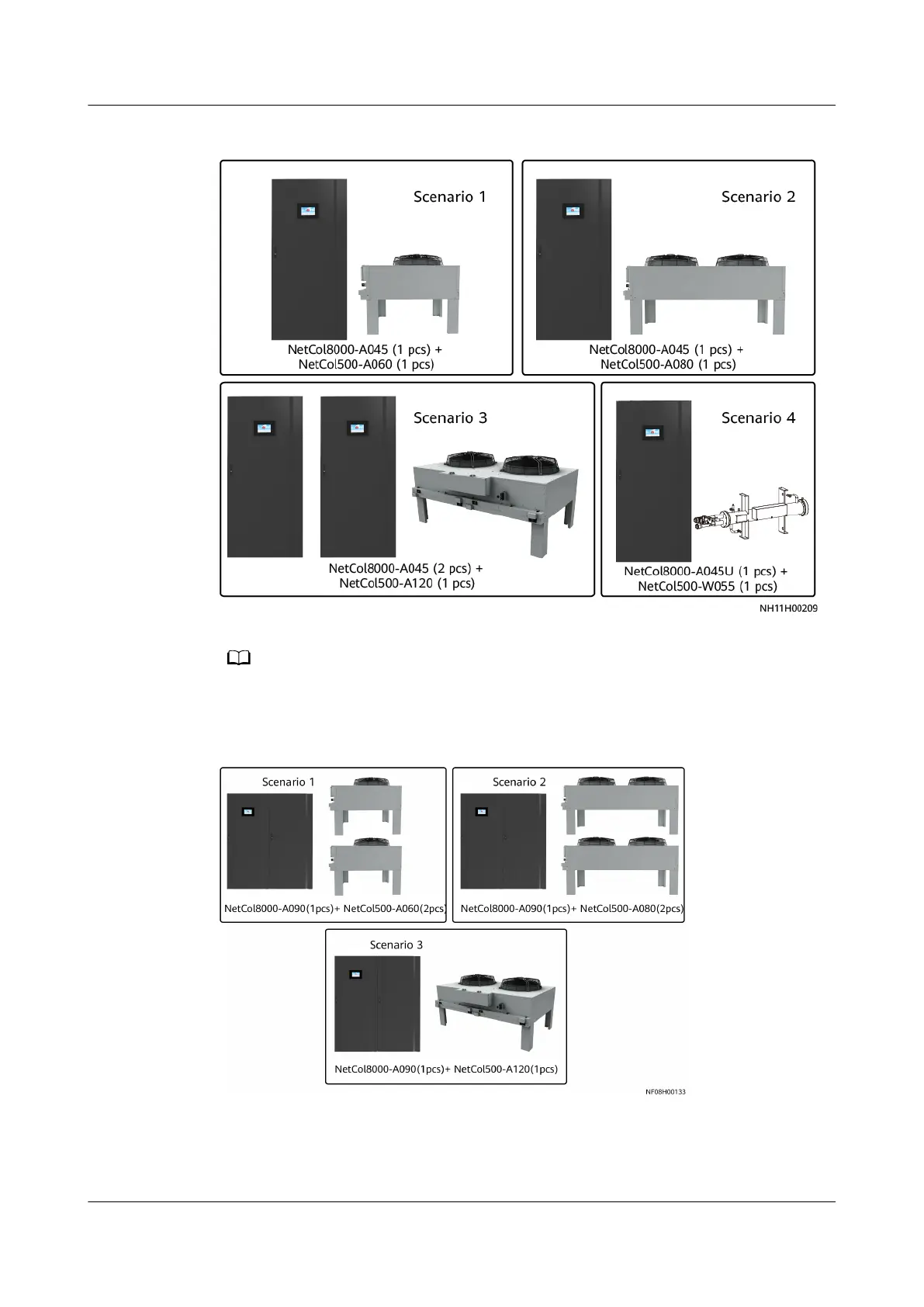

Figure 2-4 NetCol8000-A045 conguration
NO TE
Except for scenario 4, the upow and downow devices use the same outdoor unit. The
following uses a downow device as an example.
Figure 2-5 NetCol8000-A090 conguration
