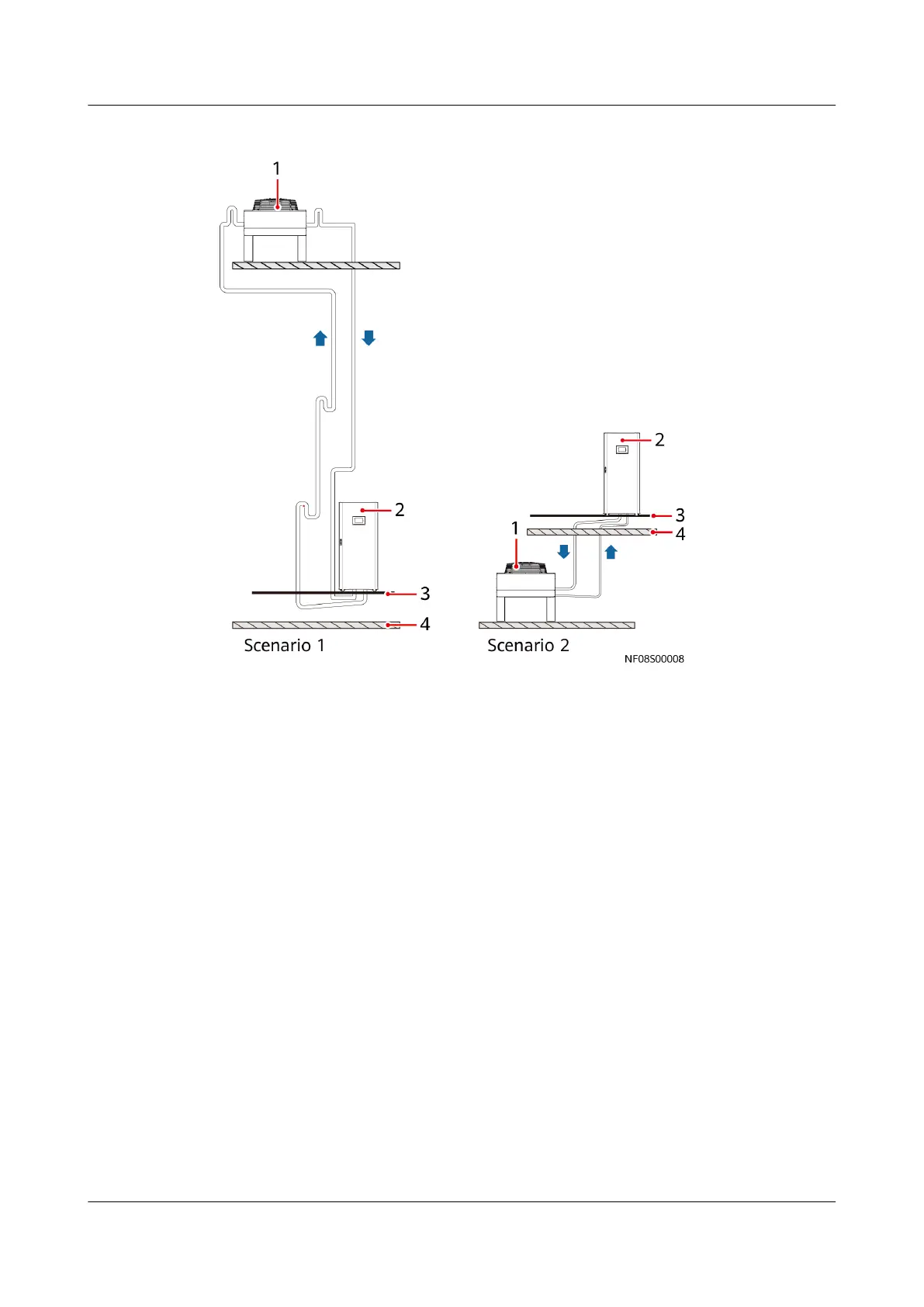

Figure 2-3 Composition
(1) Outdoor unit (2) Indoor unit
(3) Electrostatic discharge (ESD) oor (4) Floor
Indoor and Outdoor Unit Conguration
The indoor unit NetCol8000-A045, NetCol8000-A055, or NetCol8000-A060 is a
single system, and the NetCol8000-A090 and NetCol8000-A120 is a dual system.
The outdoor units NetCol500-A060, NetCol500-A080, NetCol500-A110, and
NetCol500-W055 (water-cooled module) are single-system units. The NetCol500-
A120 is a dual-system unit.
