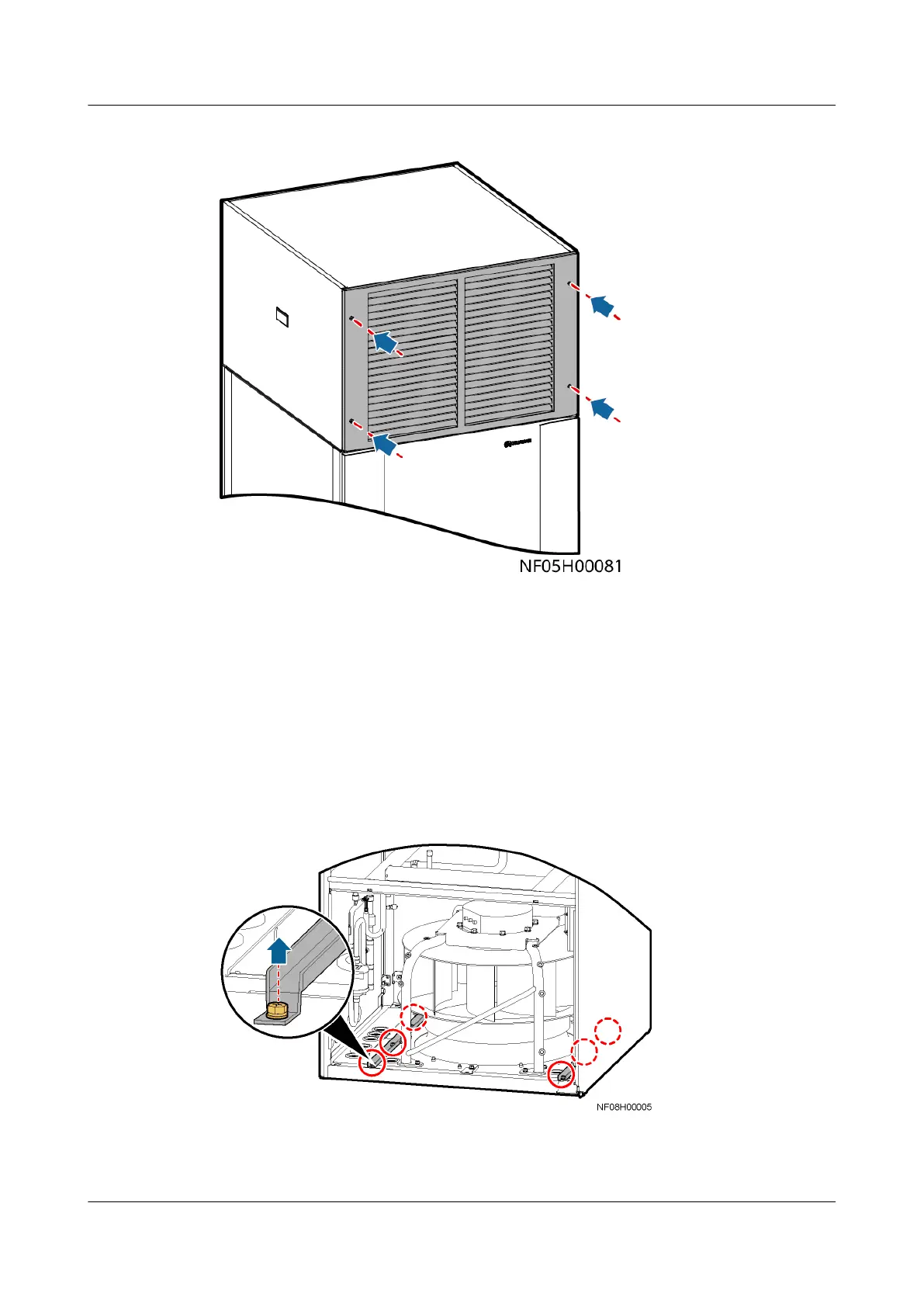

Figure 4-116 Installing the front panel
----End
4.12 Lowering a Fan (Applicable to Downow Units)
Procedure
Step 1 Remove two beams.
Figure 4-117 Removing beams
Step 2 Rotate the fan upward by 30 degrees, and pull the rotating shaft of the fan to the
outermost side.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 147
