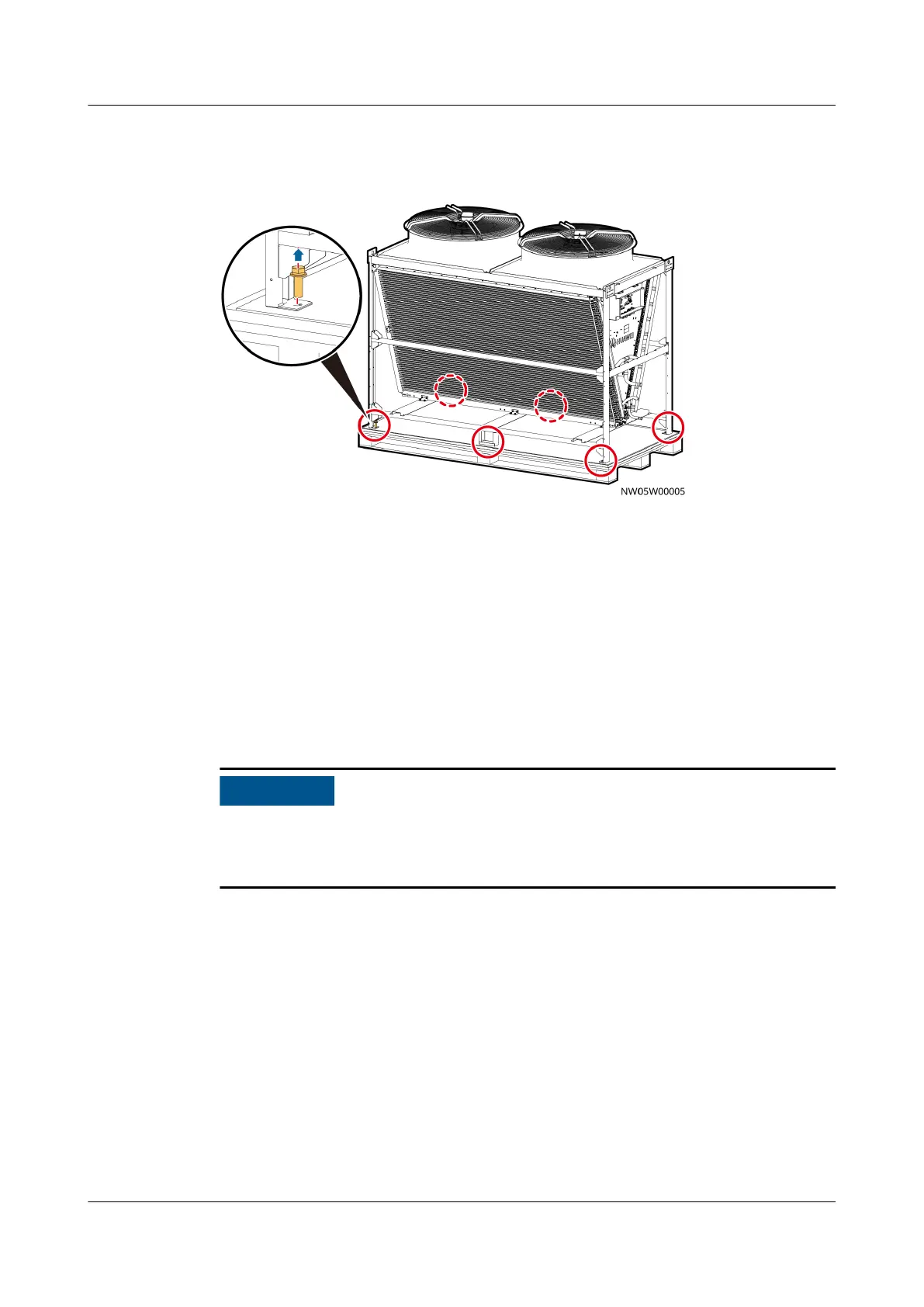

Figure 4-37 Removing the bolts connecting the bracket angles and the pallet
(NetCol500-A110)
----End
4.5.3 Installing an Outdoor Unit
4.5.3.1 Horizontal Installation Scenario (NetCol500-A060/NetCol500-A080/
NetCol500-A120)
Context
When installing the outdoor unit, fully tighten the six stainless steel bolts for each
support leg and the two stainless steel fastening bolts that secure each support
leg to the ground.
Procedure
Step 1 Remove the four corner ttings from the side panels of the outdoor unit by
removing two M6x16 stainless steel bolts from each corner tting.
