A.2 Outdoor Unit
A.2.1 NetCol500-A060

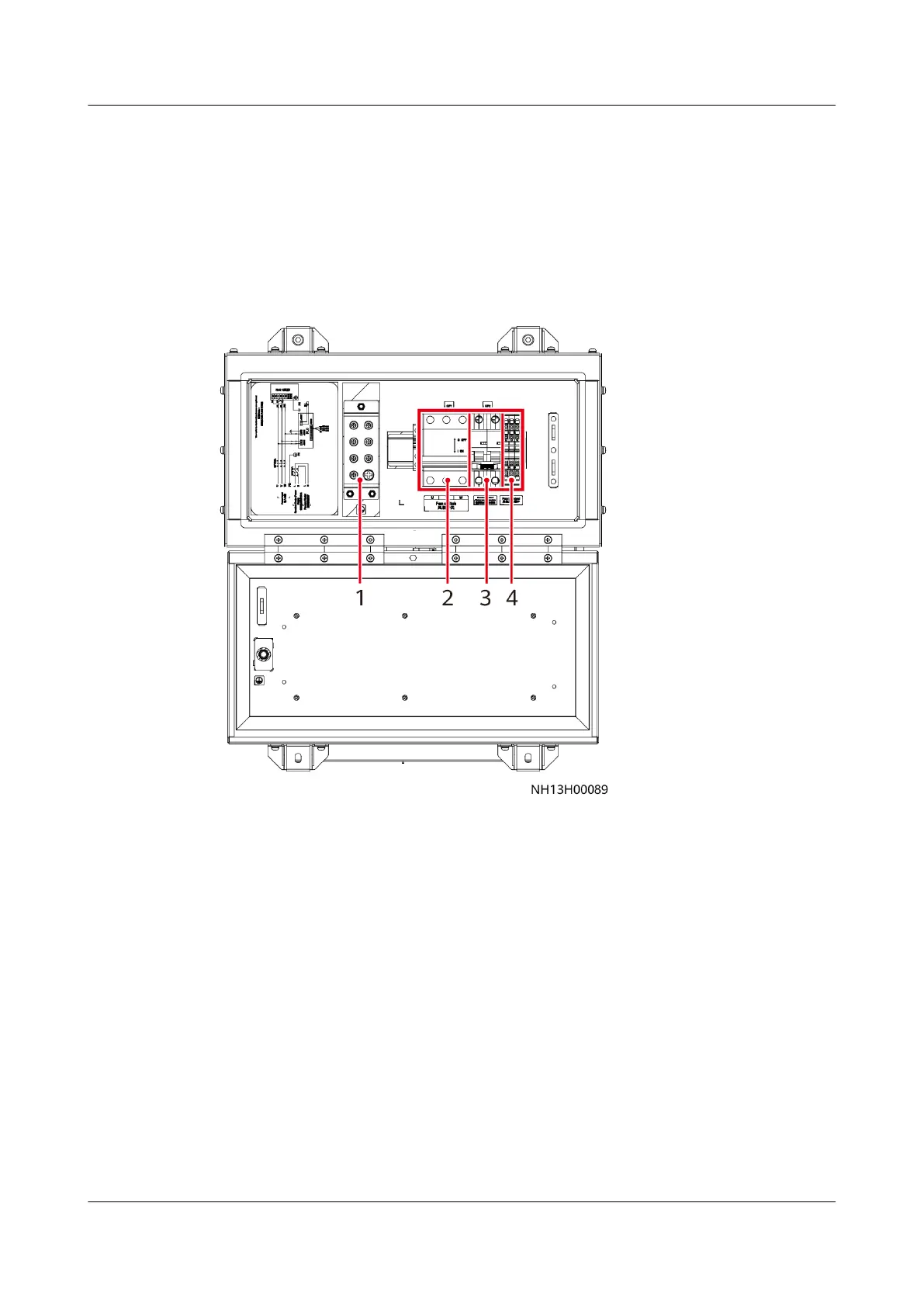

Figure A-5 NetCol500-A060 electric control box (without a temperature control
intelligent monitoring board)
(1) PE bar (2) Fan switch (QF1)
(3) Low temperature component switch (QF2) (4) Fan terminal
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual A Electric Control Box Layout
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 310
