Huawei NetCol8000-A045D - Page 112

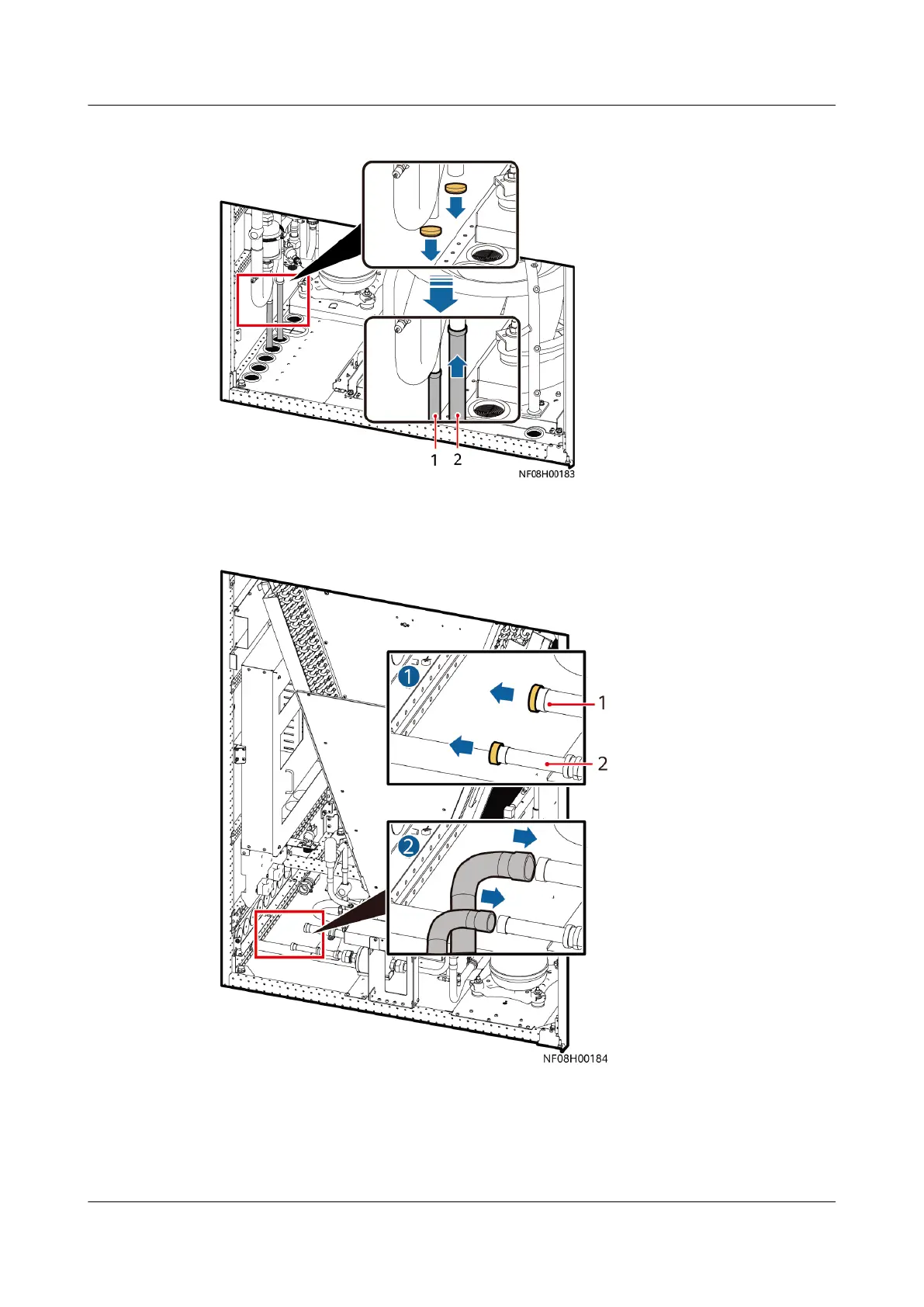

Figure 4-59 NetCol8000-A060/A120 bottom pipe routing (downow)
(1) Liquid pipe (2) Gas pipe
Figure 4-60 NetCol8000-A060 bottom pipe routing (upow)
(1) Gas pipe
(2) Liquid pipe
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 102
