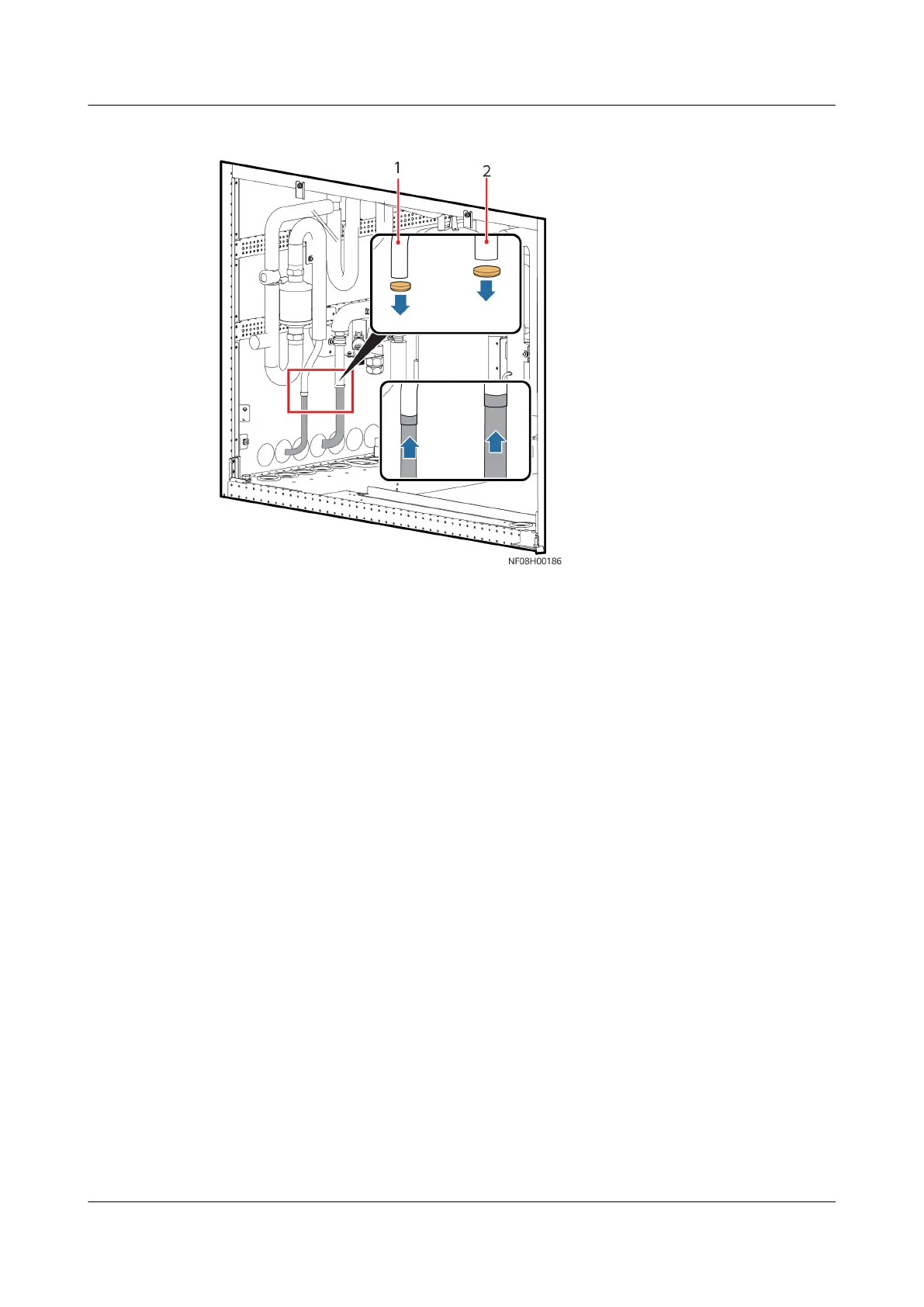

Figure 4-64 NetCol8000-A060/A120 side pipe routing (downow)
(1) Liquid pipe (2) Gas pipe
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 105
