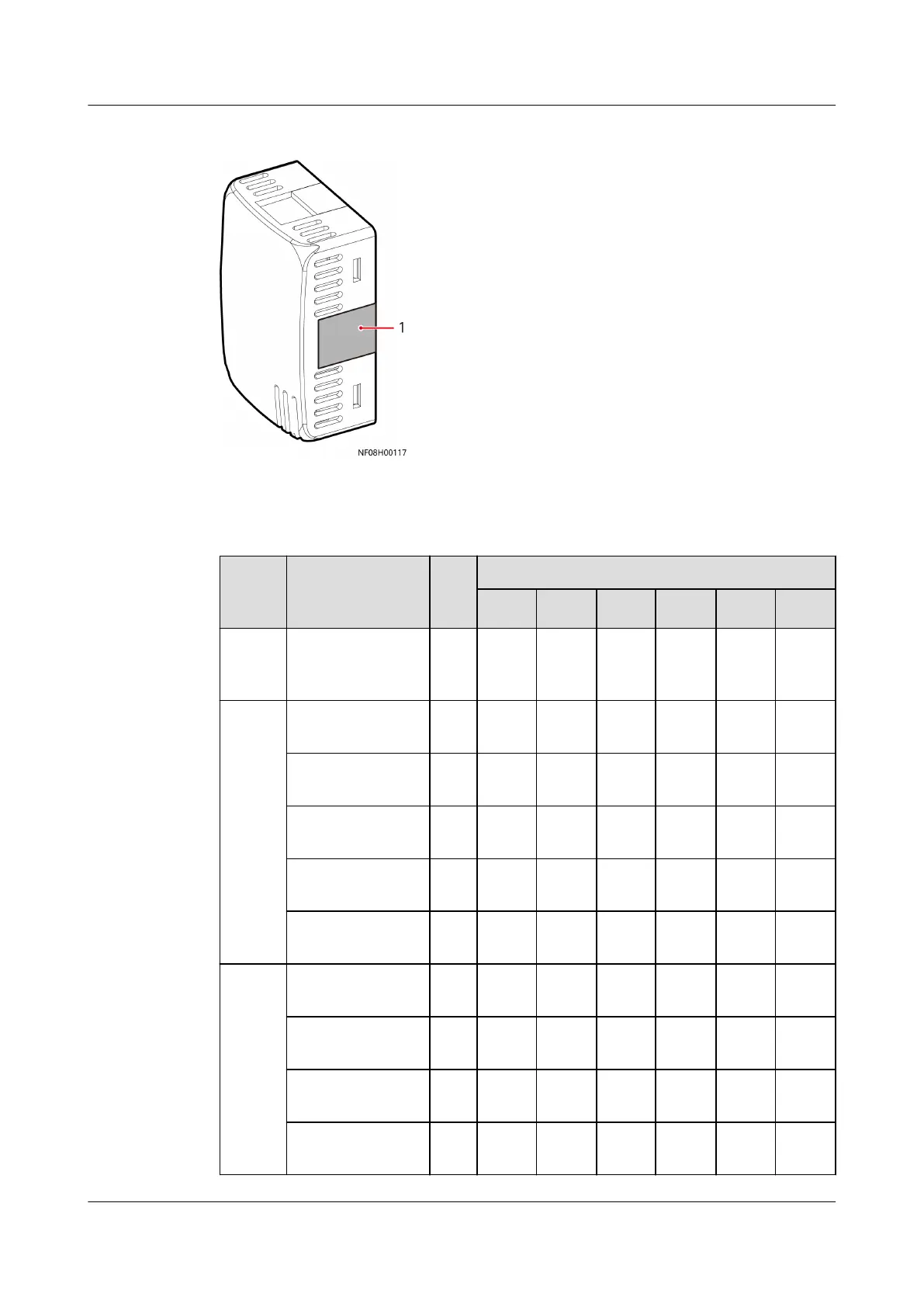

Figure 4-105 T/H sensor
(1) DIP switch
Table 4-7 DIP switch settings on T/H sensors
Locati
on
Display Name Ad
dre
ss
DIP Switch No.
1 2 3 4 5 6
Air
return
side
Return air 2
temp/humid
1 ON OFF OFF OFF OFF OFF
Cold
aisle
Cold aisle 1
temp/humid
11 ON ON OFF ON OFF OFF
Cold aisle 2
temp/humid
12 OFF OFF ON ON OFF OFF
Cold aisle 3
temp/humid
13 ON OFF ON ON OFF OFF
Cold aisle 4
temp/humid
14 OFF ON ON ON OFF OFF
Cold aisle 5
temp/humid
15 ON ON ON ON OFF OFF
Hot
aisle
Hot aisle 1
temp/humid
21 ON OFF ON OFF ON OFF
Hot aisle 2
temp/humid
22 OFF ON ON OFF ON OFF
Hot aisle 3
temp/humid
23 ON ON ON OFF ON OFF
Hot aisle 4
temp/humid
24 OFF OFF OFF ON ON OFF
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 137
