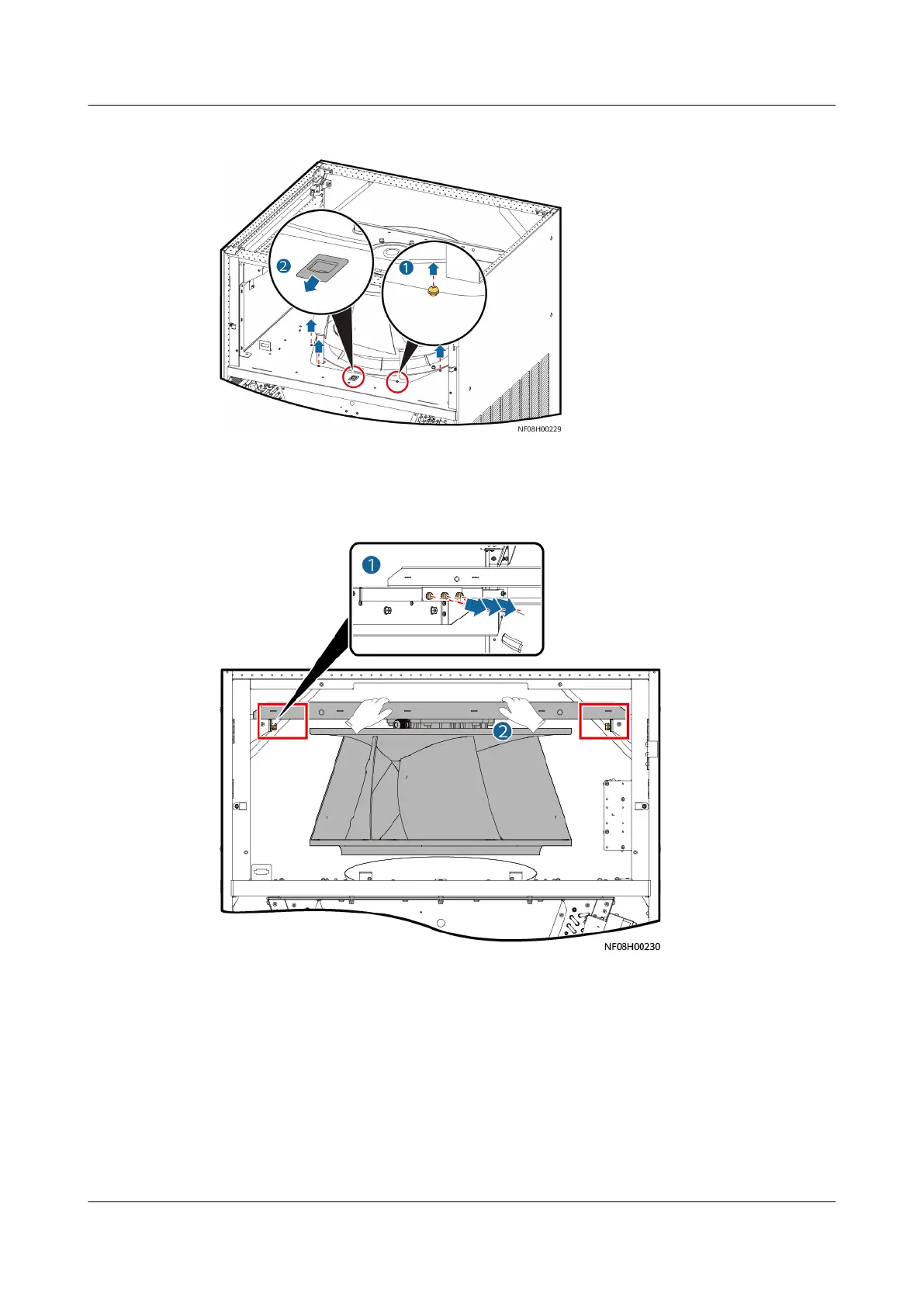

Figure 11-17 Removing the screws that secure the fan
Step 5 Remove the screws from the beams on both sides of the fan using a 13# socket
wrench, and pull out the fan.
Figure 11-18 Removing the screws that secure the fan
Step 6 Remove the six screws that secure the top of the fan support to the fan.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 11 Parts Replacement
