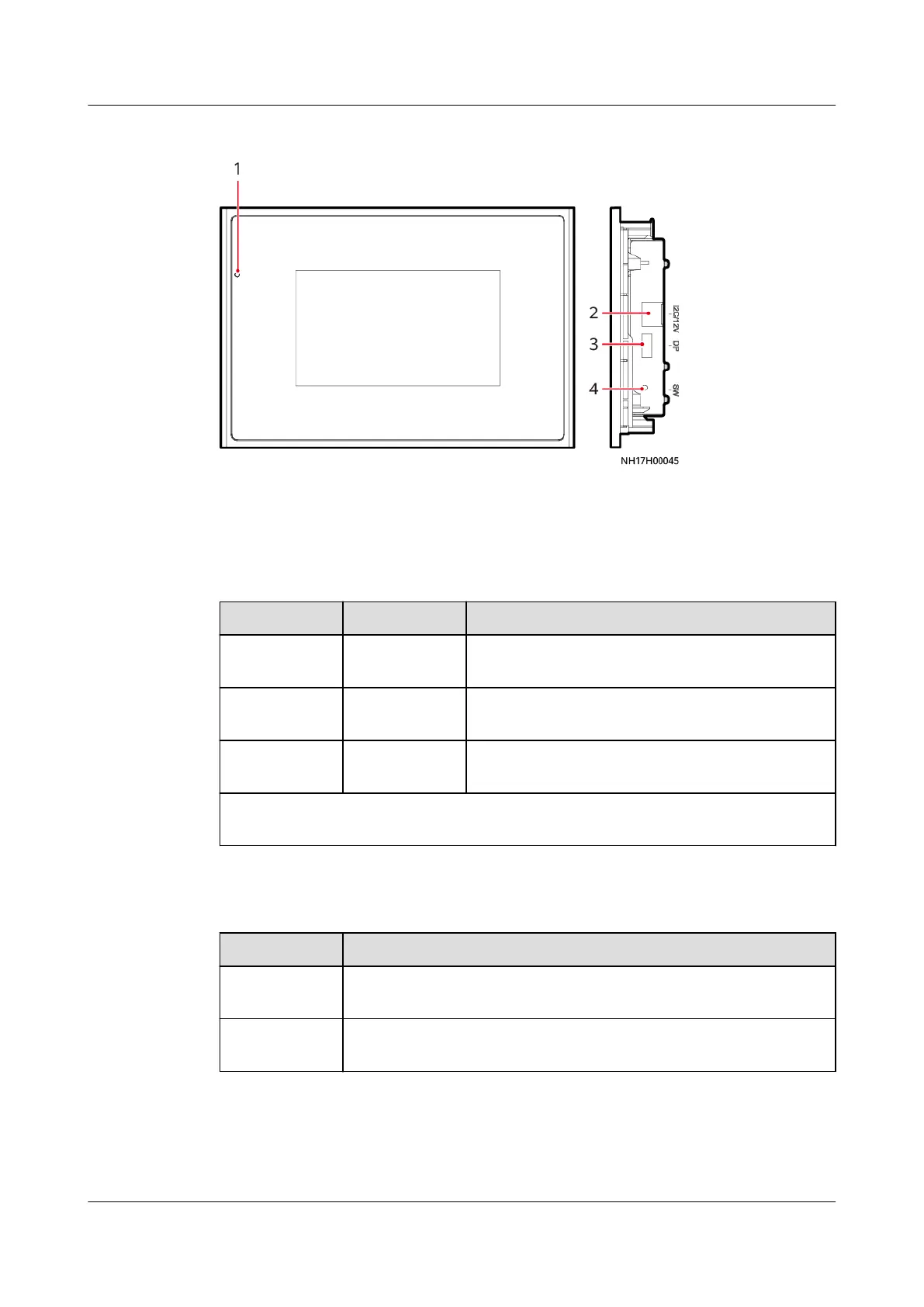

Figure 2-16 Display module
(1) Indicator (2) I2C/12V (reserved)
(3) DP port (display port), connected to the
main control module
(4) SW (reserved)
Table 2-4 Indicator and buzzer status description
Indicator
Buzzer Running Status
Green No buzzing The unit is operating properly, or there is a
warning.
Yellow Intermittent
buzzing
There is an unacknowledged major alarm.
Red Constant
buzzing
There is an unacknowledged critical alarm.
Note: In the preceding conditions, the indicator blinks at a frequency of 1 Hz,
that is, on for 0.5s and o for 0.5s.
Functions
Function
Description
Single unit
control
Each unit has an independent control system to ensure normal
and high-precision operation.
Operations Users can set parameters and query status on the 7-inch true-
color touchscreen.
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 2 Product Description
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 28
