Huawei NetCol8000-A045D - System Installation; Installation Requirements

Model BOM Number H1 (H2) x W x D1 (D2) (mm)
NetCol500-
A060
52273539 1107 (677) x 1094 x 1356 (1219)
52273539-005 1107 (655) x 1094 x 1356 (1219)
52273539-006 1156 (703) x 1094 x 1356 (1219)
NetCol500-
A080
52273541 1107 (677) x 1094 x 2186 (2047)
52273541-005 1107 (655) x 1094 x 2186 (2047)
NetCol500-
A120
52273755-002 1107 (655) x 2189 x 1356 (1219)
NetCol500-
A110
52274570 1770 x 1100 x 2250
NO TE
You can view the outdoor unit BOM number on the equipment barcode.
The NetCol500-A060, NetCol500-A080, and NetCol500-A120 use long round
mounting holes and must be secured by eight M8x80 stainless expansion bolts.
The NetCol500-A110 use round mounting holes and must be secured by six
M8x80 stainless expansion bolts.

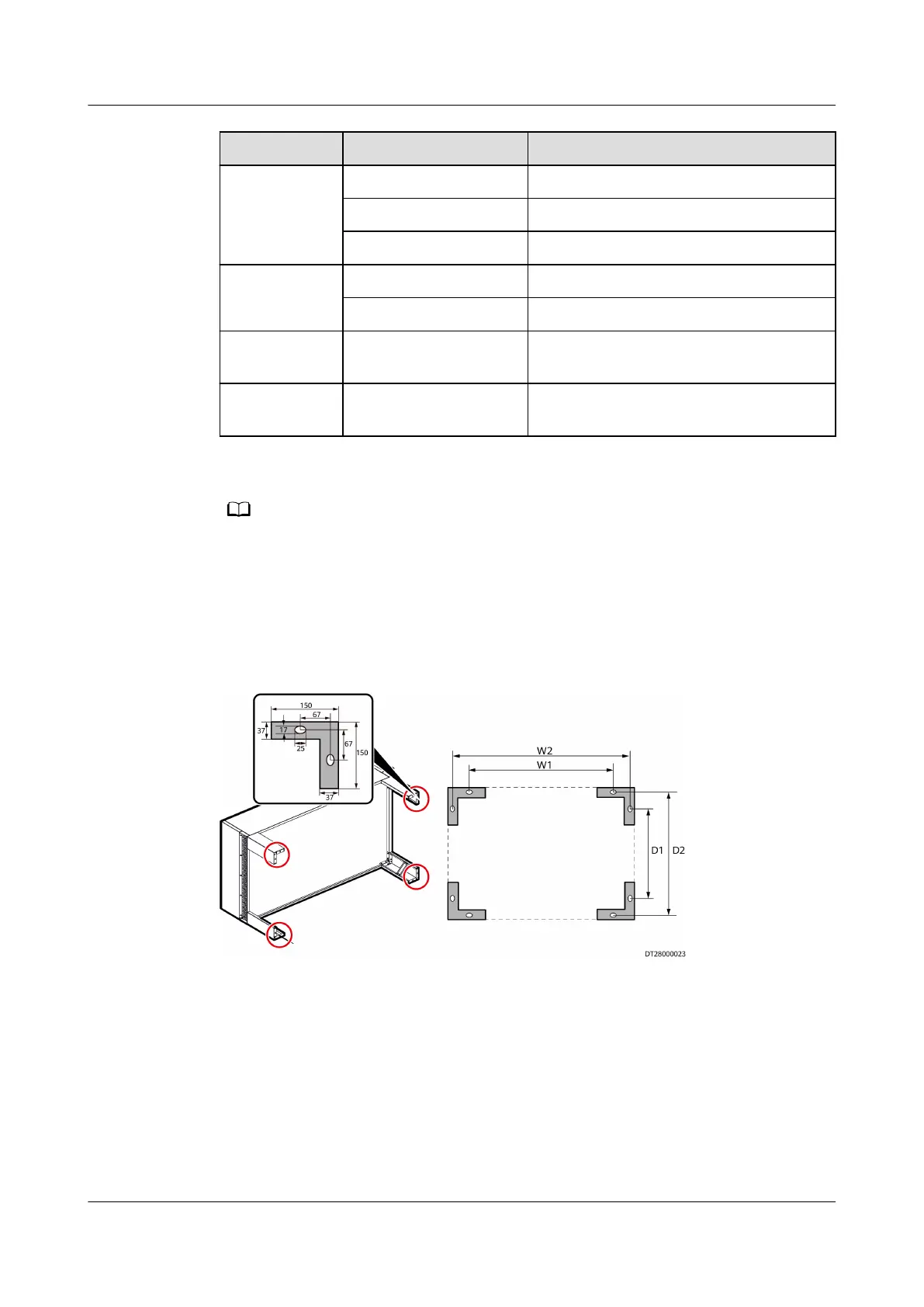

Figure 3-2 NetCol500-A060/A080/A120 hole dimensions (mm)
