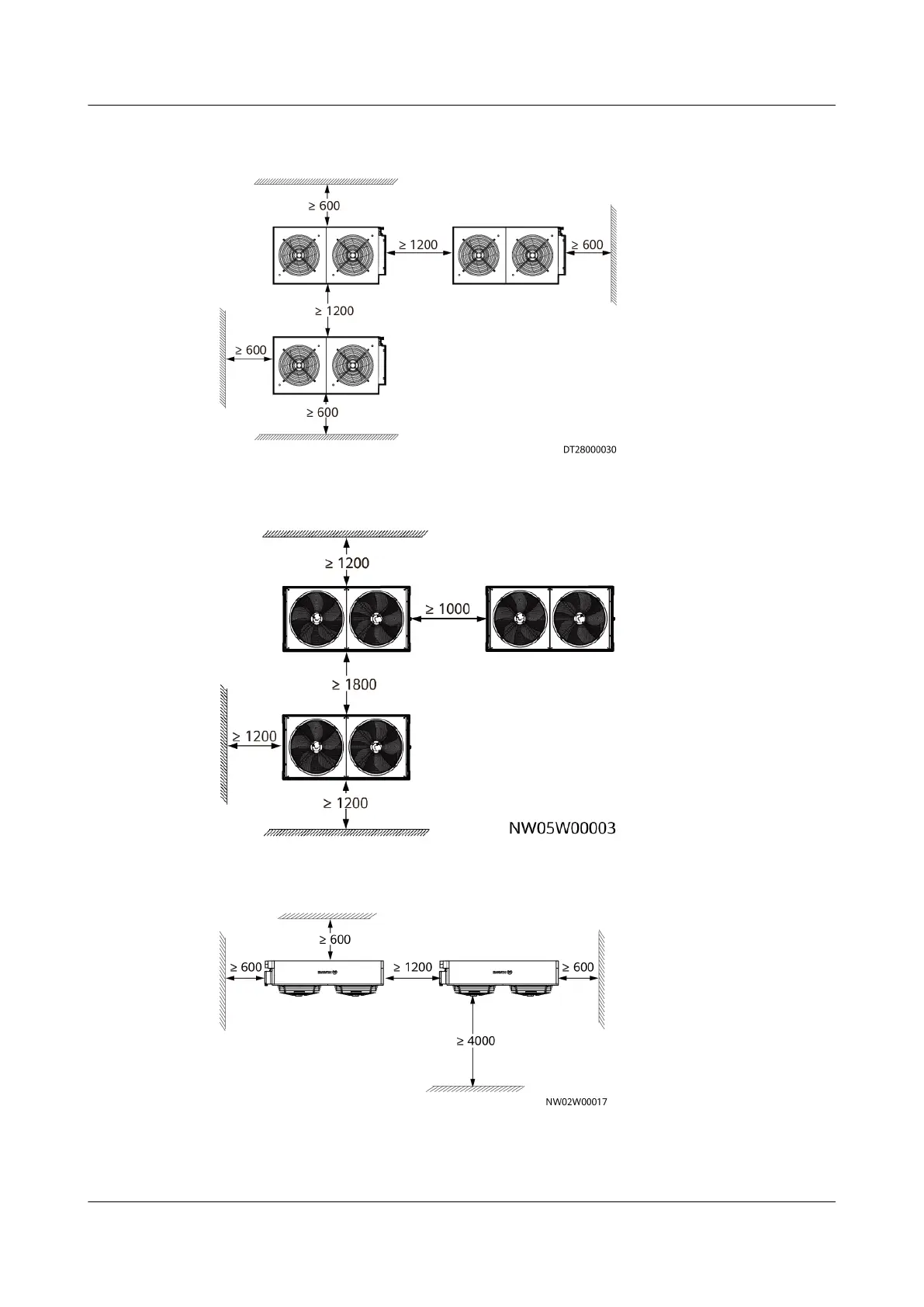

Figure 4-8 Space requirements for horizontal installation (for NetCol500-A080)
(unit: mm)
Figure 4-9 Space requirements for horizontal installation (for NetCol500-A110)
(unit: mm)
Figure 4-10 Top view of vertical installation space for the NetCol500-A080
without an air bae (unit: mm)
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 58
