3-4 ArcGlide THC Instruction Manual
OPERATION
2

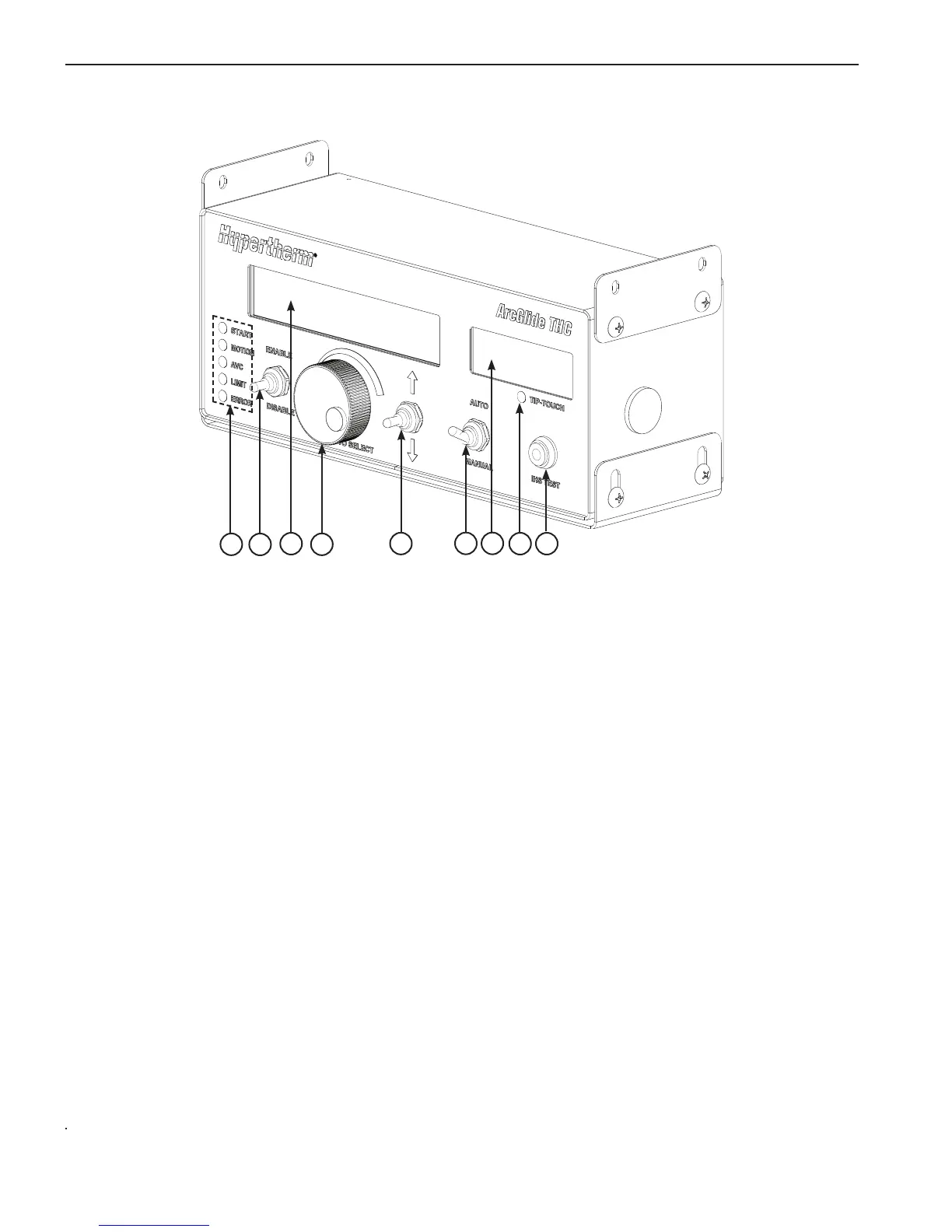

HMI
1
2 3
4 5
6 7
8 9
Item Control Description
1 LEDs These LEDs show the status of system operations.
2 Station enable and
disable switch
Press this switch up to enable the lifter for operation. Press the switch down to disable
the lifter before maintenance, to replace consumables, or to power OFF the lifter. In
HPR and HPR XD systems in which Remote On is installed on the plasma interface, this
switch can be used to power ON or OFF the plasma system.
3 Parameter window Displays setup and operating parameters, error and status messages. If the system
does not have a CNC connected to Hypernet, the operator can also make changes to
parameter values.
4 Scroll and selection
button
Allows the user to select, set, and view values for parameters in the parameter window.
Rotate the knob to scroll; press it to make a selection.
5 Lifter up and down
switch
Press this switch up or down to raise or lower the torch.
6 Auto or manual
mode selection
switch
Press this switch up or down to select automatic or manual mode.
7 Arc voltage window This window displays the actual arc voltage or OFF if the lifter is disabled.
8 Tip touch LED This LED illuminates when the torch makes ohmic contact with the workpiece.
9 IHS test button Press this button to test the IHS function of the lifter. With each successive press, the
torch alternates between transfer and retract positions.
