MAINTENANCE
ArcGlide PCBs
HMI processor (228581)
Test points
Number Signal
TP10 +2.5 VDC
TP33 +3.3 VDC
TP37 +5 VDC
TP38 Ground

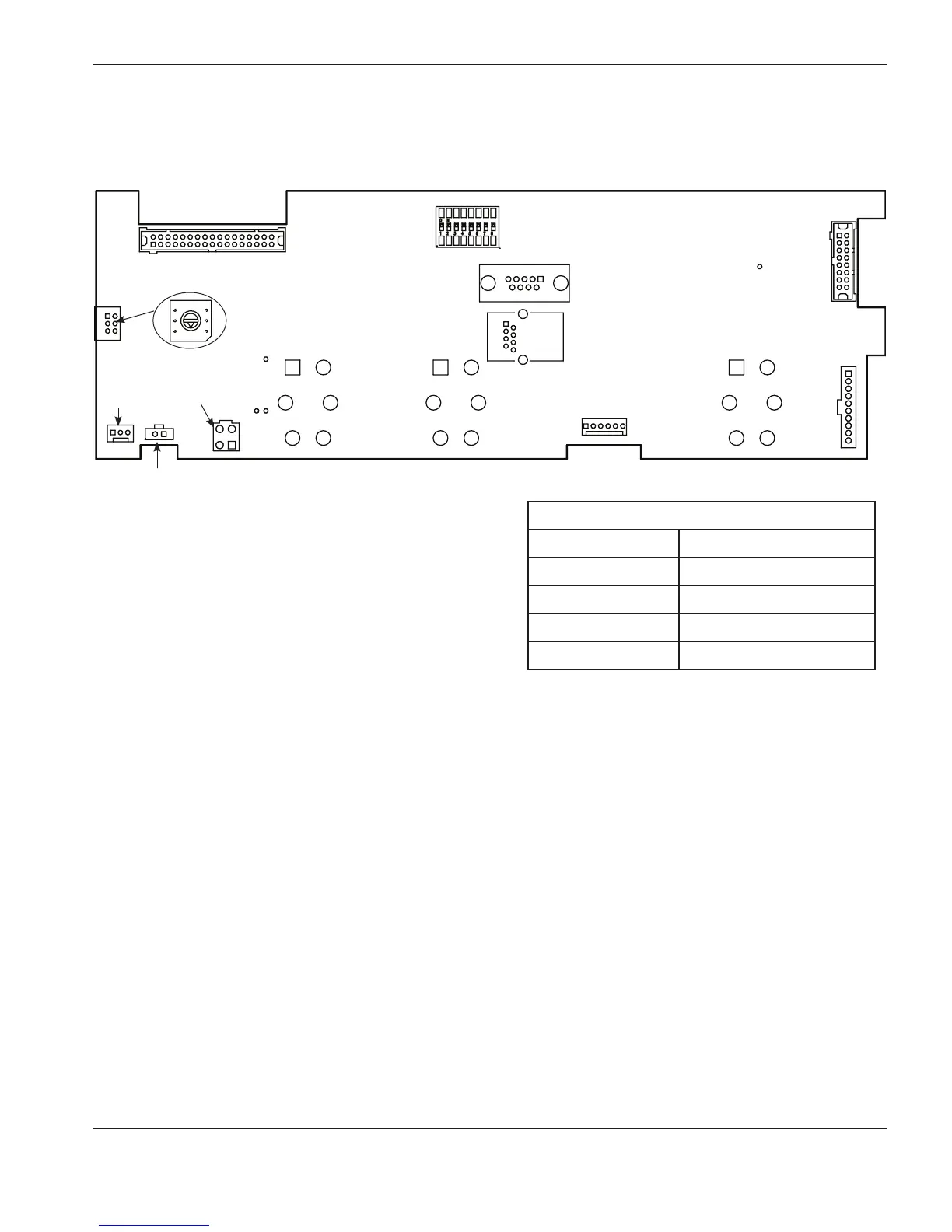

HMI Processor PCB
J3 Display
ribbon cable
J7 RJ45
Default settings = 1
J4 LCD character
module
J8 Front panel LEDs
J11 Rotary encoder input
J12 Power
input
J10
IHS Test
pushbutton
J9
Display
backlight
SW6 Unit address switch,
default setting = 1
SW2
UNIT ADDRESS
Note: In a Hypernet configuration, the Unit address
switch (SW6) on the HMI processor PCB must
have the same address as the Unit address
switch on the THC processor and the Hypernet
interface PCBs. The default setting is 1.
TP10
TP10
TP38
TP37
1
1
1
1
1
1
1
1
1
