Hypertherm ArcGlide Torch Height Control - System; Control module (090054)

ArcGlide THC Instruction Manual 1-5
SPECIFICATIONS
2
Specifications
System
Regulatory approvals CE, CSA
Fused input power (selectable)*
100 to 120 VAC/200 to 240 VAC, 2.6 A/1.5A,
50/60Hz, 1Phase,
Slow blow fuse 250 VAC, 5 A
Parallel digital input range +12 VDC to +24 VDC
Serial digital I/O +5 VDC (Plasma interface serial)
Maximum motor drive output 70 VDC, 6 A
Hypernet communication Shielded RJ-45 Cat-5e

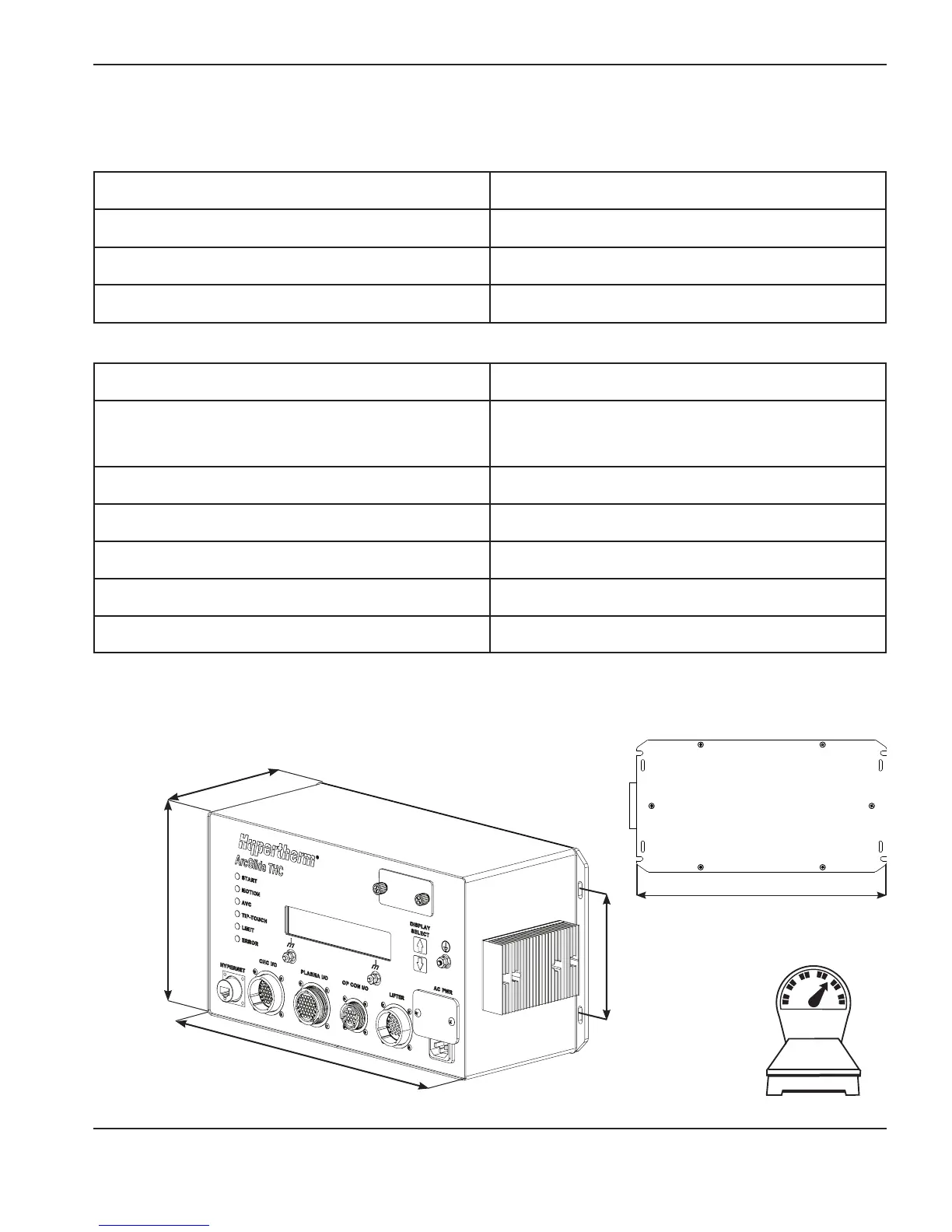

Control module
Control module (090054)
Input power 115 VAC or 230 VAC, 1 Phase, 50/60 Hz
Operating temperature -10º C to 40º C (14º F to 104º F)
Operating humidity 95% relative humidity
Warranty 2 years for electronics and lifter
358.65 mm
(14.12”)
157.23 mm
(6.19”)
206.25 mm
(8.12”)
127.00 mm
(5.00”)
7.26 kg
(16.00 lb)
* To prevent damage to equipment, use the input module switch on the front of the control module to select the input
voltage (115 V or 240 V) that will be used.
381.00 mm
(15.37”)
