3-14 ArcGlide THC Instruction Manual
OPERATION
2
HMI Parameter Value
<back> Return to Main display
Errors The latest and currently active error condition. Normal errors are cleared on the next start. Critical
errors must be corrected before the next start.
Normal Errors
NO ERRORS Ready to start.
ERR 1 FLASH SETUPS Checksum failed on stored setups in flash memory, the
THC is using default values.
ERR 2 MAX SPEED EXCEEDED A speed regulation problem occurred — the value for
Maximum Speed was exceeded.
ERR 3 LIFTER HOME TIMEOUT Lifter did not return to home position within 20 seconds.
ERR 4 PLATE CONTACT AT HOME Ohmic contact with the workpiece at home position —
an invalid condition.
ERR 5 HOME LIM DURING OPR The Lifter reached the Home limit during auto operation.
ERR 6 LOWER LIM DURING OPR The lifter reached the Lower limit during auto operation.

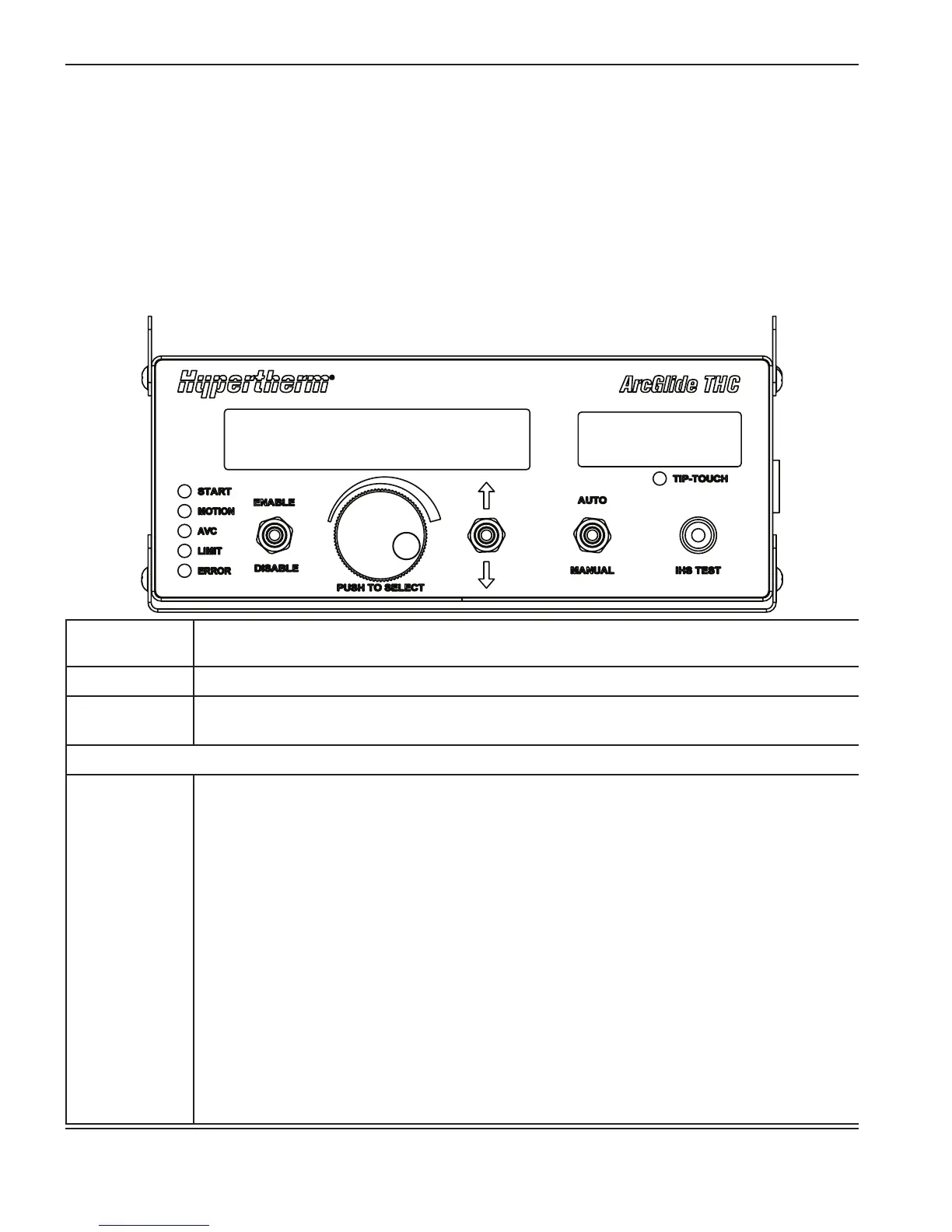

Diagnostics screen
The Diagnostics display on the HMI provides information about errors that the HMI receives from the control module, the
control state of the cutting system, as well as whether Hypernet is enabled and diagnostics for the switches on the front
panel of the HMI. The following table provides details for the parameters that can appear on the Diagnostics display.
For detailed information about resolving errors, see the Maintenance section.
Diagnostics
<back>
NO ERRORS
Control State 0
To Next Page
