2-38 ArcGlide THC Instruction Manual
INSTALLATION
Cables

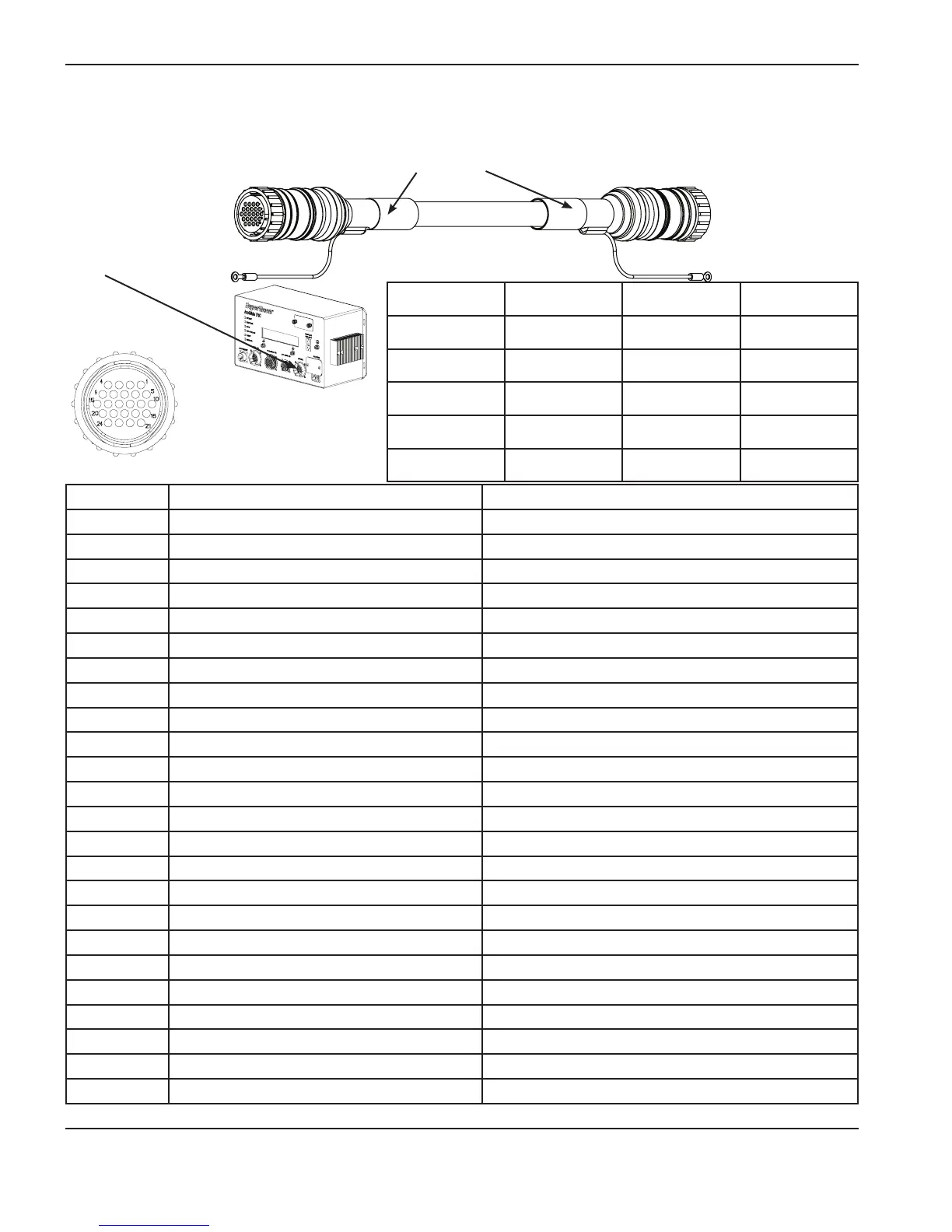

Lifter interface cable
Part number Length Part number Length
223219 3.0 m (10 ft) 223115 23.0 m (75 ft)
223220 6.0 m (20 ft) 223116 30.5 m (100 ft)
223120 7.5 m (25 ft) 223117 45.5 m (150 ft)
223221 10.5 m (35 ft) 223118 61.0 m (200 ft)
223007 15.0 m (50 ft)
Pin number* Color Signal name
1 Red (16 AWG) Motor +
2 Black (16 AWG) Motor –
3 Black (18 AWG) Brake –
4 Brown (22 AWG) Common –
5 Brown (18 AWG) Power +24 VDC
6 Gray (22 AWG) Ohmic contact sense common
7 White (22 AWG) Ohmic contact sense
8 Violet (22 AWG) Ohmic contact sense bias +12 VDC
9 Black (22 AWG) Encoder common
10 Red (22 AWG) Lifter station active
11 White/Blue (22 AWG) Encoder input B –
12 Blue (22 AWG) Encoder input B +
13 White/Yellow (22 AWG) Encoder input A –
14 Yellow (22 AWG) Encoder input A +
15 White/Black (22 AWG) Common –
16 White/Red (22 AWG) Change consumables switch+
17 Green (22 AWG) Lifter down switch +
18 Orange (22 AWG) Lifter up switch +
19 White/Violet (22 AWG) Breakaway switch+
20 White/Orange (22 AWG) Upper limit switch +
21 White/Green (22 AWG) Lower limit switch +
22 White/Gray (22 AWG) Not connected
23 White/Brown (22 AWG) Common –
24 Not connected
Red band
Connect one end to the
connector on the control
module with the red
circle.
Connect one end to
the top of the lifter.
* Pin numbers are the same on both ends of the cable.
