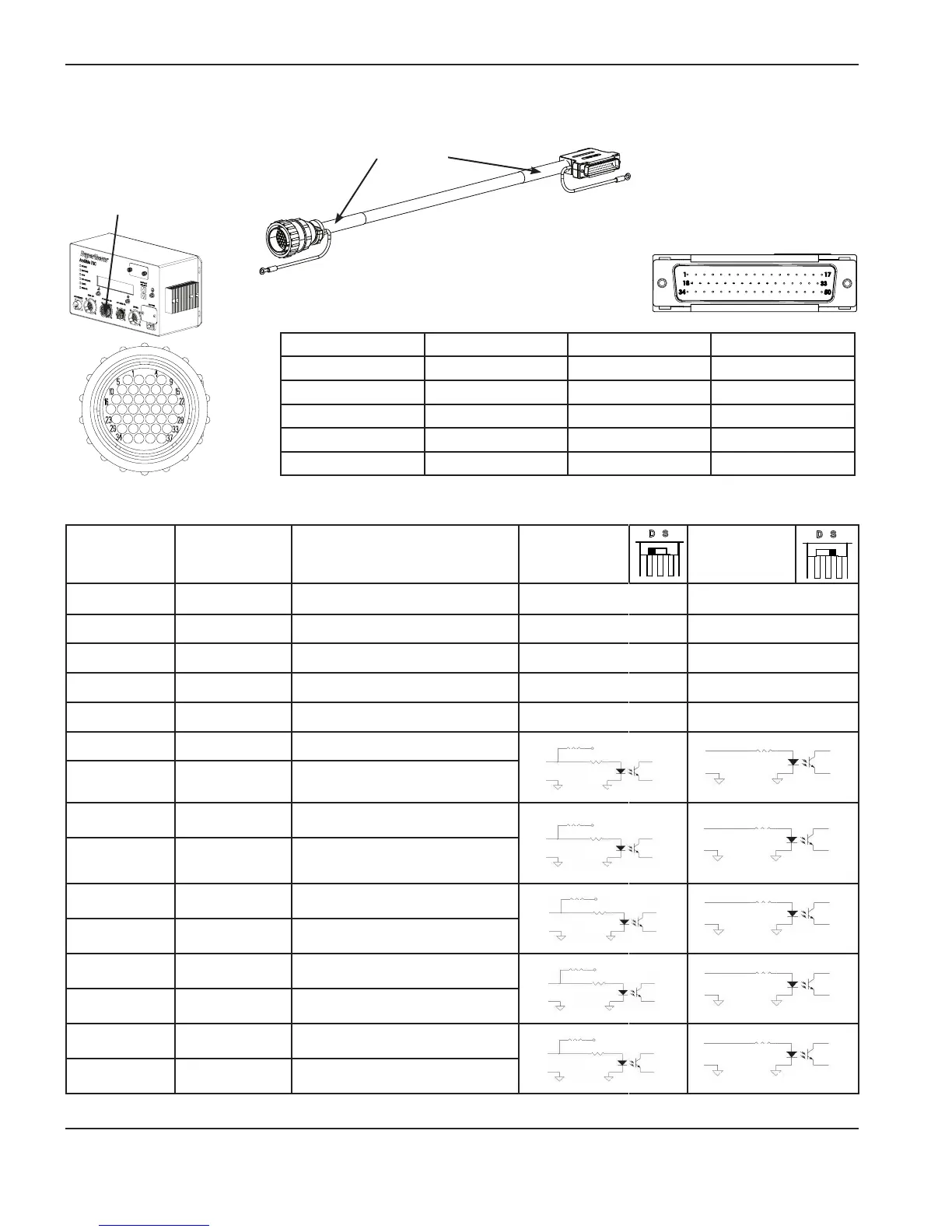

Hypertherm ArcGlide Torch Height Control User Manual

2-44 ArcGlide THC Instruction Manual
INSTALLATION
2
Part number Length Part number Length
223227 3.0 m (10 ft) 223103 23.0 m (75 ft)
223228 6.0 m (20 ft) 223104 30.5 m (100 ft)
223123 7.5 m (25 ft) 223105 45.5 m (150 ft)
223229 10.5 m (35 ft) 223106 61.0 m (200 ft)
223004 15.0 m (50 ft)
Plasma interface I/O cable
Blue band
Connect this end to
the port on the control
module with the blue
circle.
Connect this end to the
discrete plasma interface
at the plasma system
Pins 38 – 50 are not used.
Note: For more information about discrete plasma I/O signals, see ArcGlide discrete interface signals.
* Pin numbers are the same on both ends of the cable.
Pin number* Color Signal name
Dry contact
circuit
Sourced
circuit
1 Red RS422 Rx +
2 Black RS422 Rx -
3 White RS422 Tx +
4 Black RS422 Tx –
5 Green RS422 common
6 Black Motion input +
7 Blue Motion input –
8 Black Error input +
9 Yellow Error input –
10 Black Rampdown error input +
11 Brown Rampdown error input –
12 Black Not ready input +
13 Orange Not ready input –
14 Black Spare input +
15 White Spare input –
+
_
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+
_
3.9 K
+
_
3.9 K
+
_
3.9 K
