Hypertherm ArcGlide Torch Height Control User Manual

ArcGlide THC Instruction Manual 2-45
INSTALLATION
2

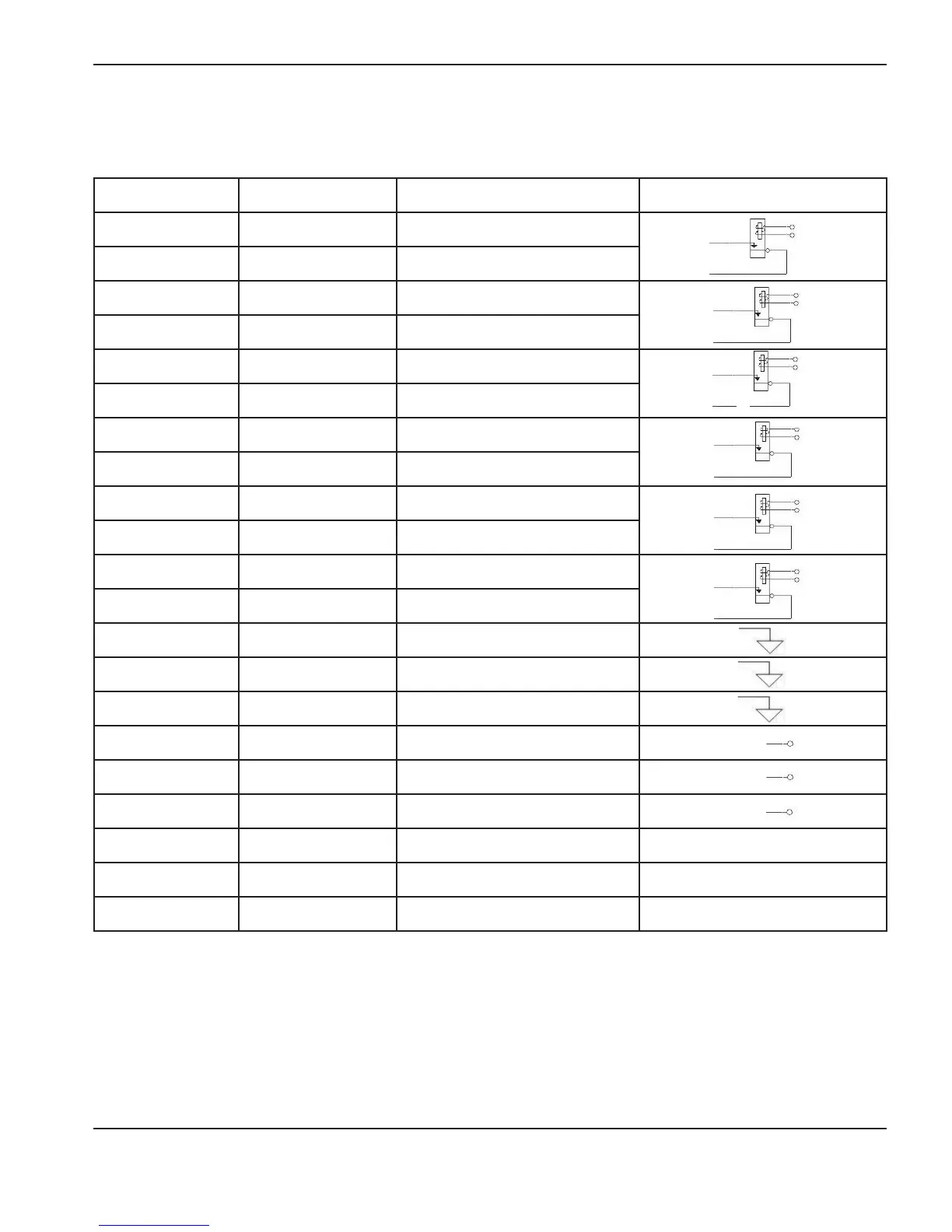

Pin number* Color Signal name Dry contact or sourced circuit
16 Red Corner output A
17 Green Corner output B
18 Red Pierce output A
19 Blue Pierce output B
20 Red Hold output A
21 Yellow Hold output B
22 Red Start output A
23 Brown Start output B
24 Red Spare output A
25 Orange Spare output B
26 Red Remote on output A
27 White Remote on output B
28 Green Common
29 Blue Common
30 Green Common
31 Yellow +24 VDC output
32 Green +24 VDC output
33 Brown +24 VDC output
34 Green 1/50 Arc voltage +
35 Orange
1/50 Arc voltage
–
36 and 37 Not connected
Note: All ArcGlide CNC inputs can be congured for dry contact closures or 12 – 24 V sourced inputs.
* Pin numbers are the same on both ends of the cable.
B
A
A
B
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
+24 V
+24 V
+24 V
