2-46 ArcGlide THC Instruction Manual
INSTALLATION

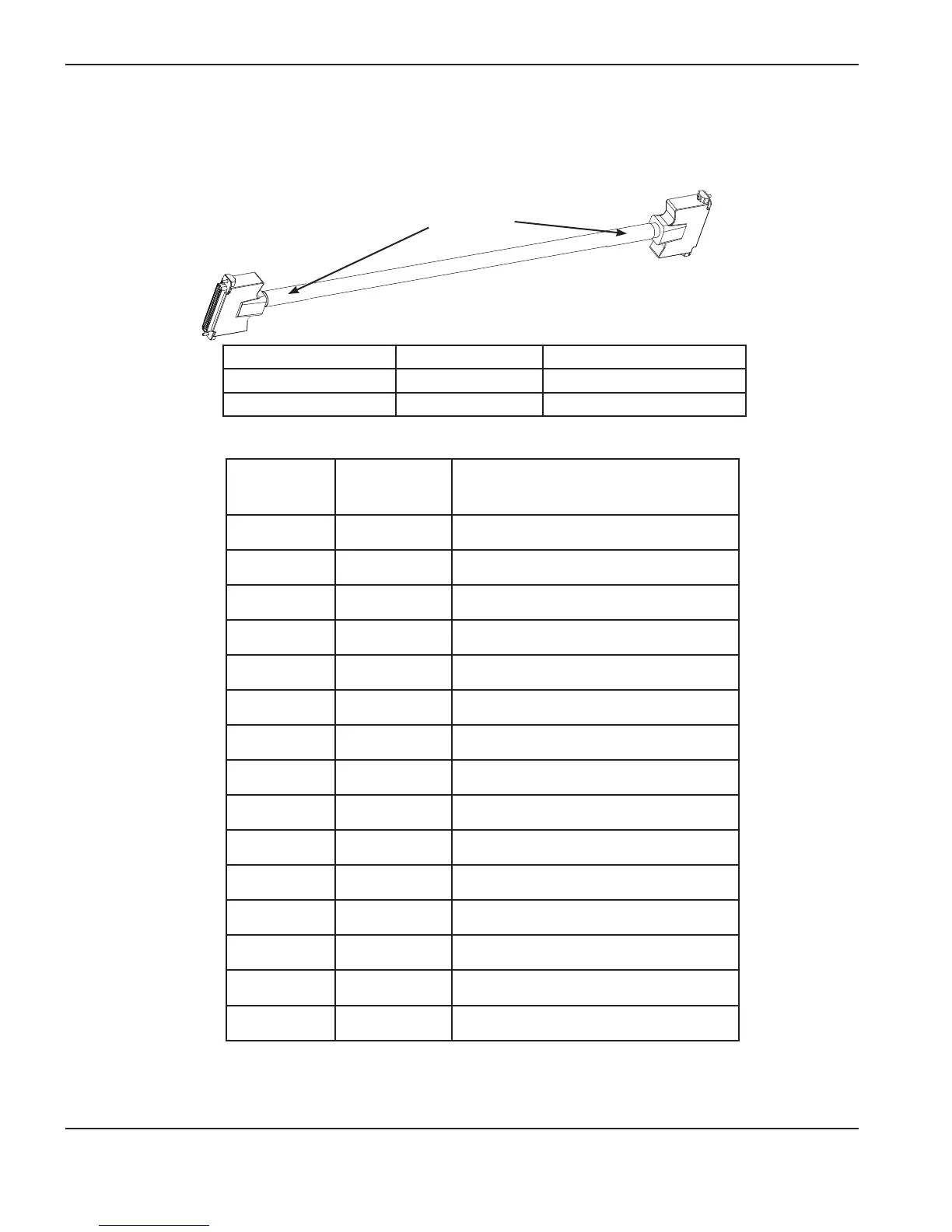

Non-serial plasma interface cable
This cable connects the ArcGlide plasma interface PCB and control board inside the plasma system. Use this cable only
when the CNC provides serial communication directly to the control board.
Part number Length Used in
223192 61 cm (2 ft) HPR130 XD, HPR260 XD
223193 2.3 m (7.5 ft) HPR400 XD
Pin number Color Signal name
1 Not connected
2 Not connected
3 Not connected
4 Not connected
5 Not connected
6 Black Motion input +
7 Blue Motion input –
8 Black Error input +
9 Yellow Error input –
10 Black Rampdown error input +
11 Brown Rampdown error input –
12 Black Not ready input +
13 Orange Not ready input –
14 Black Spare input +
15 White Spare input –
red heatshrink
2
