Hypertherm ArcGlide Torch Height Control User Manual

1-8 ArcGlide THC Instruction Manual
SPECIFICATIONS
2
Discrete plasma interface (090052)
This plasma interface is required for configurations that use discrete communication.
Electrical
Input power 24 V (AC or DC)
Parallel digital I/O +12 VDC to +24 VDC
Serial digital I/O 5 VDC
Voltage divider ratio 50:1 Arc voltage

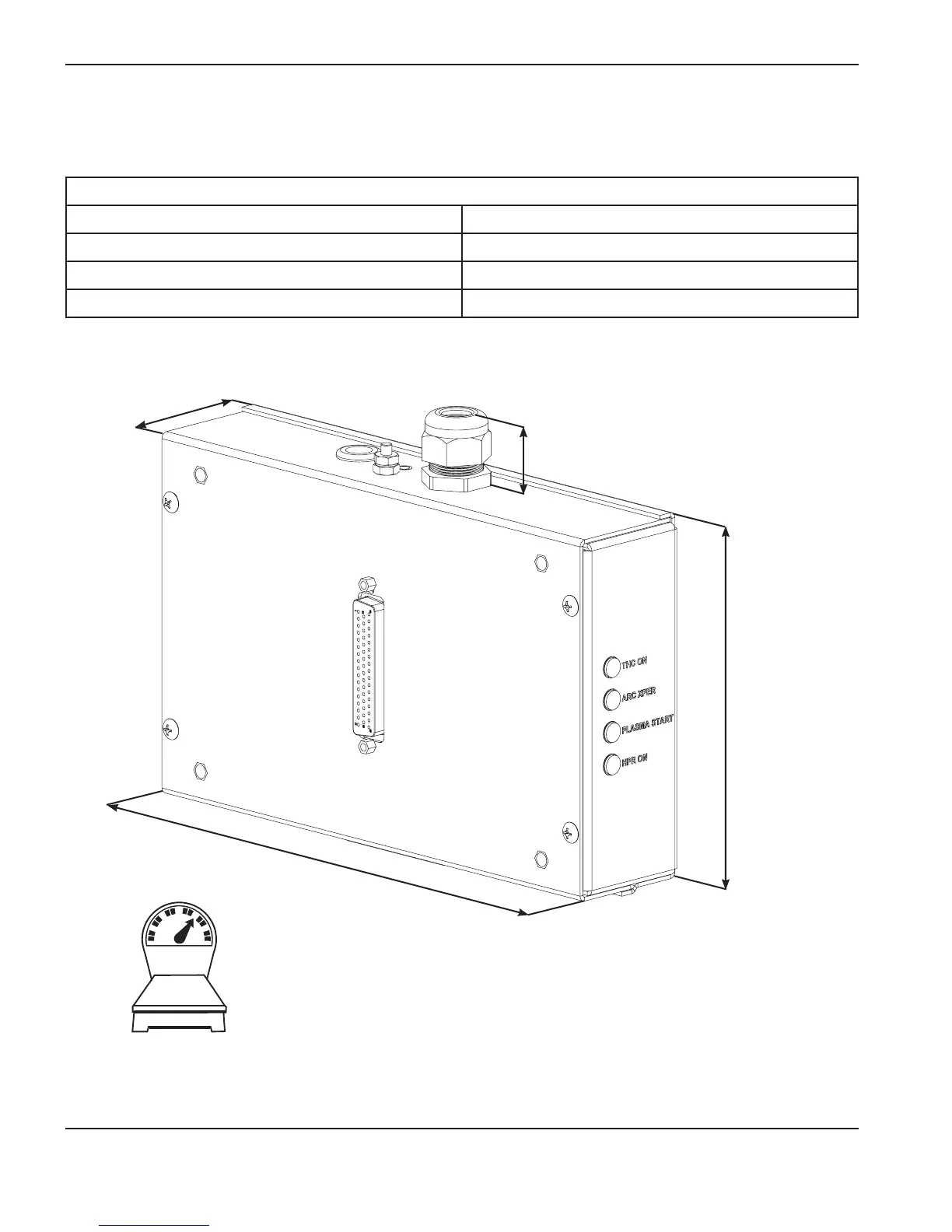

Discrete plasma interface
50.80 mm
(2.00”)
145.29 mm
(5.72”)
27.69 mm
(1.09”)
0.68 kg
(1.5 lb)
127.00 mm
5.00”

Hypertherm ArcGlide Torch Height Control Specifications

General

Brand	Hypertherm
Model	ArcGlide Torch Height Control
Category	Cutter
Language	English
