ArcGlide THC Instruction Manual 2-13
Configuration examples

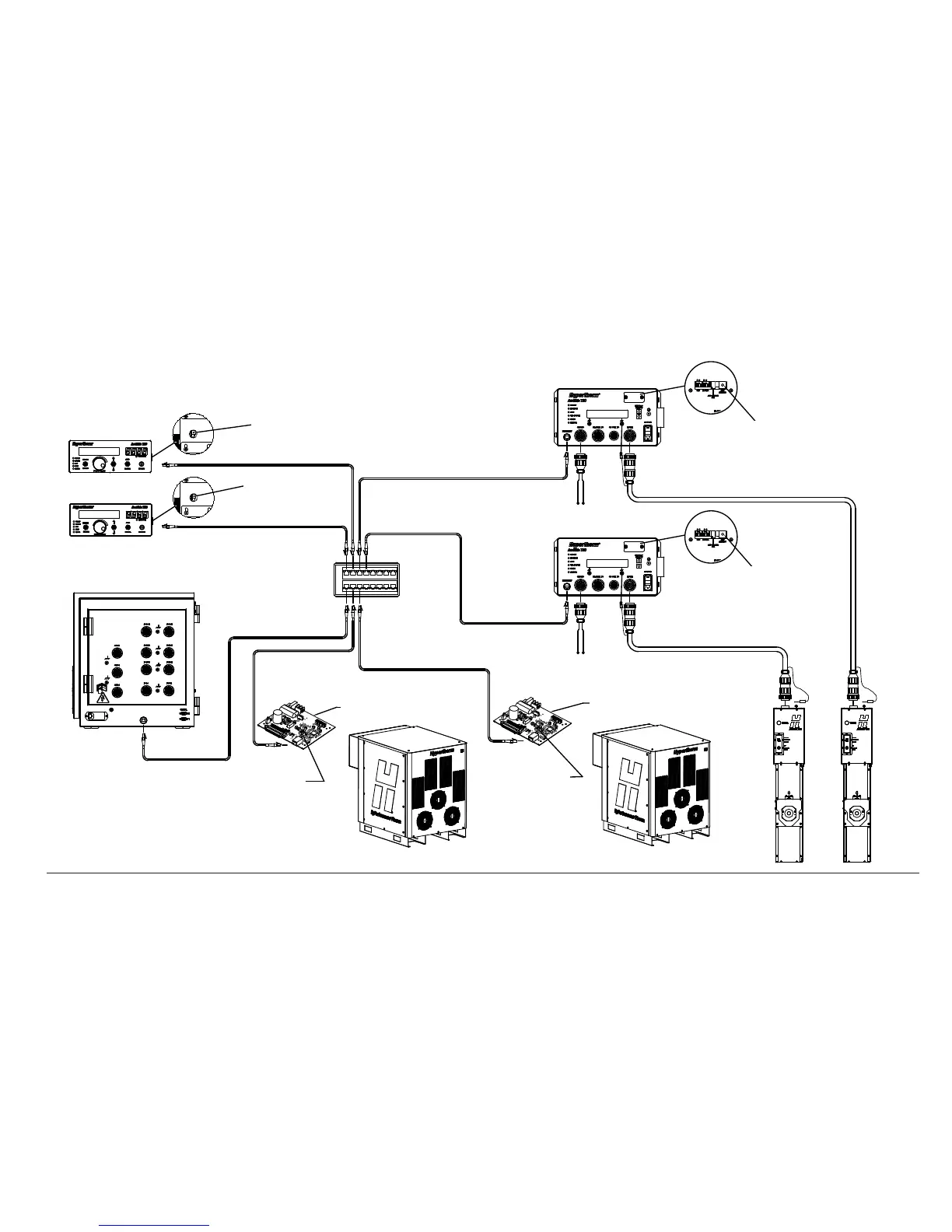

Multiple ArcGlide THCs with Hypernet connection to an EDGE Pro CNC and HPR or HPRXD plasma system
HYPERNET
(Optional) HMI
(Optional) HMI
EDGE Pro CNC
Rotary address
switch, set to 2
Rotary address
switch, set to 1
Shielded Ethernet cable, up to 61 m (200 ft)
5-, 8-, or 16-port industrial
Ethernet switch
Hypernet plasma interface
(141161), installed in plasma
system (below)
Rotary address
switch set to 1
HPR130, HPR260, HPR130XD,
HPR260XD, HPR400XD with
a built-in Ethernet adapter or
optional Ethernet kit.
Rotary address
switch set to 1
ArcGlide control module
Lifter interface cable
Rotary address
switch set to 2
ArcGlide control module
Interlock
ArcGlide
lifters
Rotary address
switch set to 2
Lifter interface cable
Hypernet plasma interface
(141161) installed in plasma
system (below)
Interlock
2
