ArcGlide THC Instruction Manual 2-25
INSTALLATION
Install the lifter
17.8 mm (.7”)
114.3 mm
4.5”
44.45 mm (1.75”)
6.7 mm
(0.266 in.)
diameter
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)
44.45 mm (1.75”)

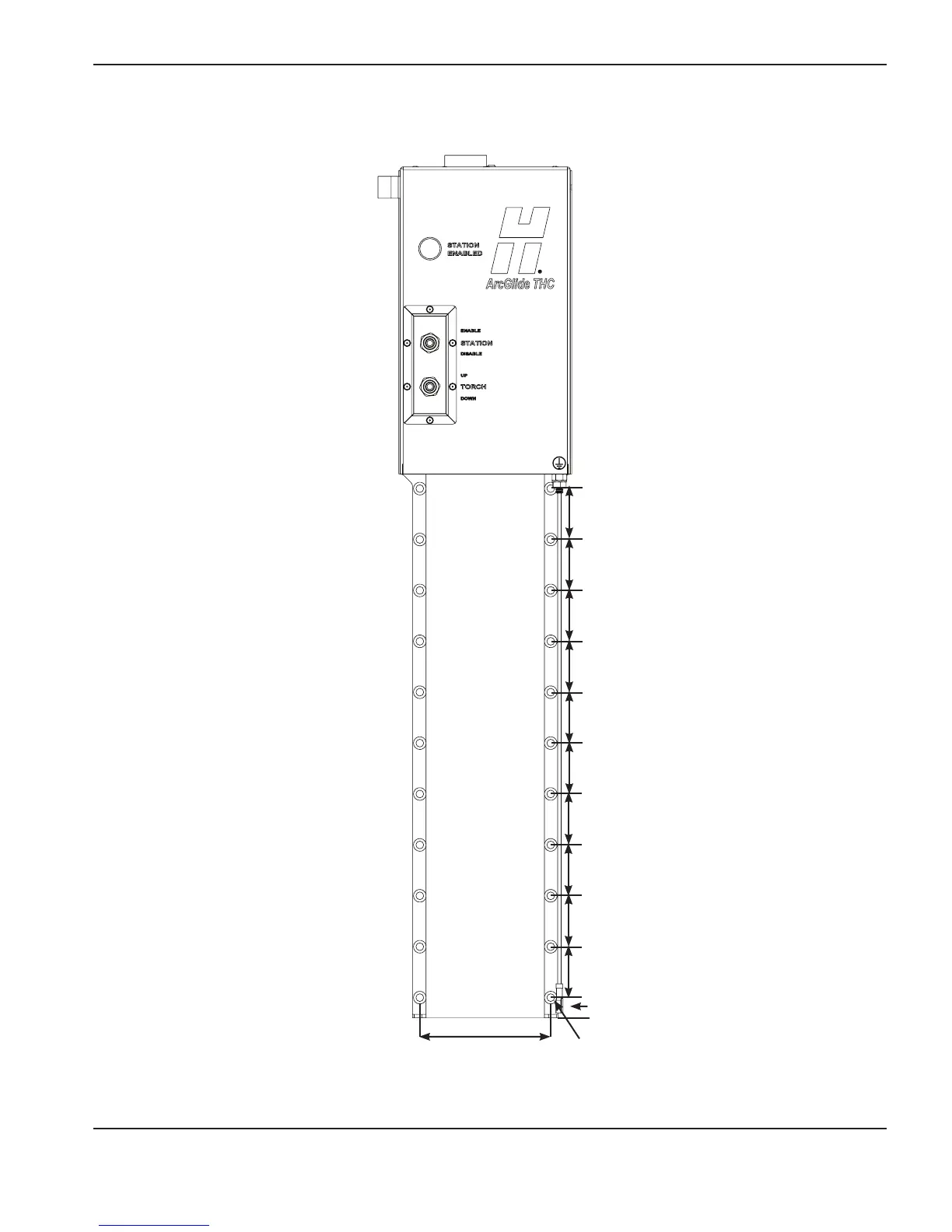

Lifter mounting dimensions
